Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual24 · Air conditioning
24 · Heating & A/C

Refit

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs › Refit
Air conditioningRefit
Diagram showing resonator and battery tray with callout numbers 4, 5, 6

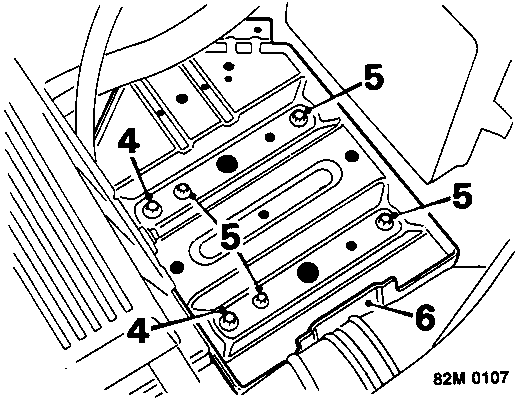

  1. 1.4 models: Remove 2 bolts securing resonator to battery tray.
  2. Remove 4 bolts securing battery tray.
  3. Remove battery tray.
Diagram showing air intake grille with callout numbers 7, 8, 9

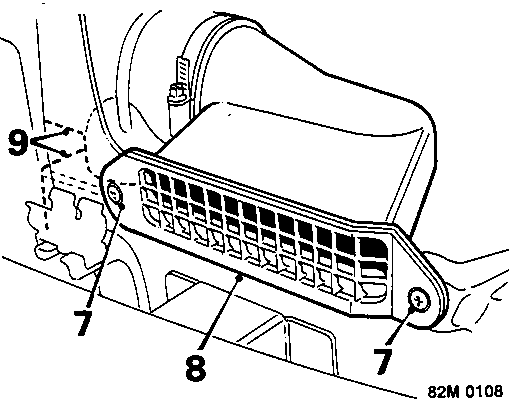

  1. Remove 2 screws securing air intake grille to front panel.
  2. Remove air intake grille.
  3. 1.4 models: Release air intake duct from resonator and move resonator aside.
Diagram showing receiver drier and pipes with callout numbers 10, 11, 12, 13, 14

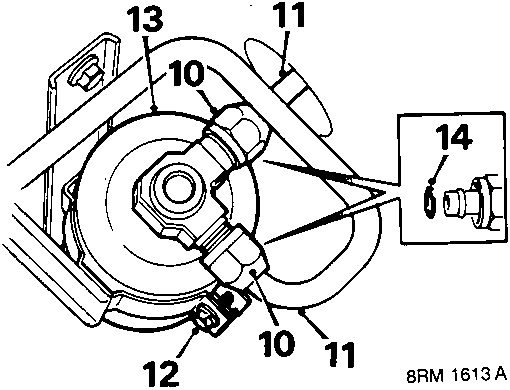

  1. Slacken pipe unions to receiver drier.
  2. Release pipes from receiver drier.
  3. Slacken clamp bolt securing receiver drier.
  4. Release receiver drier from clamp.
  5. Remove receiver drier.
  6. Remove 'O' rings from pipes.
  7. Cap pipes and discard receiver drier.

Refit

  1. Clean pipes and mating faces.
  2. Lubricate 'O' rings with refrigerant oil.
  3. Fit 'O' rings to pipes.
  4. Remove sealing plugs and position new receiver drier to clamp.
  5. Align unit to pipes.
  6. Remove caps from pipes and receiver drier.

CAUTION: Do not remove plugs from new receiver drier until immediately before assembly. If no plugs are fitted, reject unit.

  1. Fit pipes to receiver drier.
  2. Tighten pipe unions to 17 Nm.
  3. Tighten receiver drier clamp bolt.
  4. 1.4 models: Position resonator and secure air intake duct to resonator.
  5. Position air intake duct to front body panel.
  6. Fit air intake grille.
  7. Fit and tighten air intake grille screws.
  8. Fit battery tray.
  9. 1.4 models: Align resonator to battery tray, fit and tighten bolts.
  10. Fit and tighten bolts securing battery tray.
  11. Fit battery.
  12. Fit L.H. headlamp, see ELECTRICAL – Repairs.
  13. Recharge air conditioning system, see Adjustments.

RECEIVER DRIER – 1.6

Service Repair No. 82.17.03

Remove

  1. Remove L.H. headlamp, see ELECTRICAL – Repairs.
  2. Recover refrigerant from air conditioning system, see Adjustments.
Diagram showing power steering reservoir with callout number 3

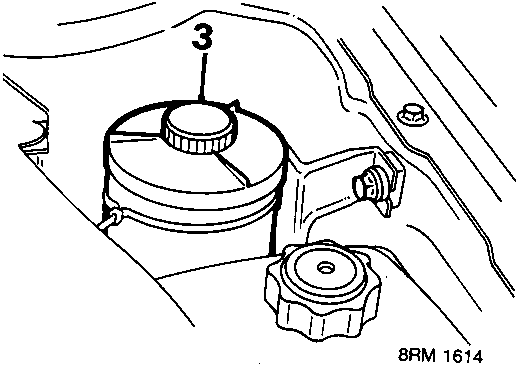

  1. Release power steering reservoir from its mounting bracket to give movement in air conditioning pipe.
