Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual12 · Cooling system
12 · Engine

Remove (page 2 of 2)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs
Cooling systemRemove · page 2 of 2

Service Repair No. 26.50.01

Remove.

  1. Drain cooling system, see MAINTENANCE.
Illustrates right-angle bracket for chassis mounting

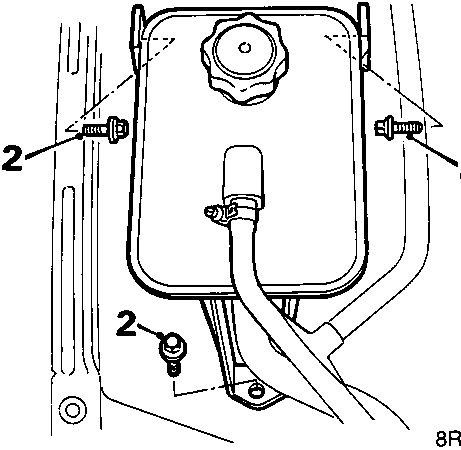

Diagram showing coolant expansion tank mounted to wing valance with three bolts labeled 2 and a drain plug labeled 2 at the bottom.
  1. Remove 3 bolts coolant expansion tank to wing valance and positon tank aside.
  2. Fit protective block and support engine on jack.

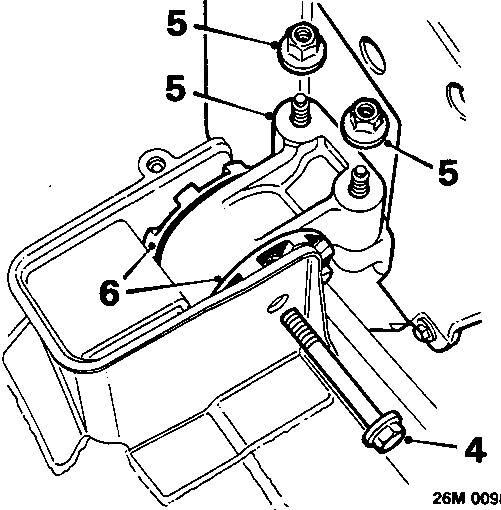

Diagram showing R.H. engine mounting bracket with two nuts labeled 5, a bolt labeled 4, and rubber washers labeled 6 being removed.
  1. Remove bolt R.H. engine mounting to body.
  2. Remove 2 nuts R.H. engine mounting to engine bracket and remove engine mounting.
  3. Remove 2 rubber washers from mounting.
  4. Release timing belt from gears, see MAINTENANCE.

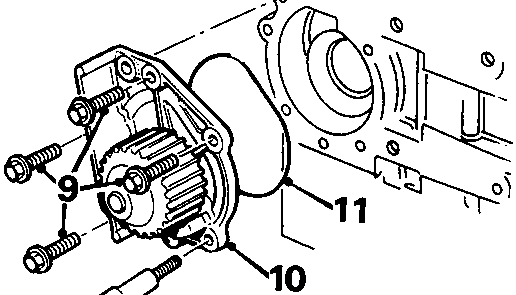

Diagram showing coolant pump assembly with rear cover, dowels, bolts labeled 9, a pillar bolt labeled 8, and an 'O' ring labeled 11.
  1. Remove bolt securing rear cover to coolant pump.
  2. Remove 4 bolts and pillar bolt securing coolant pump.
  3. Remove coolant pump from dowels and rear cover.
  4. Remove 'O' ring from pump, discard 'O' ring.

Refit

  1. Clean pump and mating face, dowel and dowel hole.
  2. Fit new 'O' ring to coolant pump.
  3. Fit coolant pump to cylinder block, tighten bolts to 10 Nm.
  4. Clean camshaft gears and coolant pump gear.
  5. Fit and tension timing belt, see MAINTENANCE.
  6. Fit timing belt upper cover.
  7. Fit rubber washers to R.H. engine mounting and fit mounting to engine bracket, tighten nuts to 100 Nm.
  8. Lower engine to align mounting to body and fit and tighten mounting bolt to 80 Nm.
  9. Remove jack from under engine.
  10. Fit coolant expansion tank to wing valance, tighten bolts to 5 Nm.
  11. Refill cooling system, see MAINTENANCE.
