Engine 2.0 T16Remove · page 2 of 2

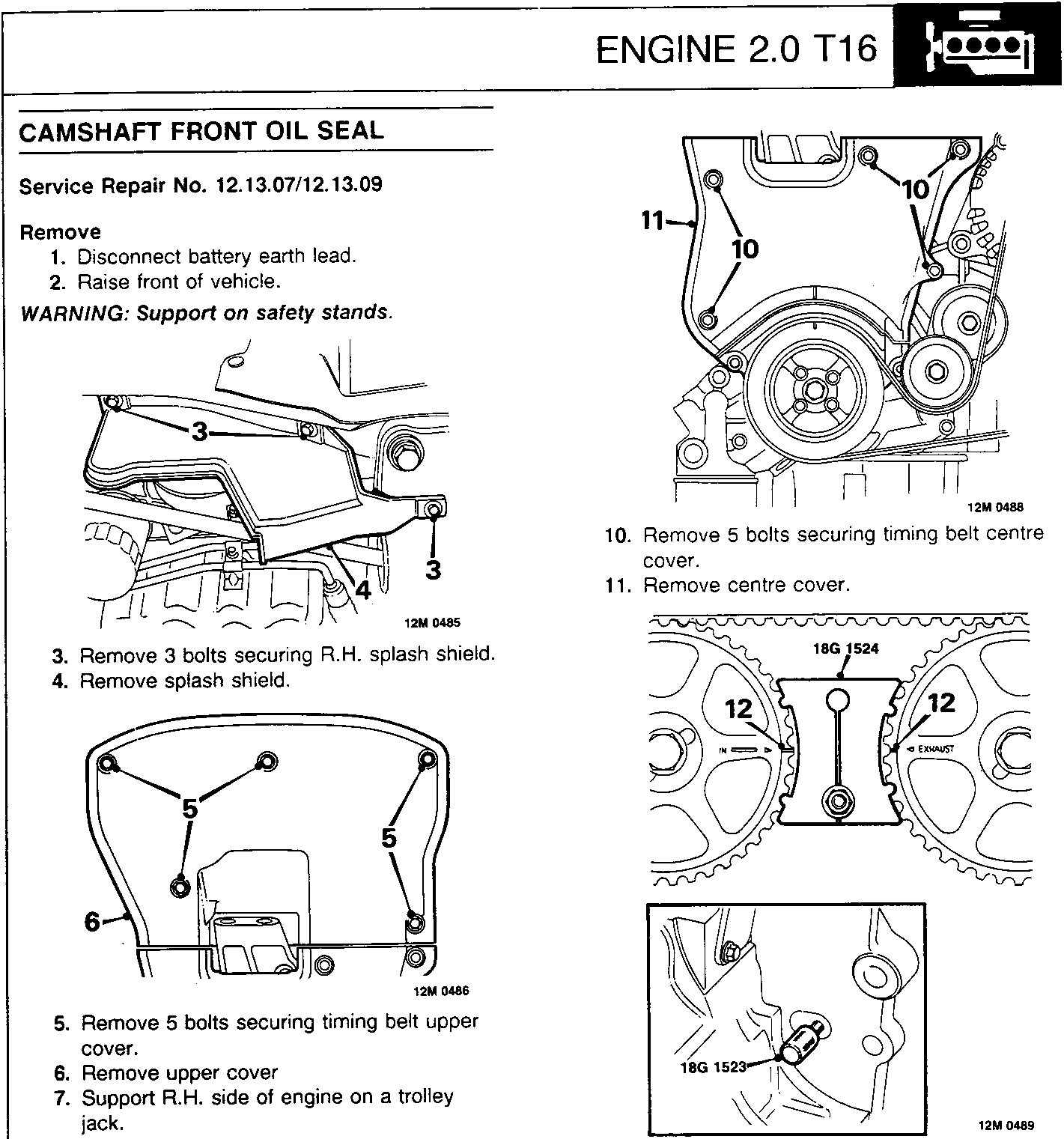

Service Repair No. 12.13.07/12.13.09

Remove

  1. Disconnect battery earth lead.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

Diagram showing removal of bolts securing R.H. splash shield, labeled 3 and 4.
  1. Remove 3 bolts securing R.H. splash shield.
  2. Remove splash shield.
Diagram showing removal of bolts securing timing belt upper cover, labeled 5, and the upper cover itself, labeled 6.
  1. Remove 5 bolts securing timing belt upper cover.
  2. Remove upper cover
  3. Support R.H. side of engine on a trolley jack.

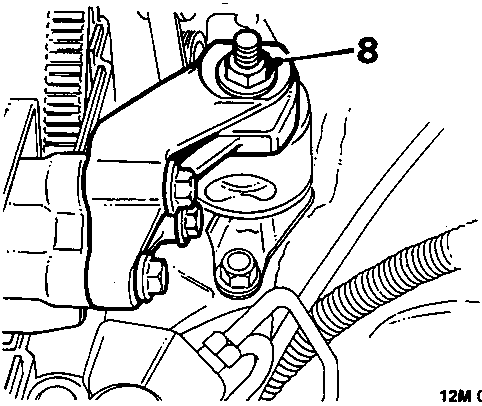

Diagram showing removal of nut from centre bolt in engine R.H. mounting, labeled 8.
  1. Remove nut from centre bolt in engine R.H. mounting.
  2. Raise R.H. side of engine.
Diagram showing removal of bolts securing timing belt centre cover, labeled 10, and the centre cover itself, labeled 11.
  1. Remove 5 bolts securing timing belt centre cover.
  2. Remove centre cover.
Diagram showing camshaft timing marks alignment with tool 18G 1524 fitted between gears, labeled 12. Markings indicate IN and EXHAUST sides.
  1. Rotate engine anti - clockwise to align camshaft timing marks.
  2. Fit tool 18G 1523 to lock flywheel.
  3. Fit tool 18G 1524 to lock camshaft gears.
