Replace side airbag sensor - L08

Make

Vauxhall

Model

Astra H

Section

Airbag › Repair Instructions › Replace side airbag sensor - L08

Body EquipmentReplace side airbag sensor - L08

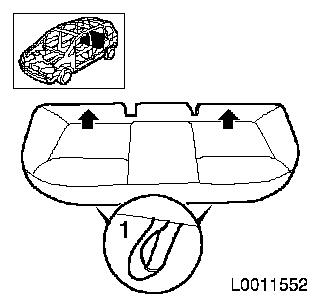

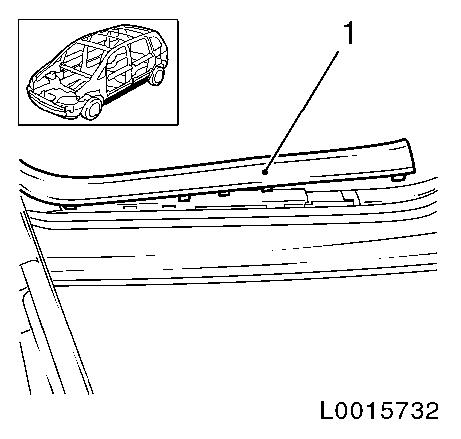

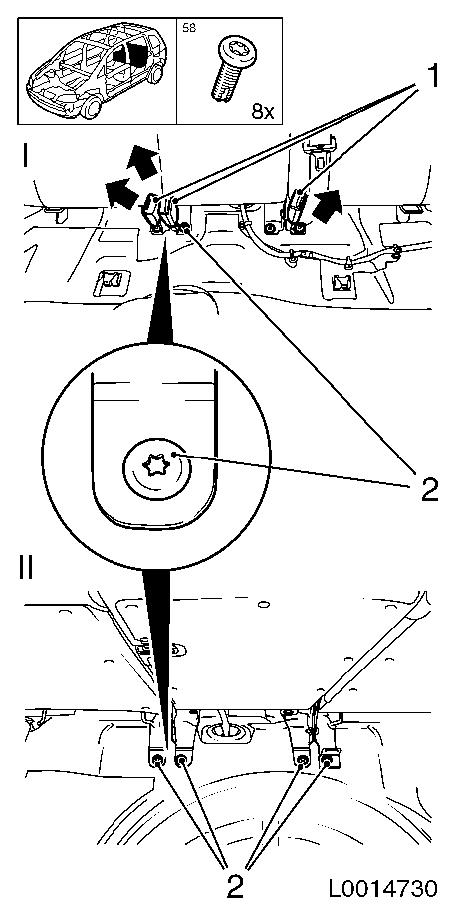

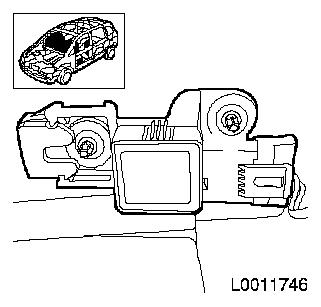

Replace side airbag sensor - L08   Remove 1.   Disconnect battery 2.   Capacitor discharge waiting time 1 min. 3.   Move front seat as far forward as possible 4.   Remove bench seat •   Unlock 2x brackets (1) front •   Hang off 2x bench seat from rear bracket – Push seat simultaneously backwards and upward 5.   Detach rear seat backrest (l) •   Unscrew 4x bolts (2) at the front – Remove 3x belt buckles (1) •   Fold down rear seat backrest (II) •   Unscrew 4x rear bolts (2) 6.   Remove rear seat backrest Note:   2nd mechanic required! 7.   Remove sill inner panelling (1) •   Unclip 5x clip 8.   Remove rear quarter panel front inner panelling •   Unscrew lower belt fastening (3) – Remove lower belt shackle (4) – Remove belt with striker – Remove belt striker guide bushing (5) from rear quarter panel front •   Remove rear quarter panel cover cap (2) – Unscrew bolt •   Unscrew bolt (6) from rear seat backrest •   Unscrew bolt (1) from upper B-pillar •   Unclip front rear quarter panel – Unclip 8x clips (7) 9.   Side airbag sensor, replace •   Unscrew 2x bolt •   Release and disconnect wiring harness plug •   Remove side airbag sensor   Install 10.   Install side airbag sensor •   Insert side airbag sensor •   Tighten 2x bolts •   Connect and latch wiring harness plug 11.   Install rear quarter panel front inner panelling •   Clip in 8x front quarter panel clips •   Tighten bolt on upper B-pillar •   Tighten bolt to rear seat backrest – Tighten bolt on lower B-pillar – Install rear quarter panel cover cap front – Install belt striker guide bushing to rear quarter panel front – Install belt with striker – Install lower belt striker •   Tighten lower belt fastening 12.   Install sill inner panelling •   Clip in 5x clips 13.   Insert rear seat backrest Note:   2nd mechanic required! 14.   Install rear seat backrest •   Guide in and position rear seat backrest with guide pins right and left in rear quarter panel •   Tighten 4x rear bolts •   Fold down rear seat backrest •   Insert 3x belt buckles – Tighten 4x front bolts 15.   Install bench seat •   Hang up 2x seats in the rear bracket – Push seat simultaneously backwards and down •   Bolt 2x brackets front 16.   Connect battery 17.   Program volatile memories 18.   Perform readiness check •   After ignition ON, the airbag system readiness indicator illuminates for 4 seconds and then goes out
