Connector i (page 2 of 2)
- Make
- Alfa Romeo
- Model
- 145/146 Electrical System Diagnosis Manual, Volume 3
- Year
- 1994–2001
- Section
- Fusebox
145 electrical system diagnosisConnector i · page 2 of 2

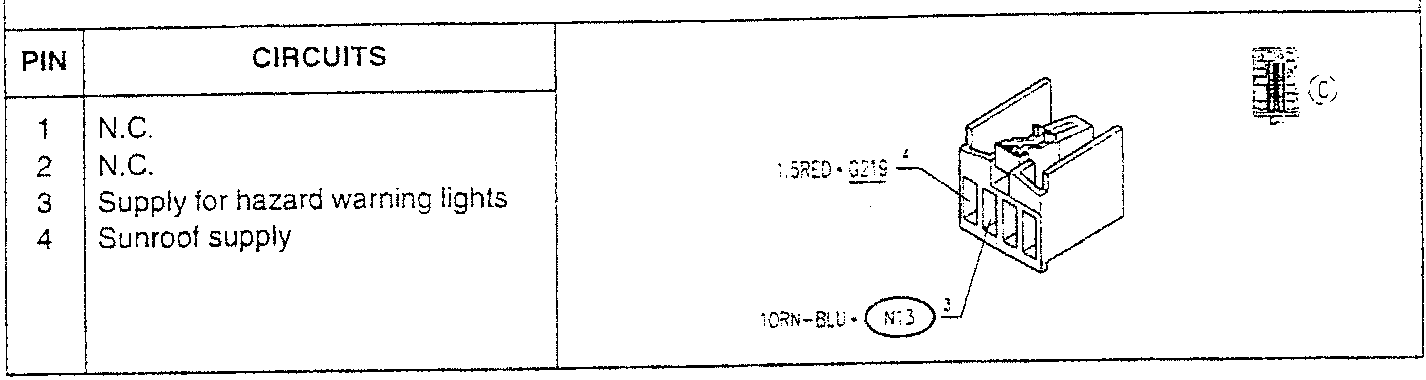

| PIN | CIRCUITS |
|---|---|
| 1 | N.C. |
| 2 | N.C. |
| 3 | Supply for hazard warning lights |
| 4 | Sunroof supply |

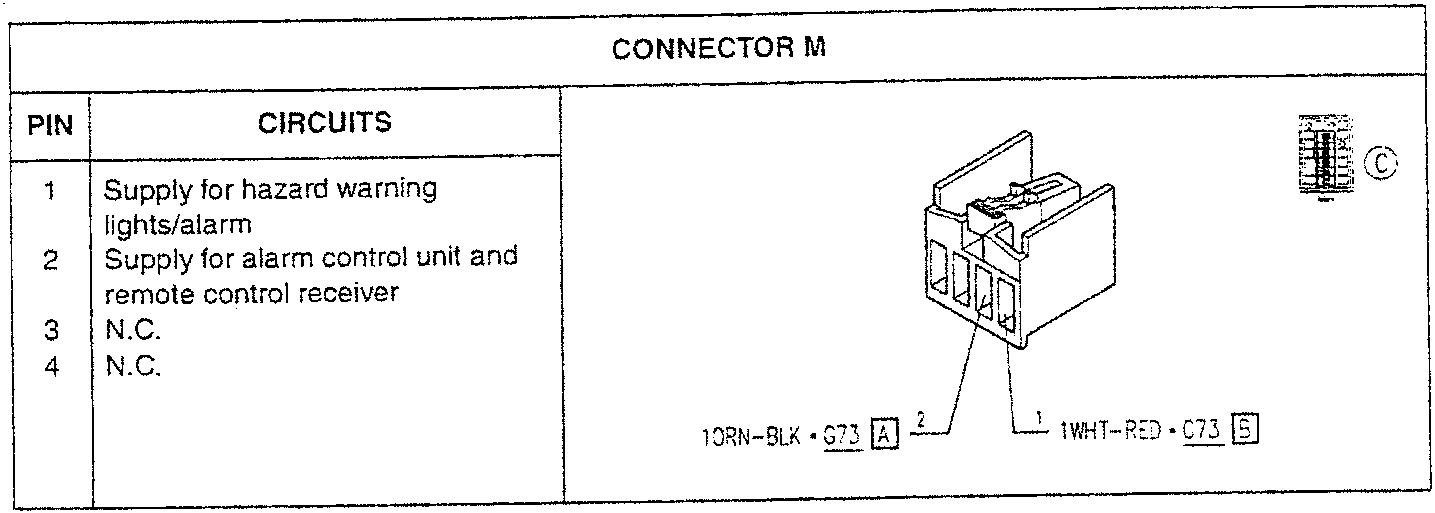

| PIN | CIRCUITS |
|---|---|
| 1 | Supply for hazard warning lights/alarm |
| 2 | Supply for alarm control unit and remote control receiver |
| 3 | N.C. |
| 4 | N.C. |

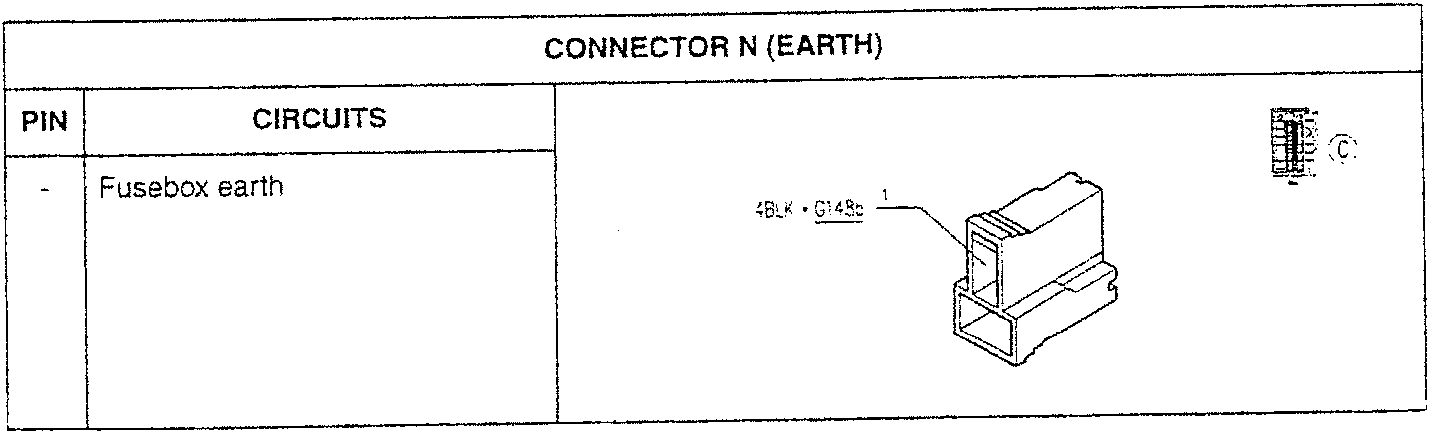

| PIN | CIRCUITS |
|---|---|
| - | Fusebox earth |
