145 electrical system diagnosisGeneral description · page 2 of 2

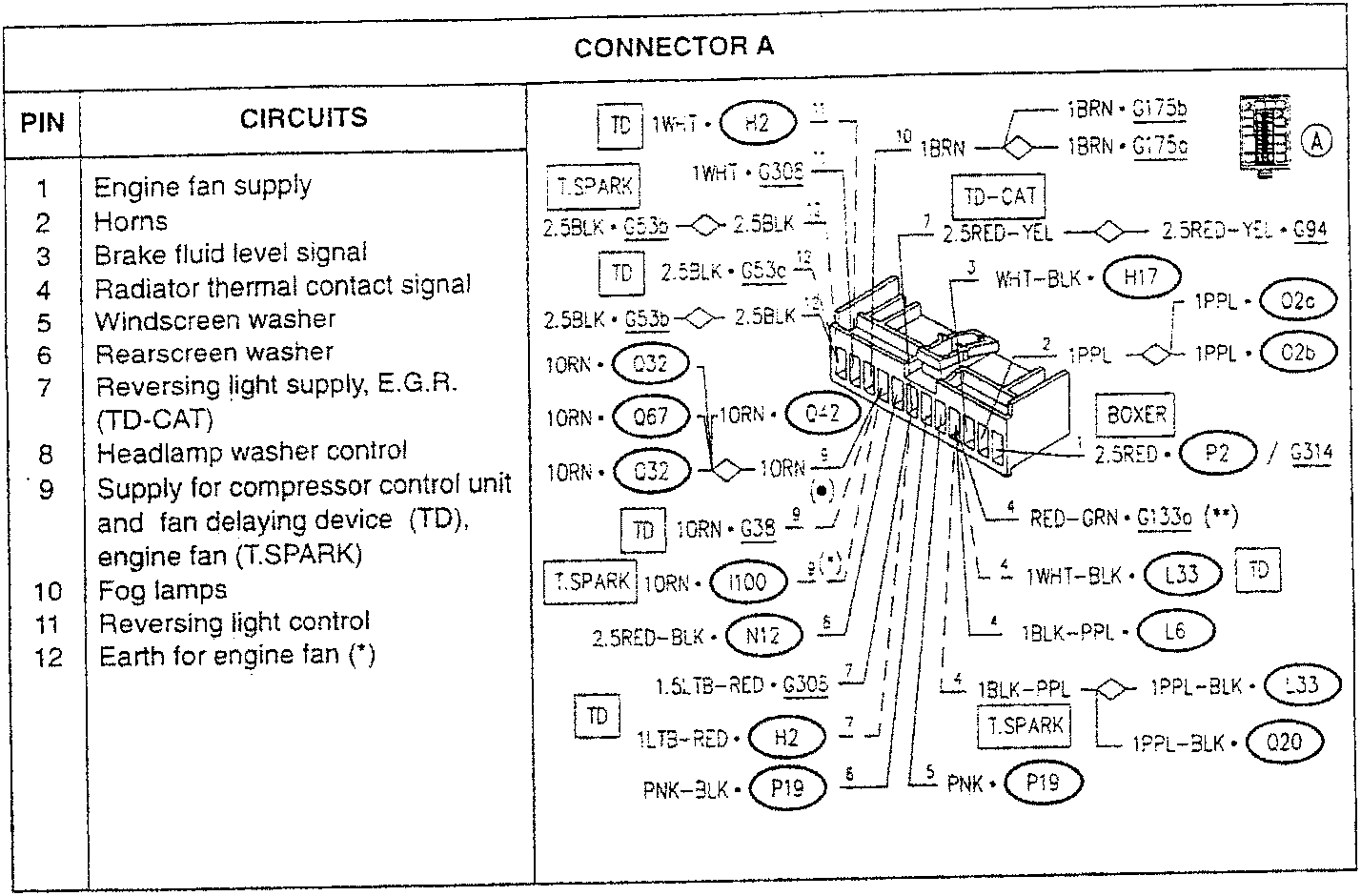

(•) For TD version, up to chassis no....

(*) Also Boxer from chassis no. 4065018

PIN	CIRCUITS
1	Engine fan supply
2	Horns
3	Brake fluid level signal
4	Radiator thermal contact signal
5	Windscreen washer
6	Rear screen washer
7	Reversing light supply, E.G.R. (TD-CAT)
8	Headlamp washer control
9	Supply for compressor control unit and fan delaying device (TD), engine fan (T.SPARK)
10	Fog lamps
11	Reversing light control
12	Earth for engine fan (*)

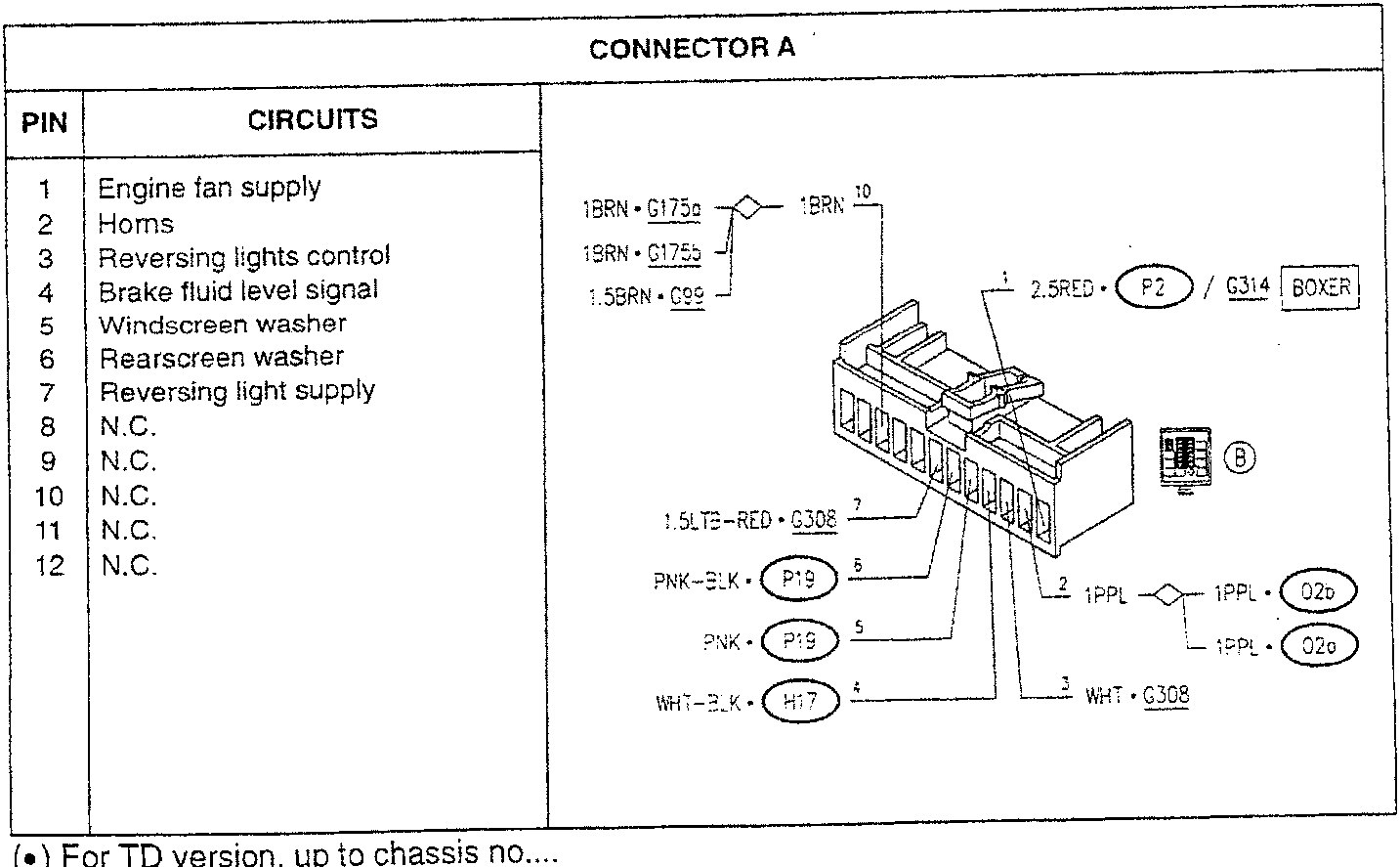

(•) For TD version, up to chassis no....

(**) From Model Year '97

PIN	CIRCUITS
1	Engine fan supply
2	Horns
3	Reversing lights control
4	Brake fluid level signal
5	Windscreen washer
6	Rear screen washer
7	Reversing light supply
8	N.C.
9	N.C.
10	N.C.
11	N.C.
12	N.C.
