Front seats › Refitting
70 BodyworkRefitting

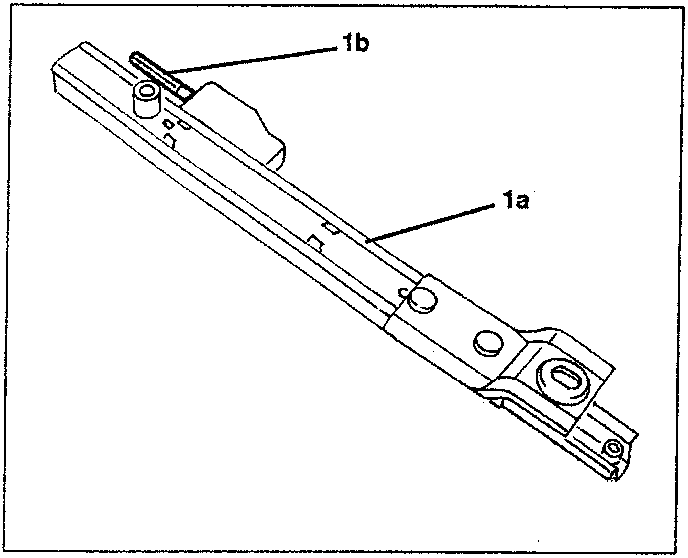

Diagram showing a guide with splined shafts labeled 1a and 1b.
  1. Position the guide on the seat, engaging the splined shaft in the reduction unit.
  2. Tighten the bolts, but not fully.
  3. Align the guides, checking that the axis between the front and rear openings is identical.
  4. Tighten the bolts..

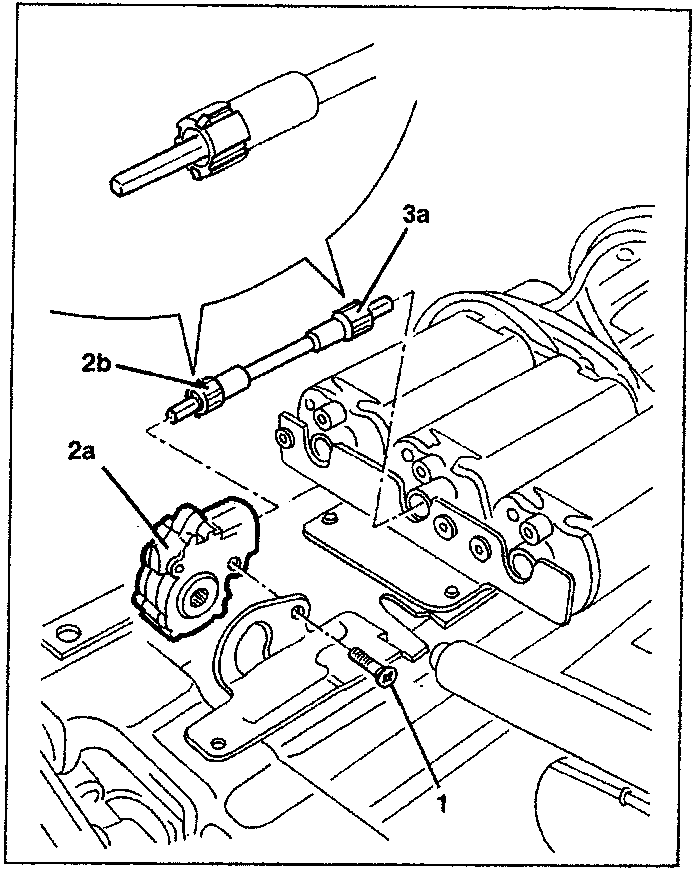

Diagram showing a flexible shaft with ends 2a and 2b, and a reduction unit with part 3a.

REFITTING

  1. If removed, refit the flexible shaft on the motor, ensuring that the splining (1b) on the end (1a) coincides, then engage the retainers (1c).
  2. Refit the end (2a) of the flexible shaft on the reduction unit, ensuring that the splining (1b) coincides, then engage the retainers (1c).
  3. Position the reduction unit.
  4. Tighten the bolt fixing the reduction unit.

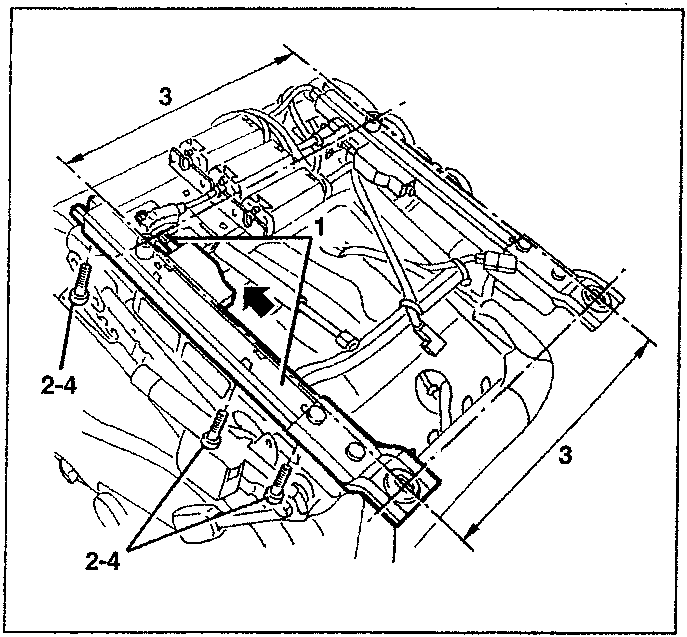

Diagram showing a seat sliding reduction unit with parts labeled 1, 2-4, and 3.

SEAT SLIDING REDUCTION UNIT (LEFT OR RIGHT)

REMOVING

  • Remove the seat (see specific paragraph).
  • Remove the seat guide (see specific paragraph).
  1. Undo the reduction unit fixing bolt.
  2. Remove the reduction unit (2a), disconnecting the end (2b) of the flexible shaft (pull).
  3. If necessary, remove the flexible shaft, disconnecting the end (3a) from the motor (pull).
