Alfa Romeo GTV and Spider (916) Factory Service Manual (1995-2000)15 · 70 Bodywork
15 · Body & interior

Seat centre upholstery cover and heater pad

Make
Alfa Romeo
Model
GTV / Spider GTV and Spider (916) Factory Service Manual
Year
1995–2000
Section
Front seats › Seat centre upholstery cover and heater pad
70 BodyworkSeat centre upholstery cover and heater pad
Diagram showing seat components with numbered parts including cushion, rods, and clips

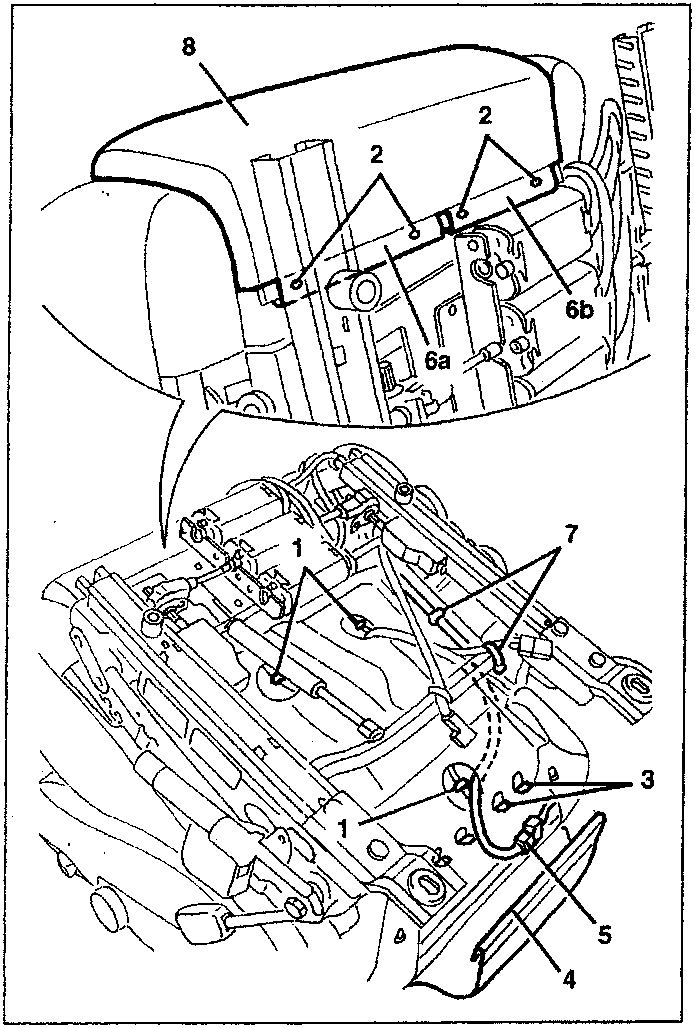

Proceed with refitting the centre cushion, reversing the order of the operations carried out for the removal.

SEAT CENTRE UPHOLSTERY COVER AND HEATER PAD

REMOVING - REFITTING

  • Remove the seat (see specific paragraph).
  • Remove the seat movement switch unit (see specific paragraph).
  • Remove the seat outer shield (see specific paragraph).
  • Remove the seat centre cushion (see specific paragraph).

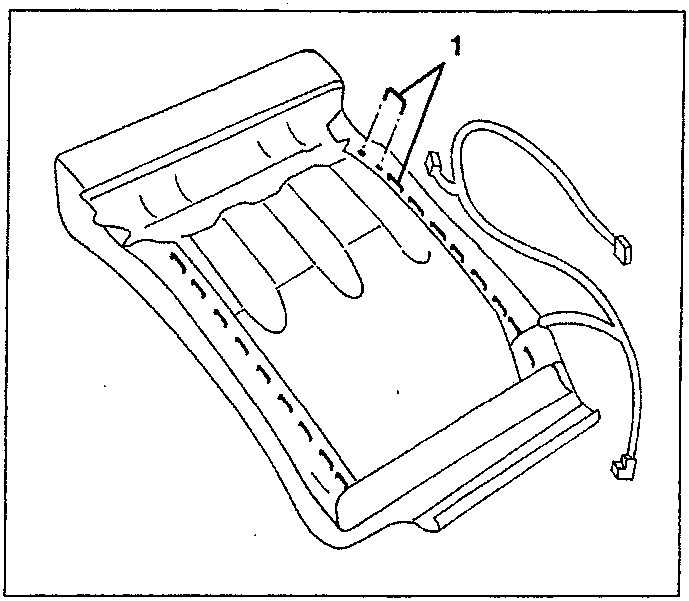

  1. Remove the clips fastening the cover to the upholstery.
Diagram showing a folded cushion with retaining rings and rods

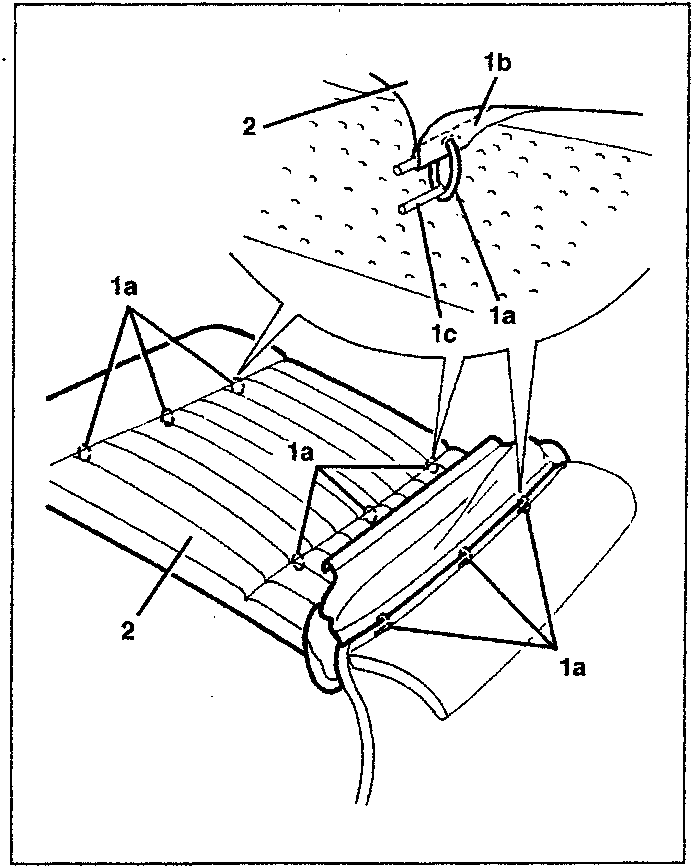

  1. Fold the cushion over and cut the retaining rings (1a) between the cover (1b) and the upholstery rods (1c).
  2. Recover the cover.
Diagram showing a seat centre upholstered section with clips, cover, and rods
