SEAT DIS-ASSEMBLY

SEAT BACK AND HEADREST

  • Only for Spider:

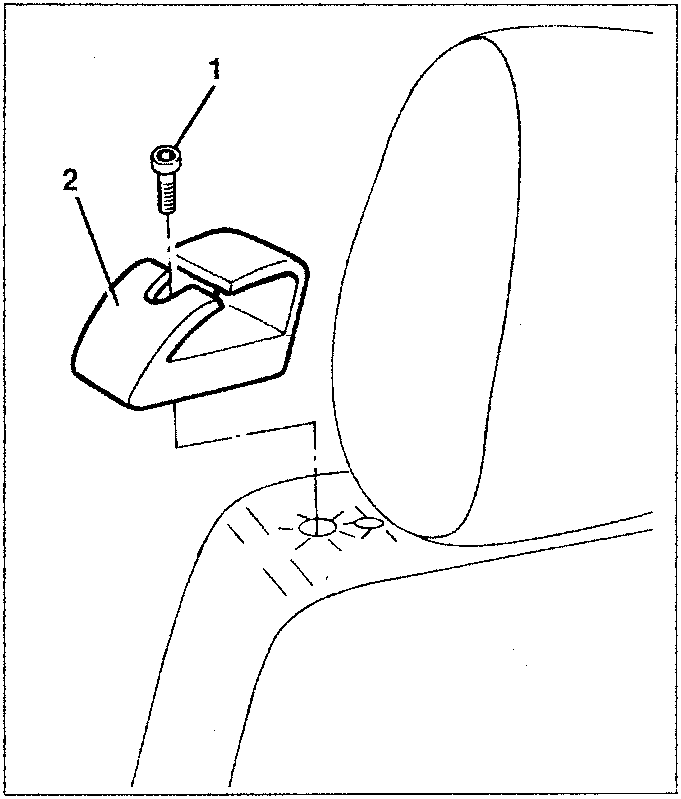

  1. Slacken the screw fastening the seat runner.
  2. Remove the seat runner.
Diagram showing seat runner removal with numbered parts 1 and 2

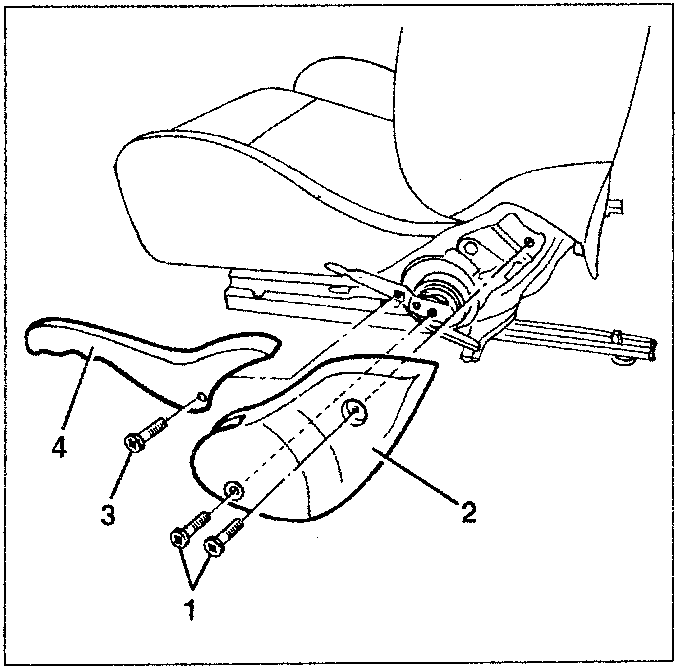

  1. Slacken the two screws.
  2. Remove the side plate.
  3. Slacken the screw.
  4. Withdraw the seat recline adjustment lever.
Diagram showing seat recline adjustment lever removal with numbered parts 1, 2, 3, and 4

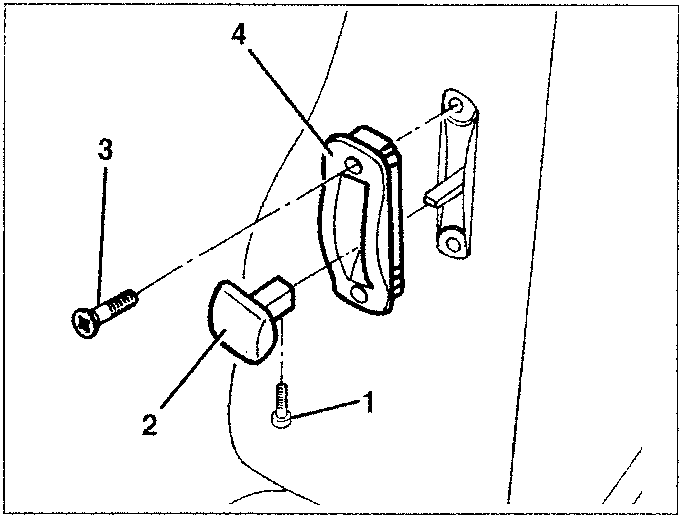

  1. Raise the seat tilting lever and slacken the knob fastening screw.
  2. Remove the knob.
  3. Slacken the two screws fastening the plate.
  4. Remove the plate.
Diagram showing seat plate removal with numbered parts 1, 2, 3, and 4

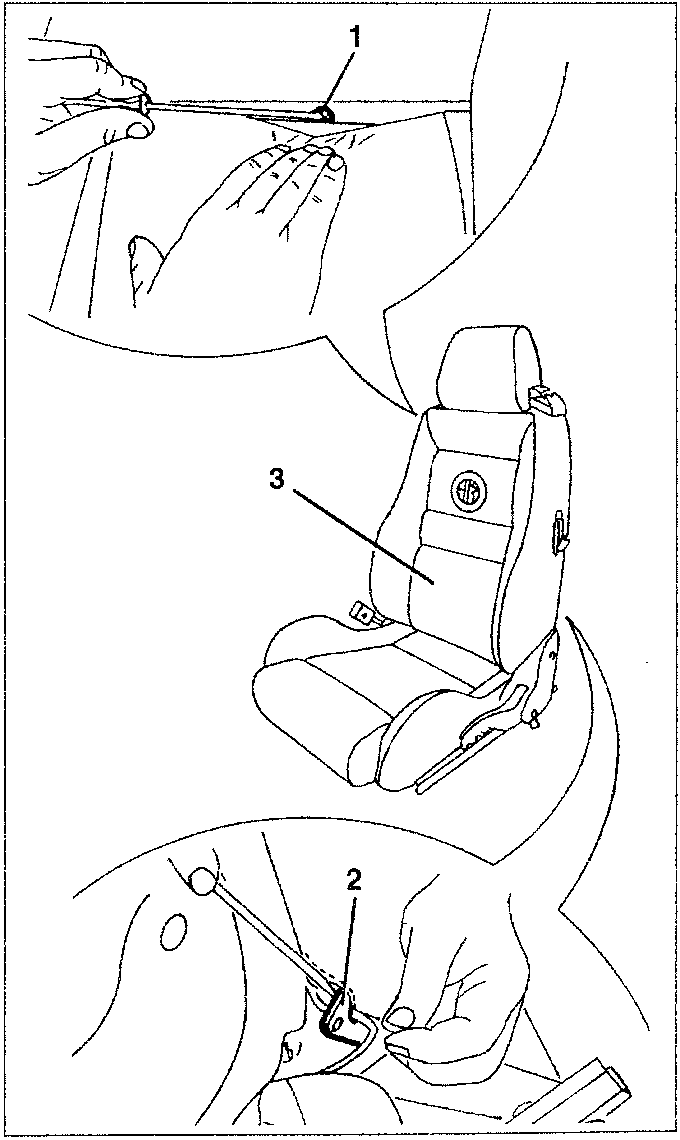

  1. Open the three tabs fastening the upper seat back padding.
  2. Release the lower edge of the padding from the rear of the seat.
  3. Remove the seat back padding.
Diagram showing seat back padding removal with numbered parts 1, 2, and 3
