Seat dis-assembly (page 3 of 3)

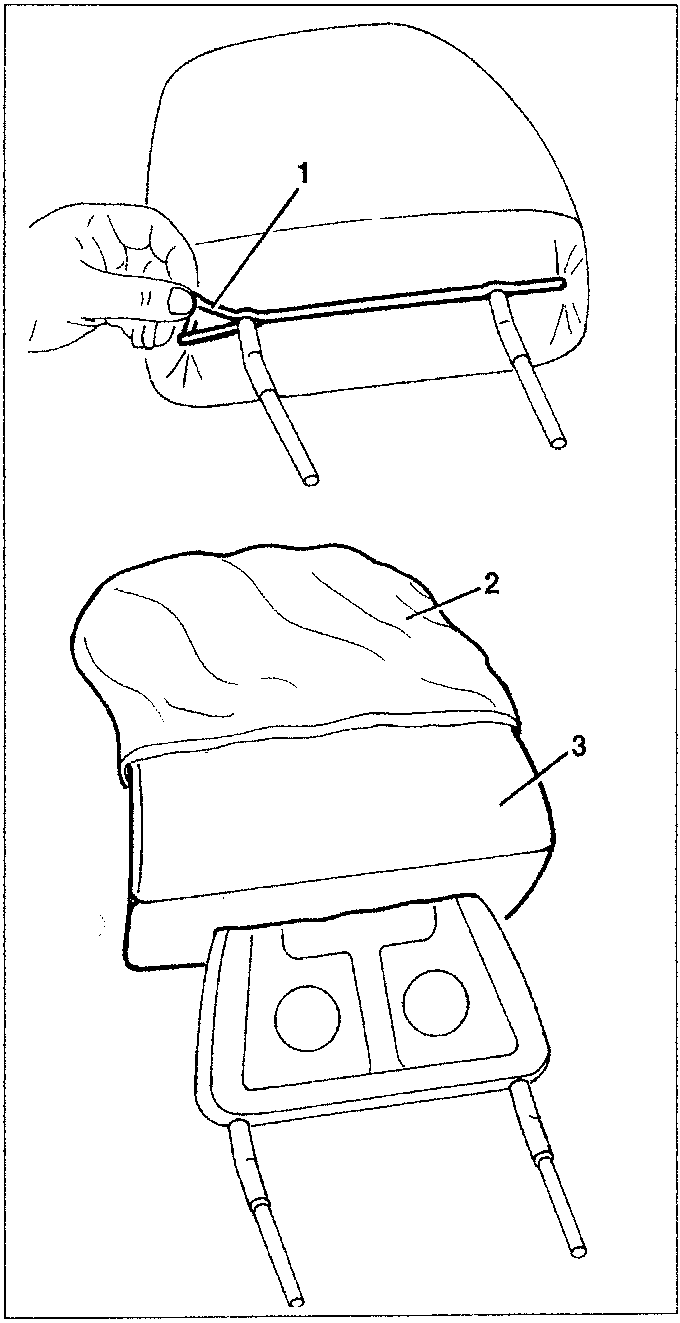

1. If necessary, open the lower edge of the headrest cover.
2. Withdraw the headrest cover.
3. Remove the headrest padding.

To facilitate re-assembly of the cover on the head rest, position the special material (non-woven fabric) correctly which aids the sliding action and the correct positioning of the cover itself.

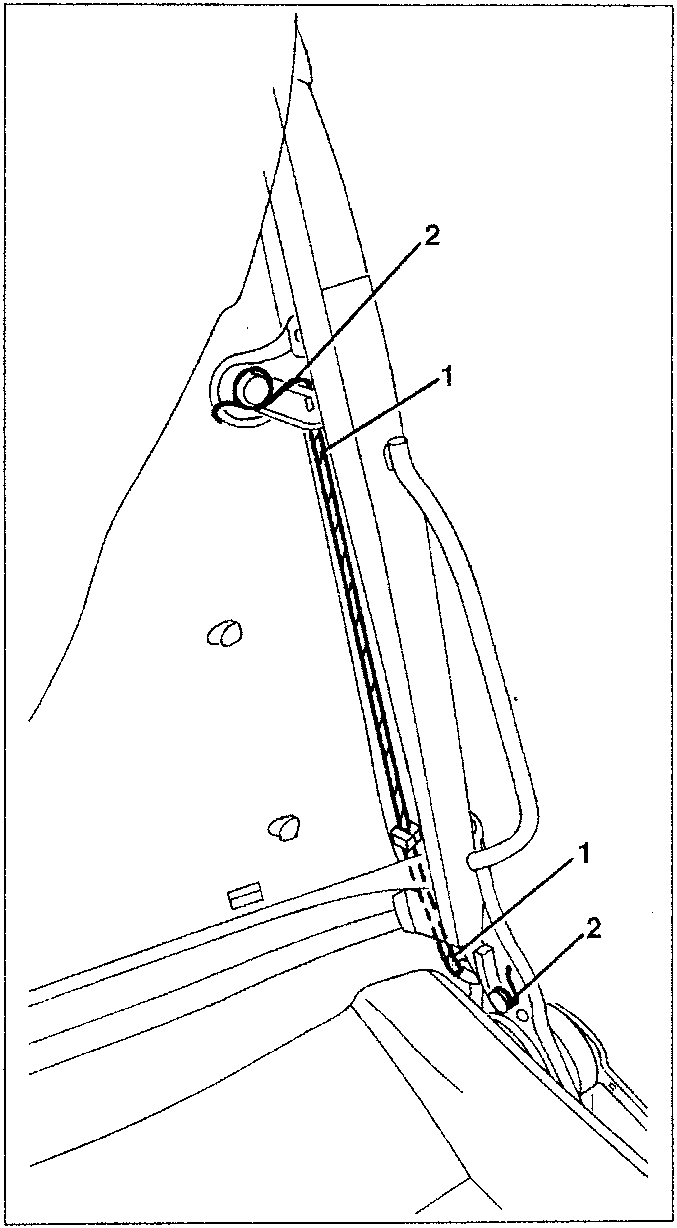

1. If necessary, replace the seat back tilting cable disconnecting it from the upper lever and from the lower hook.
2. If necessary, remove the upper and lower reaction springs.
