Cushion and seat guides

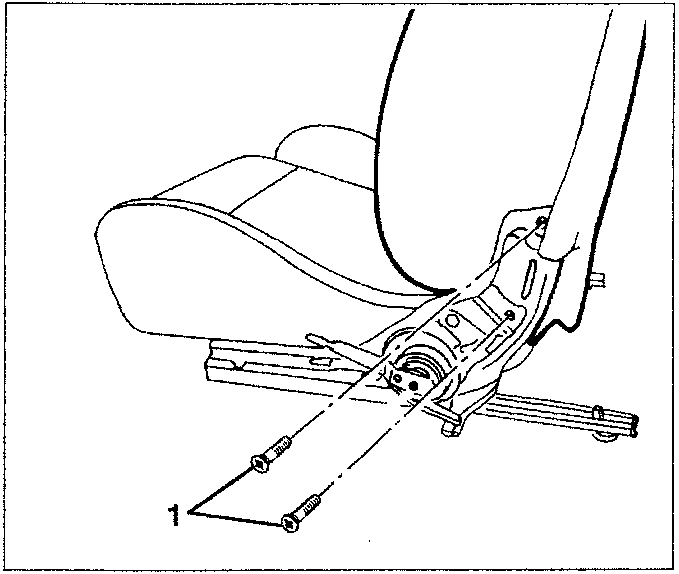

1. If necessary, slacken the two screws fastening the seat back to the seat structure on both sides.
2. Remove the seat back.

Re-assemble the seat back and headrest reversing the procedure followed for dis-assembly.

Use a suitable glue to fix the seat back paddings to the structure.

CUSHION AND SEAT GUIDES

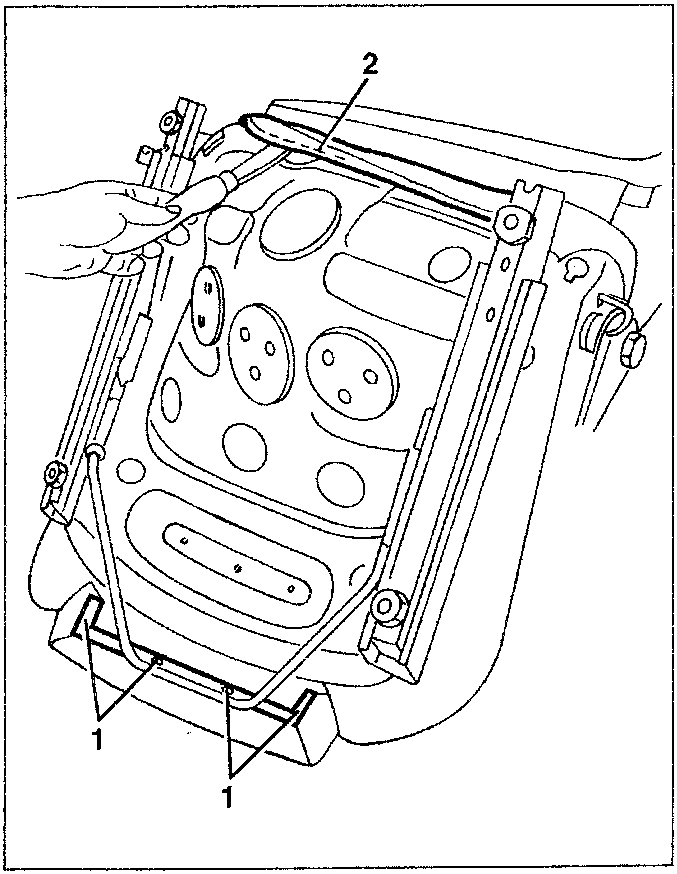

1. Remove the two rivets and prise off the profile fastening the front cushion to the side of the seat.
2. Raise the rear edge of the cushion cover.

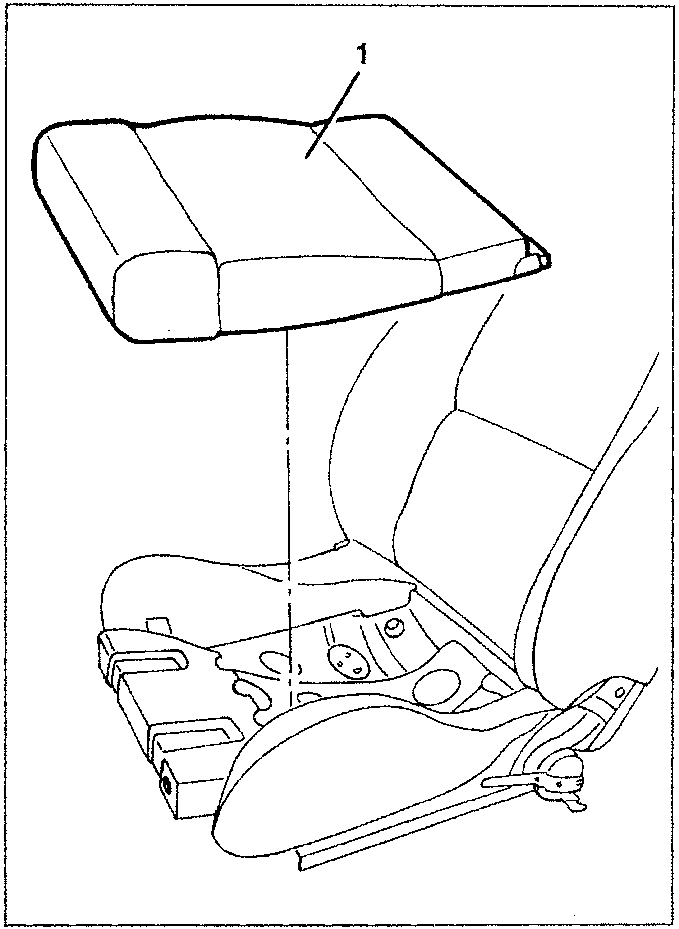

1. Remove the cushion padding withdrawing the rear edge between the cushion and the seat back.

– If necessary, replace the cushion cover proceeding as described for the seat back padding (see specific paragraph).

NOTE: Before removing the cushion side paddings, it is advisable to remove the pretensioner (see specific paragraph).

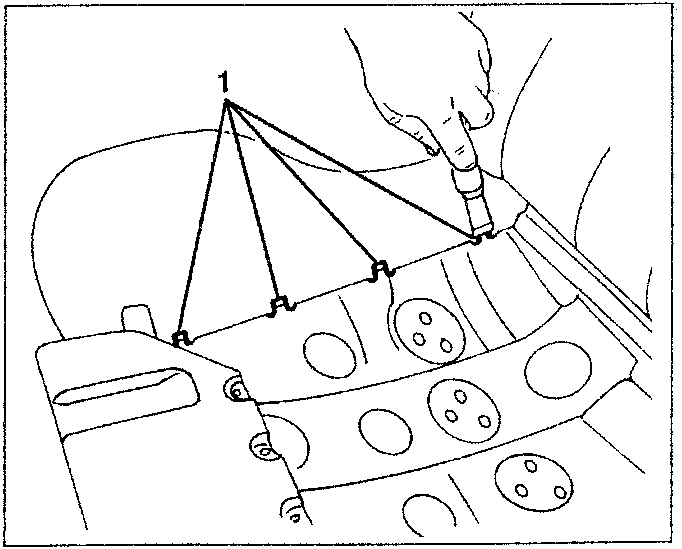

1. Open the four tabs fastening the sides of the cushion cover.
2. Raise the rear and side edges.
