70 BodyworkCushion and seat guides · page 2 of 2
  1. Remove the lower arc which enables the running of the seat

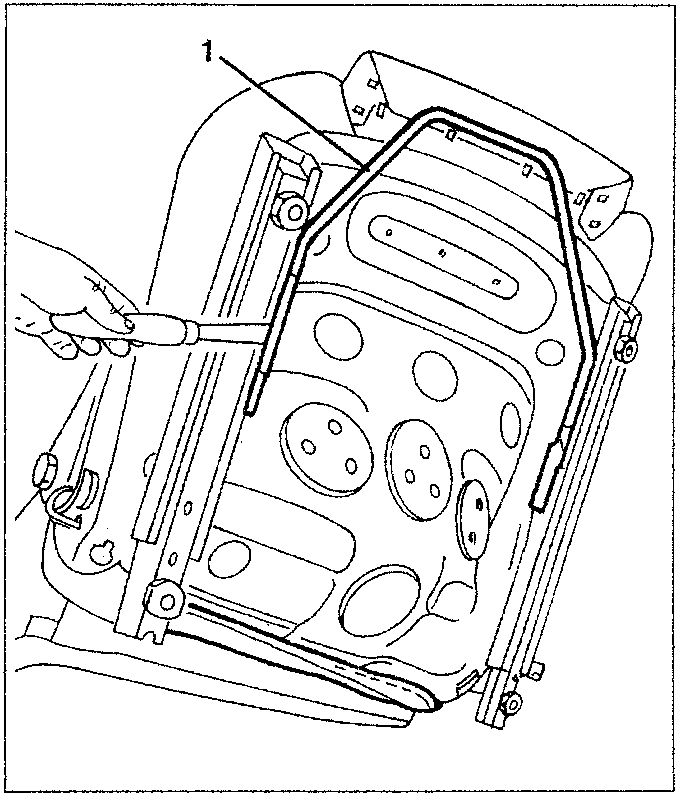

Diagram showing removal of the lower arc from the seat structure.

The arc is preloaded. Take care when removing it.

  1. Slacken the three guide fastening nuts on each side.
  2. Remove the guides from the seat structure.

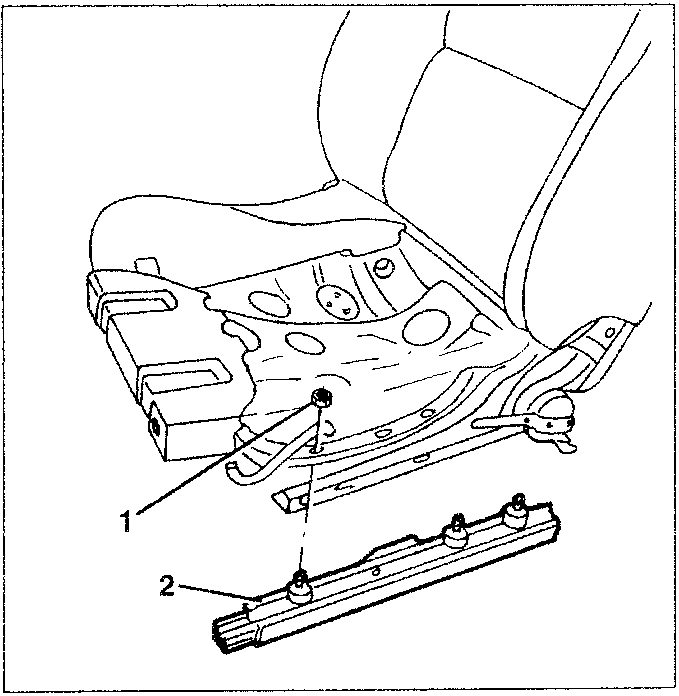

Diagram showing re-assembly of the seat guides and cushion padding.

Re-assemble reversing the procedure followed for dis-assembly. Use a suitable glue to fix the cushion padding to the structure.

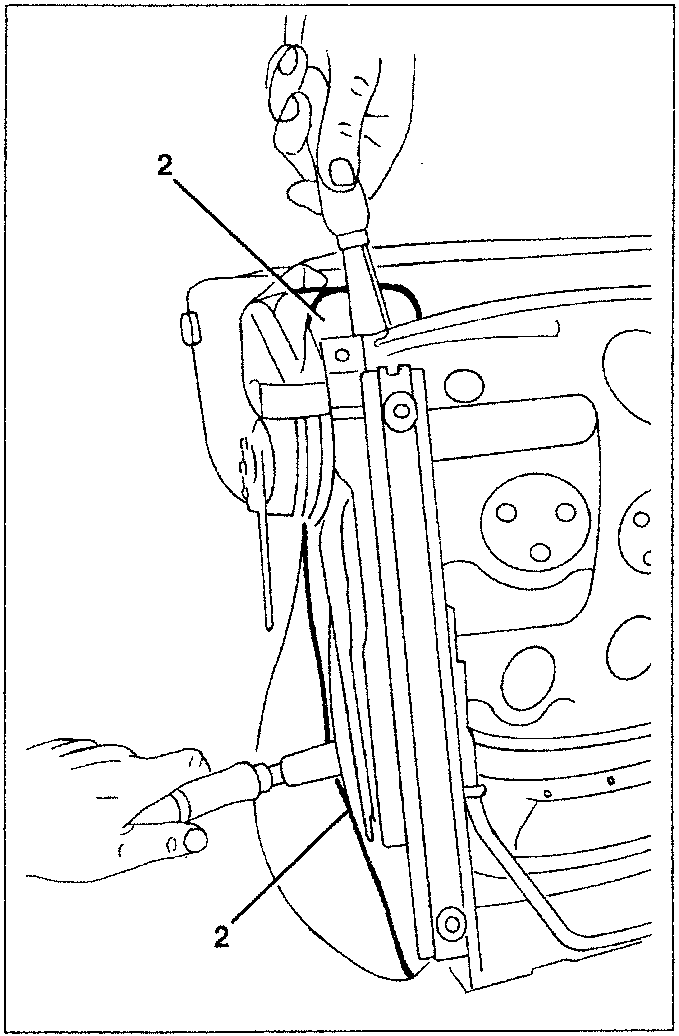

Diagram showing removal of side paddings and cover from the seat structure.
  1. Remove the side paddings
  2. Withdraw the cover.

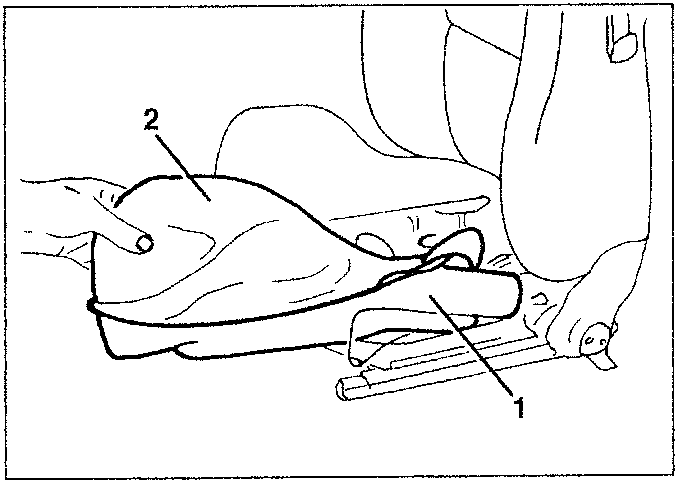

Diagram showing positioning of special material on the cushion padding for re-assembly.

To facilitate re-assembly of the cover on the paddings, position the special material (non-woven fabric) correctly which aids the sliding action and the correct positioning of the cover itself.
