Seat dis-assembly (page 2 of 3)

If necessary dis-assemble the seat back padding.

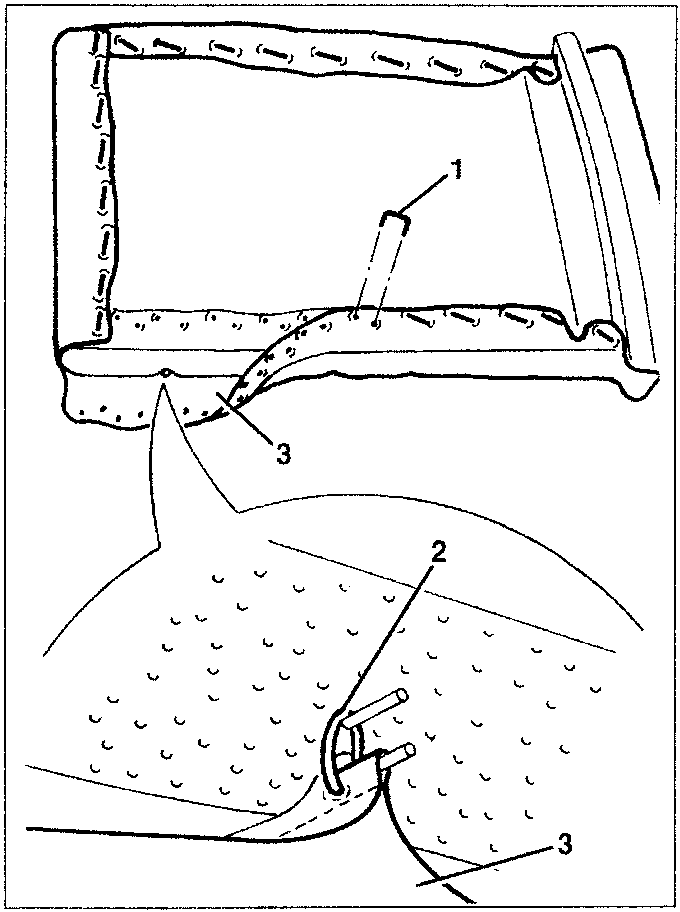

1. Open the clips fastening the cover to the padding.
2. In correspondence of the two crosswise seams cut the three clips between the rod inserted in the padding and the one in the cover.
3. Remove the cover.

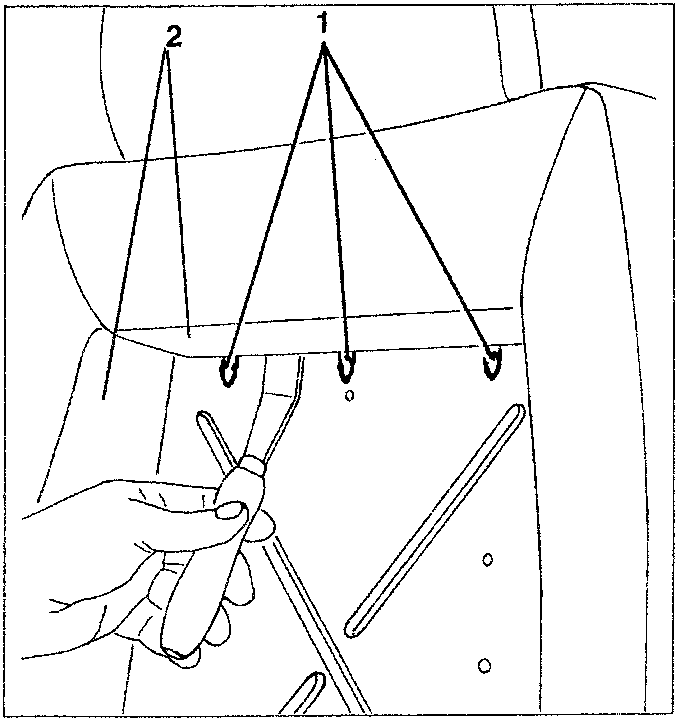

1. Open the upper and side tabs fastening the seat back cover.
2. Raise the edges and release the cover.

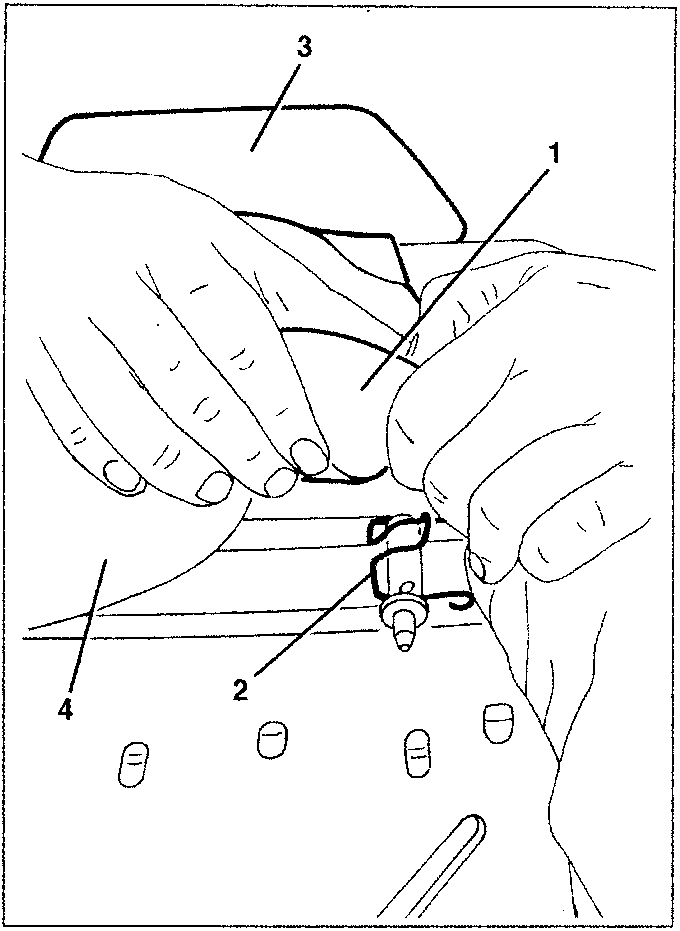

1. Raise the seat back upper padding.
2. Remove the retainer clip on each headrest pin
3. Remove the headrest.
4. Remove the seat back cover.

To facilitate re-assembly of the cover on the seat back, position the special material (non-woven fabric) correctly which aids the sliding action and the correct positioning of the cover itself.
