Boot compartment flap catch

1. Slacken the three screws fastening the dashboard lower bracket.
2. Remove the bracket.

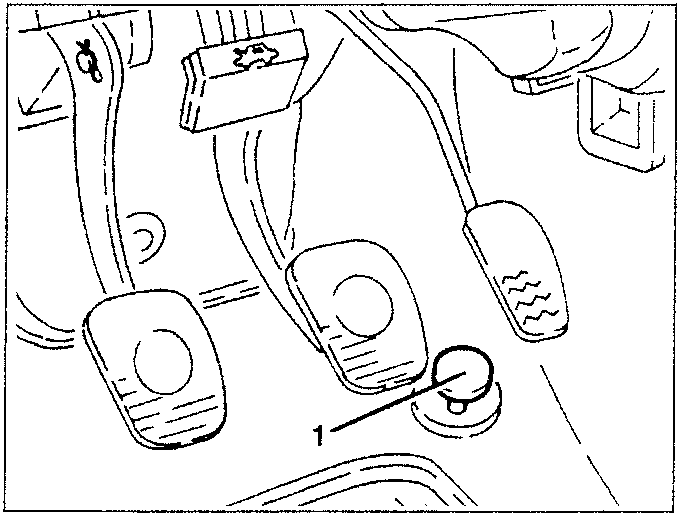

1. accelerator pedal stroke limit

• Remove the inertial switch (see GROUP 10).
• Remove the handbrake lever cover.
• Raise the lower edge in velcro of the rear shelf cover (only Spider).
• Remove the rear seats and side panels (only Gtv- see specific paragraph).
• Remove the front seat belt lower connections.

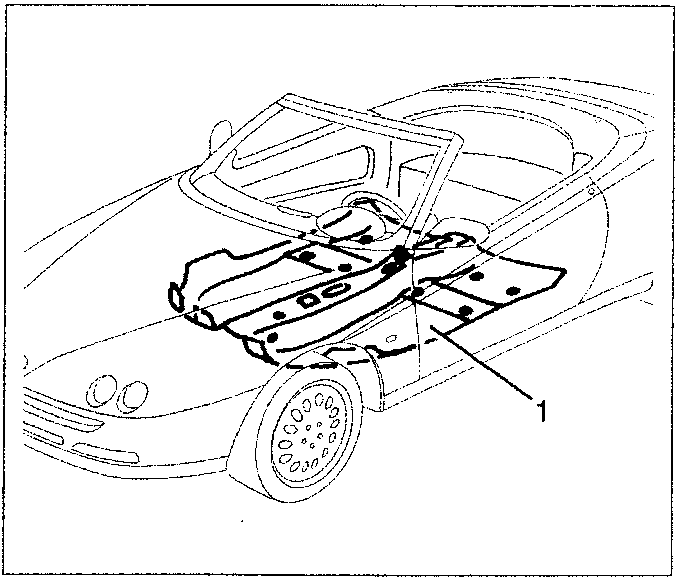

1. Release the floor trim and remove it from the passenger compartment.

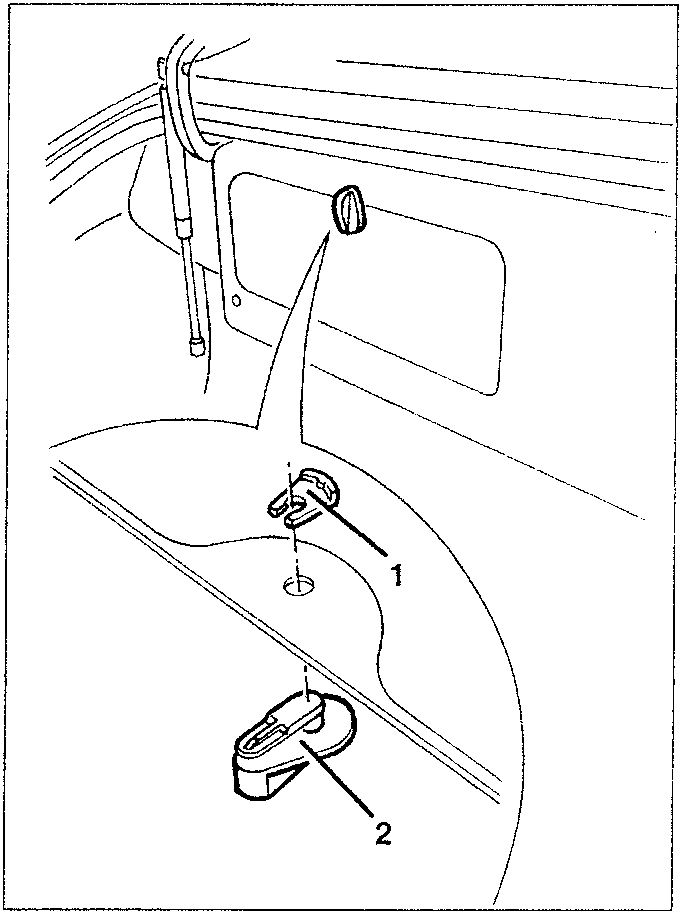

BOOT COMPARTMENT FLAP CATCH

REMOVAL/REFITTING

1. Release the retainer.
2. Release the catch from its seat.

Refit the catch by reversing the removal sequence.
