DIS-ASSEMBLY

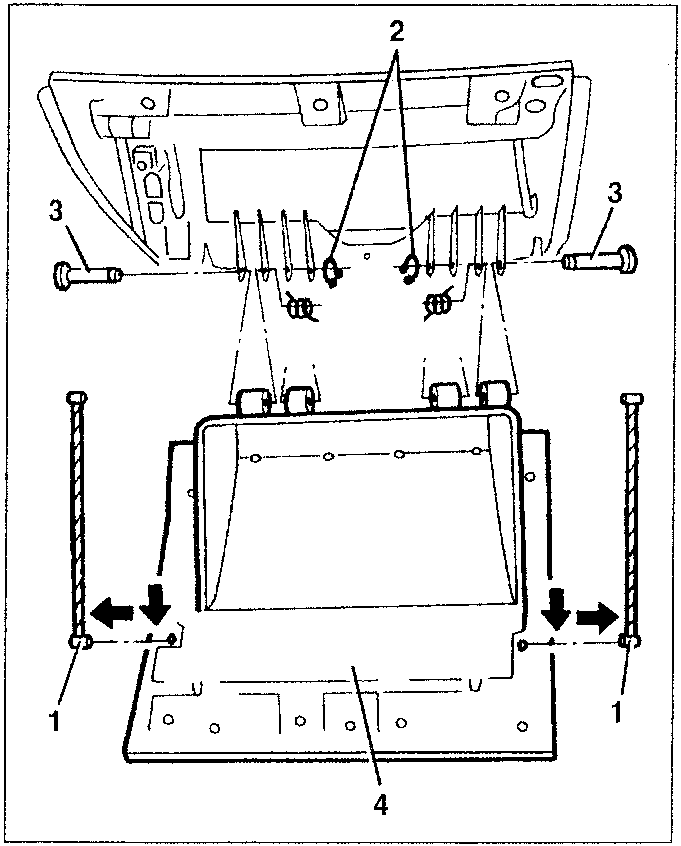

1. Release the lid support cables from the anchor slots.
2. Completely open the lid, remove the two seeger rings on the hinges.
3. Remove the pins.
4. Separate the lid.

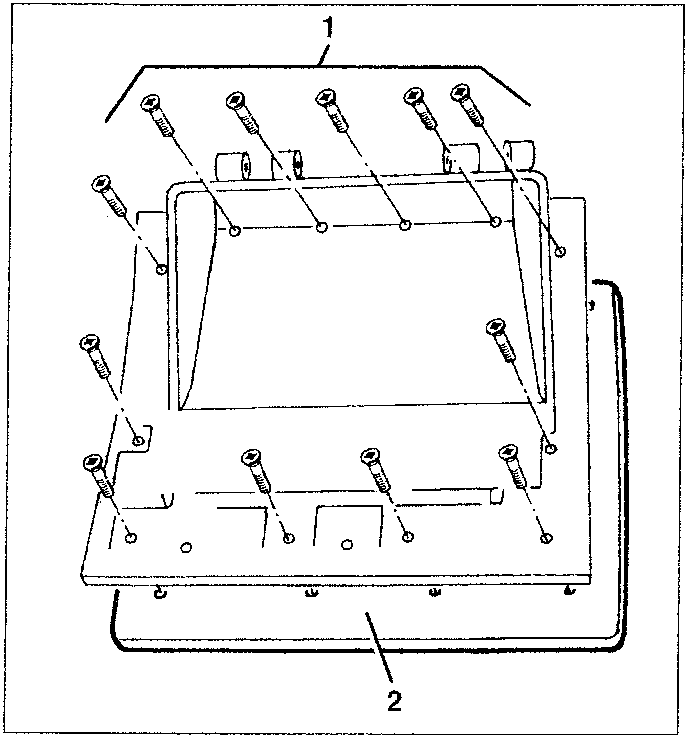

1. Slacken the twelve screws fastening the trim to the lid.
2. Remove the trim.

GLOVEBOX LID LOCK REMOVAL / REFITTING

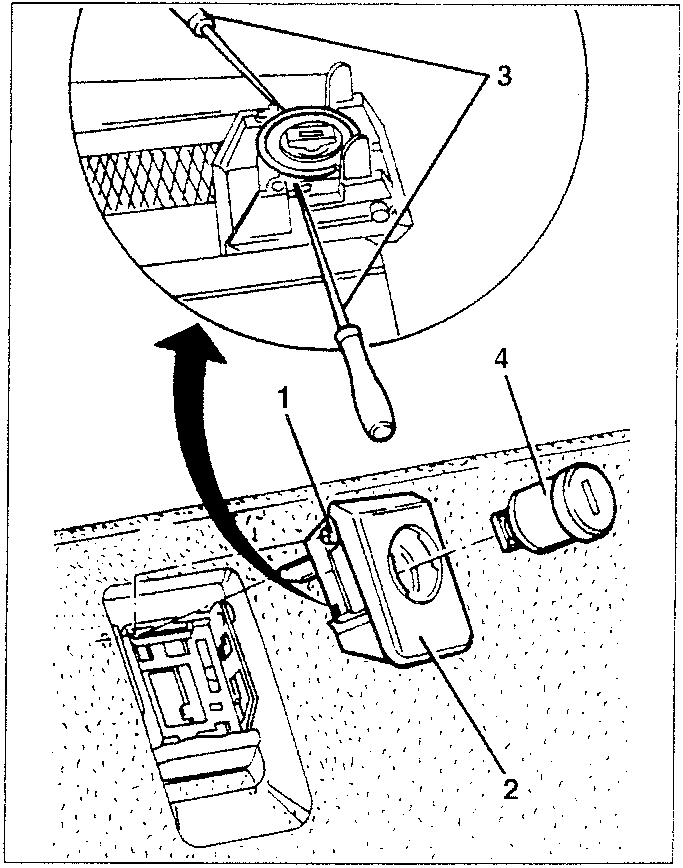

1. Raise the glovebox opening handle and use a small screwdriver on the pins fastening the handle to the lid.
2. Remove the complete handle.
3. Using two fine punches, work on the lock retainer clips.
4. Remove the lock.

When refitting reverse the sequence followed for removal.

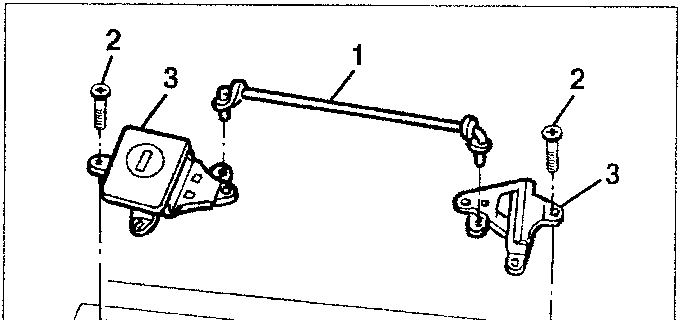

1. Release the return rod from the closing device.

2. Slacken the screws.

3. Remove the closing device.
