CENTRAL UNIT FRAME ('98 versions)

REMOVAL/REFITTING

  • Remove the dashboard and the respective air duct (see specific paragraph).

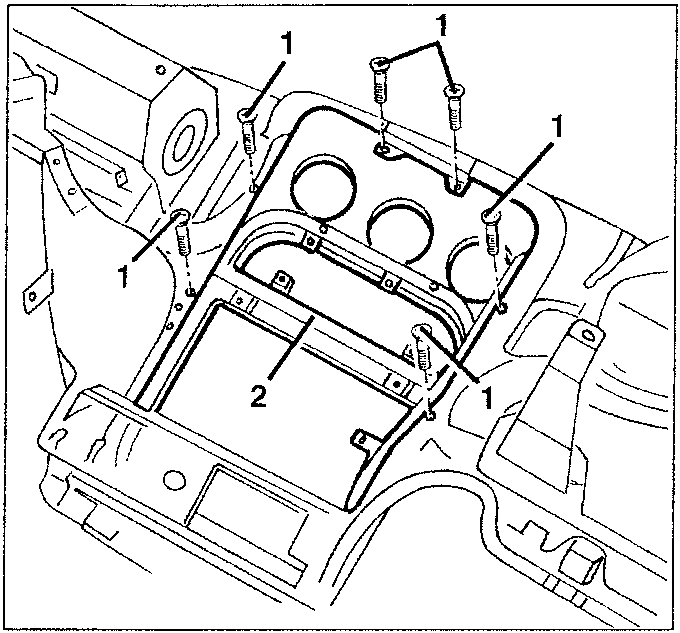

  1. Loosen the frame fastening screws.
  2. Remove the frame.
Central unit frame with screws and mounting points

Refit the frame by reversing the removal sequence.

GLOVEBOX

REMOVAL / REFITTING

  • Disconnect the battery.

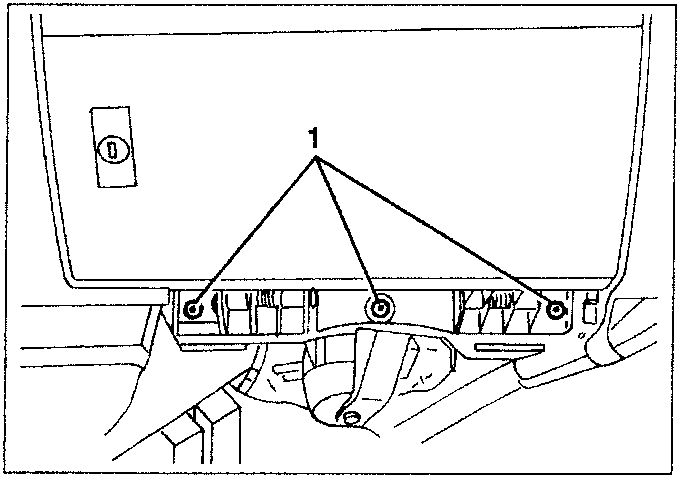

  1. With the glovebox closed slacken the three screws fastening the lower glovebox.
Glovebox with screws and latch mechanism

REMOVAL/REFITTING

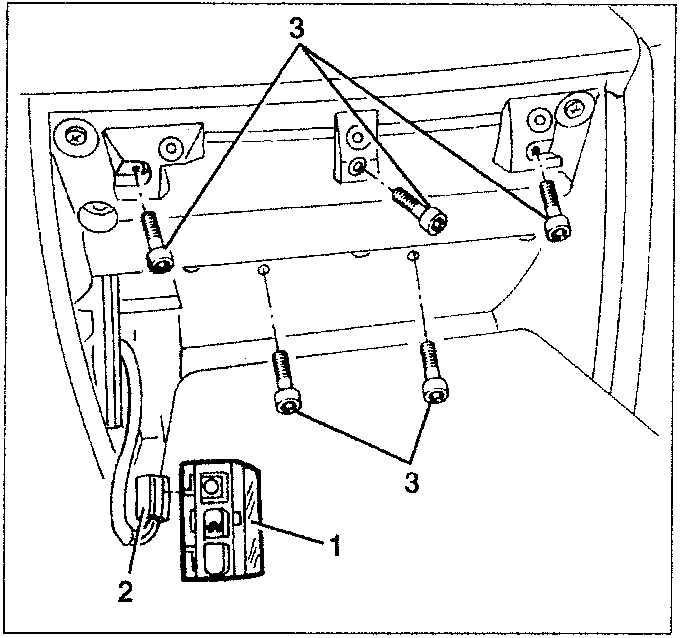

  1. Open the glovebox and remove the lamp complete.
  2. Disconnect the electrical connection.
  3. Slacken the five screws fastening the upper glovebox.
Upper glovebox with screws and lamp connection

REMOVAL / REFITTING

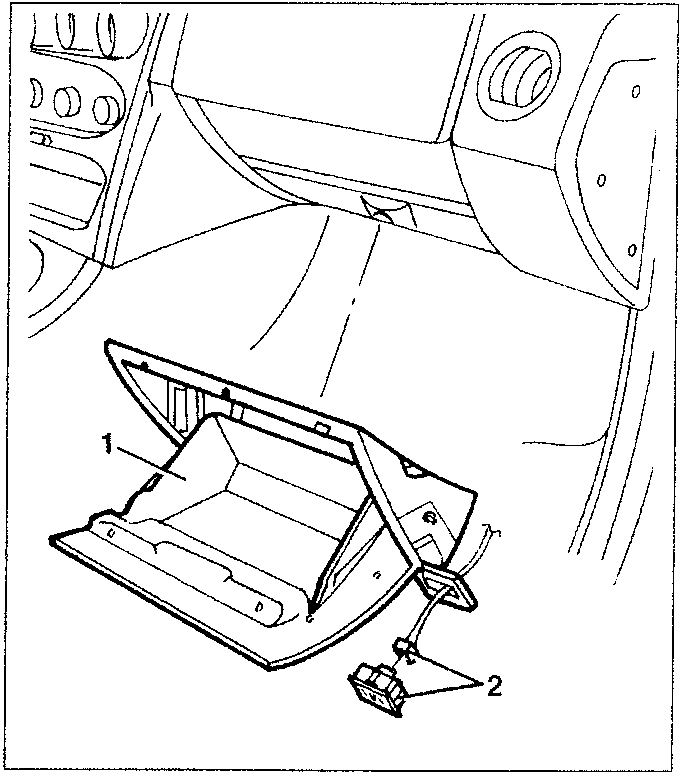

  1. Remove the glovebox complete.
  2. Disconnect the lamp and retrieve the glovebox.
Glovebox being removed from the car interior

Refit the glovebox reversing the sequence followed for removal.
