70 BodyworkEngine compartment guards

When refitting, re-position the retainer profile fitting it directly on the locking pins.

ENGINE COMPARTMENT GUARDS

REMOVAL / REFITTING

  • Open the bonnet.
  1. Remove the fastenings.
  2. Retrieve the engine compartment guards.

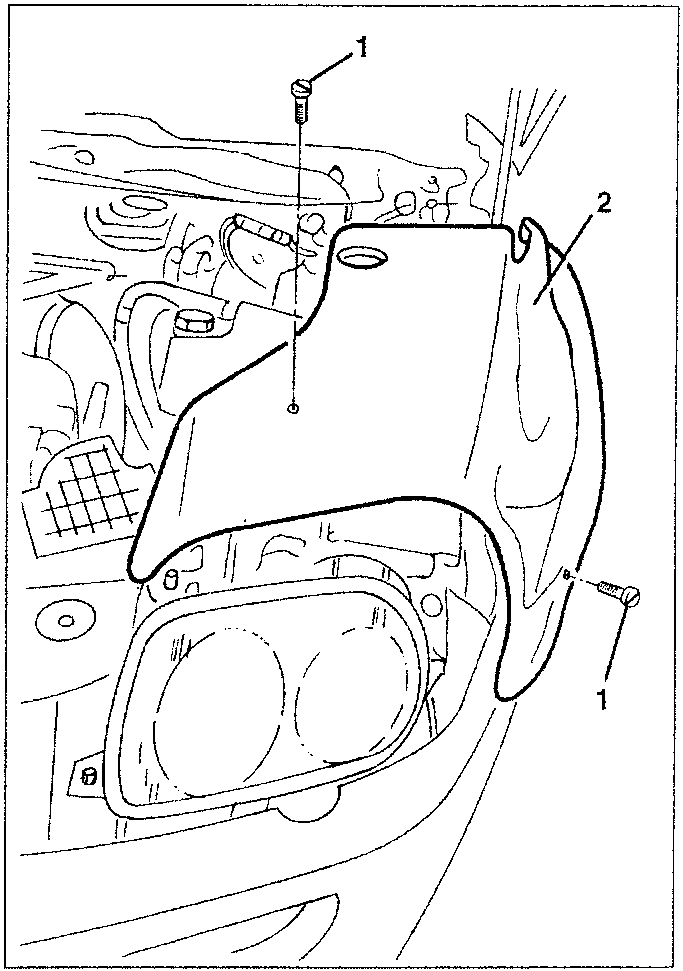

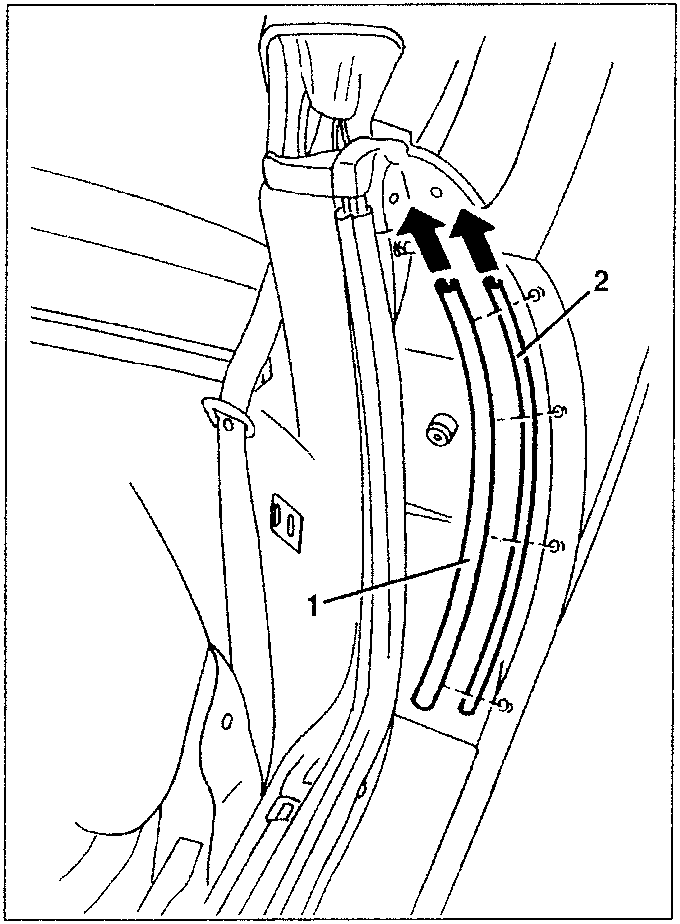

Engine compartment guards with retainer profile and locking pins

ENGINE COMPARTMENT REAR SEAL

REMOVAL / REFITTING

  • Remove the air intake grille (see specific paragraph).
  1. Remove the two fastening plugs, on each side.
  2. Remove the seal outer components.
  3. Prise and remove the centre seal.
Engine compartment rear seal with fastening plugs and seal outer components

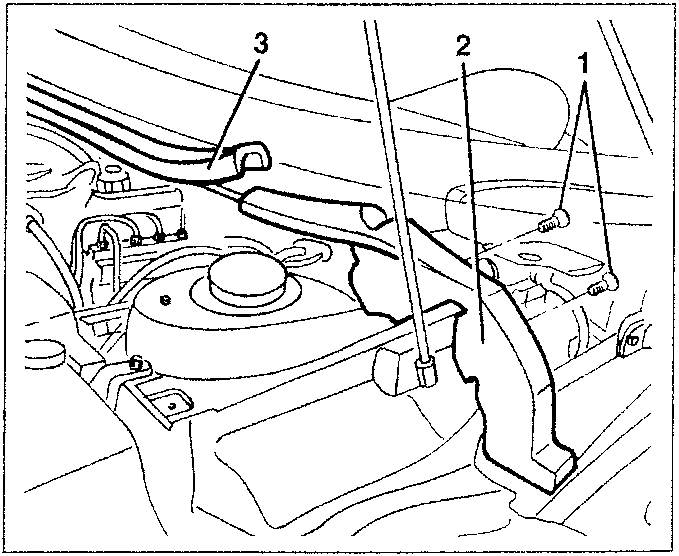

Engine compartment rear seal with fastening plugs, seal outer components, and centre seal
