Alfa Romeo GTV and Spider (916) Factory Service Manual (1995-2000)15 · 70 Bodywork
15 · Body & interior

REMOVAL - REFITTING ('98 versions)

Make
Alfa Romeo
Model
GTV / Spider GTV and Spider (916) Factory Service Manual
Year
1995–2000
Section
Interior trim › REMOVAL - REFITTING ('98 versions)
70 BodyworkREMOVAL - REFITTING ('98 versions) · page 1 of 2

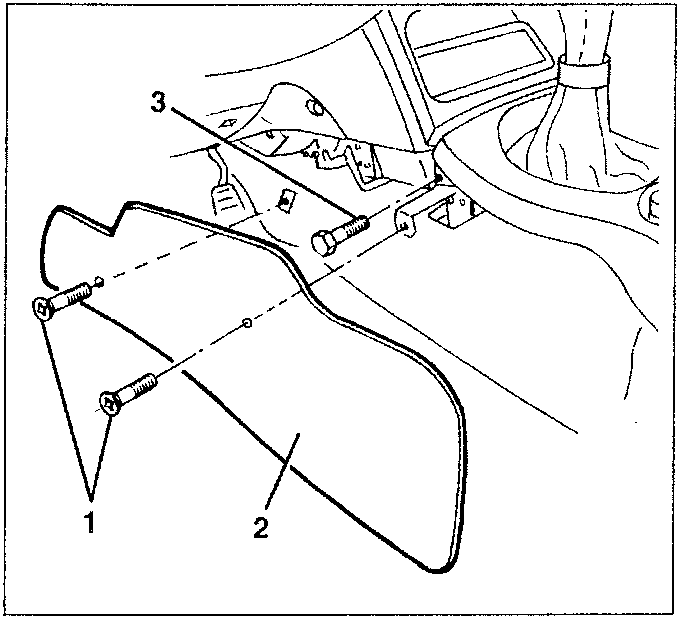

  1. Slacken the two screws on each side of the tunnel, fastening the sides.
  2. Remove the tunnel sides.
  3. Slacken the two screws fastening the tunnel console to the centre console.
Diagram showing tunnel sides with screws 1 and 2

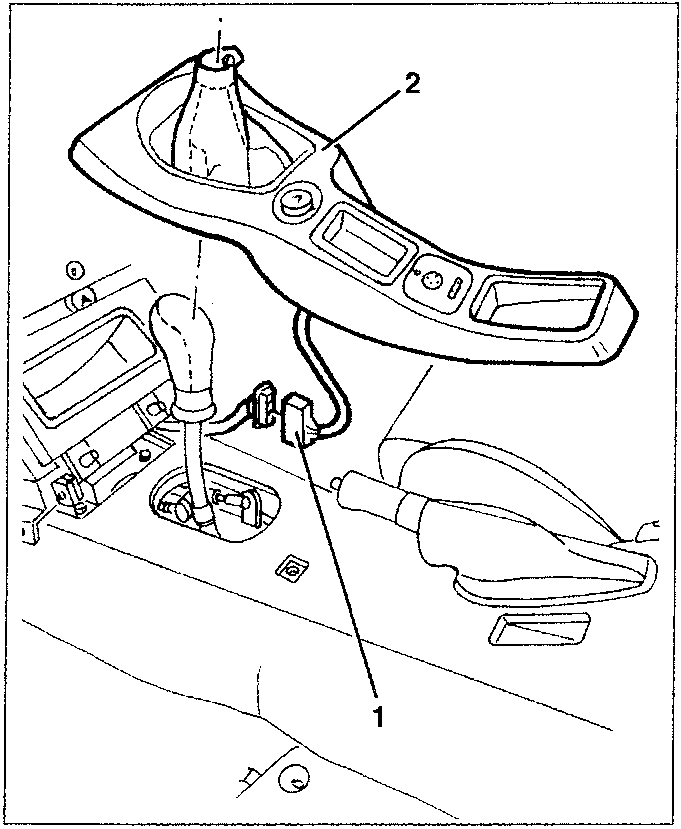

  1. Disconnect the console wiring electrical connection.
  2. Remove the tunnel console.
Diagram showing tunnel console with electrical connector 1 and armrest 2

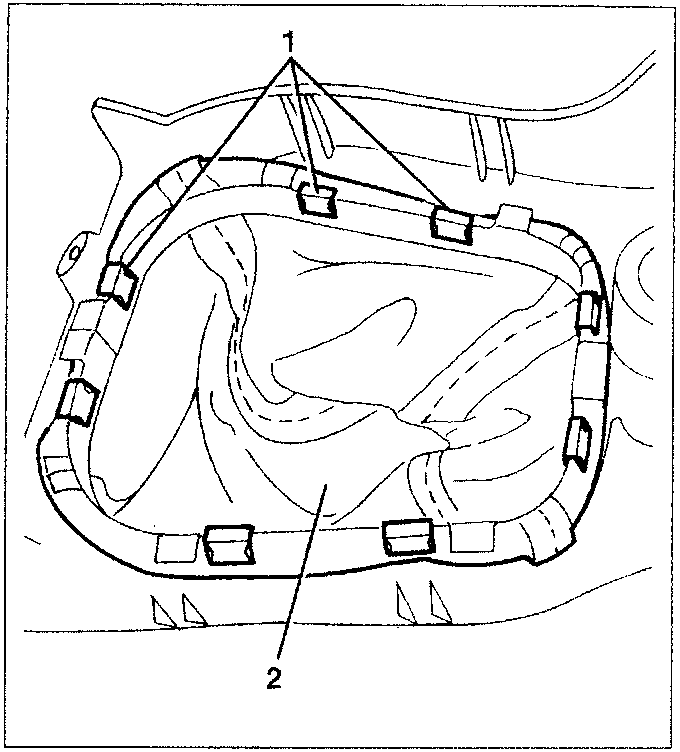

  1. If necessary, remove the eight clamps fastening the gearshift lever cover to the console.
  2. Remove the gearshift lever cover.
Diagram showing tunnel console with parts 1 and 2

Refit the tunnel console reversing the sequence followed for removal.

REMOVAL - REFITTING ('98 versions)

  • Disconnect the battery.

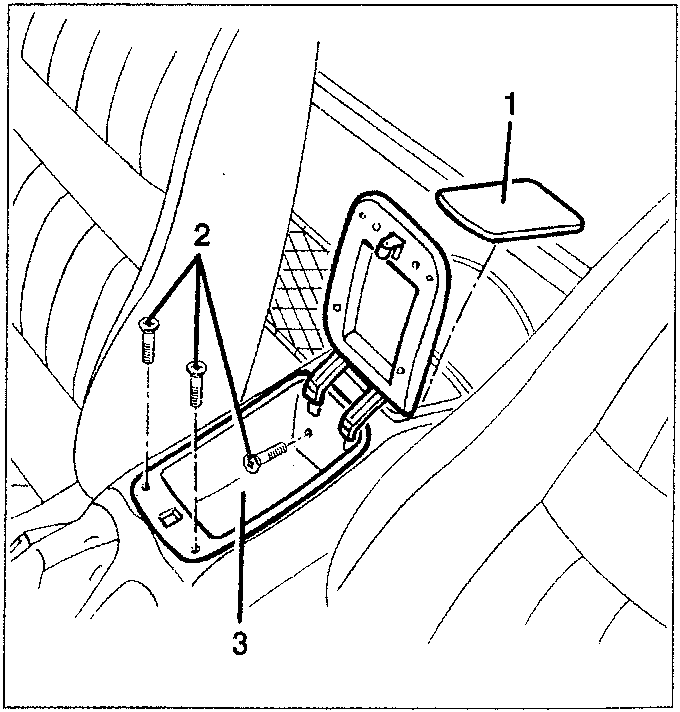

  1. Extract the central unit plate.
  2. Open the armrest and loosen the fastening screws.
  3. Extract the armrest assembly and compartment.
Diagram showing armrest assembly with parts 1, 2 and 3
