Rear luggage compartment trim

REAR LUGGAGE COMPARTMENT TRIM

REMOVAL / REFITTING

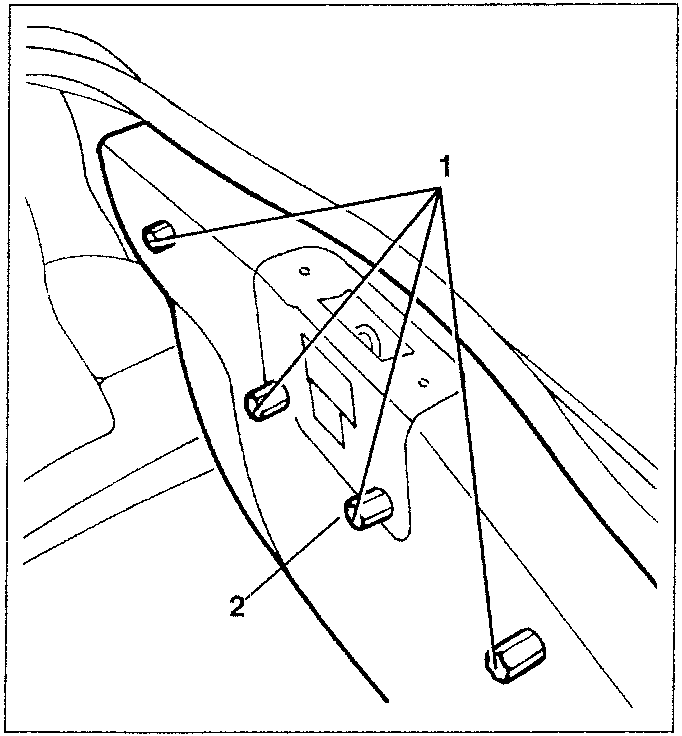

• Open the boot lid and remove the luggage compartment light (see specific paragraph).

1. Slacken the plastic nut.
2. Remove the luggage compartment rear trim.

1. Part 1
2. Part 2

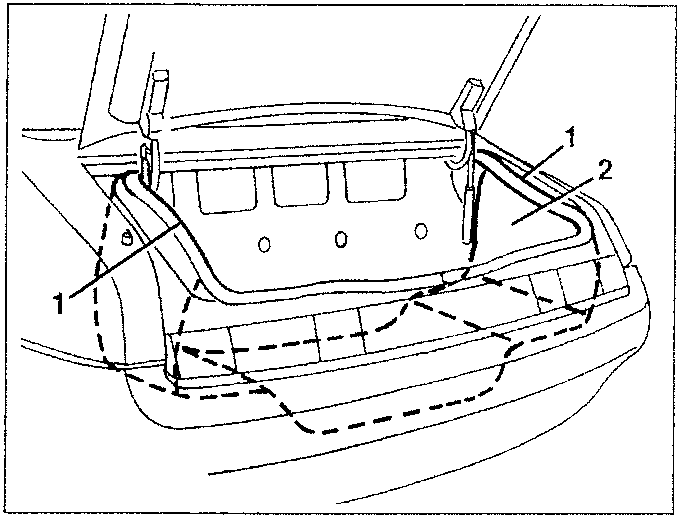

LUGGAGE COMPARTMENT FLOOR TRIM

REMOVAL/REFITTING

• Remove the dorsal panel and the boot inter panel (see specific paragraph).

1. Remove the seal on the sides of the luggage compartment
2. Remove the luggage compartment floor trim.

1. Part 1
2. Part 2

FLOOR TRIM

REMOVAL/REFITTING

• Remove the seats (see specific paragraph).
• Remove the heel boards (see specific paragraph).
• Remove the tunnel console (see specific paragraph).
• Remove the centre console (see specific paragraph).

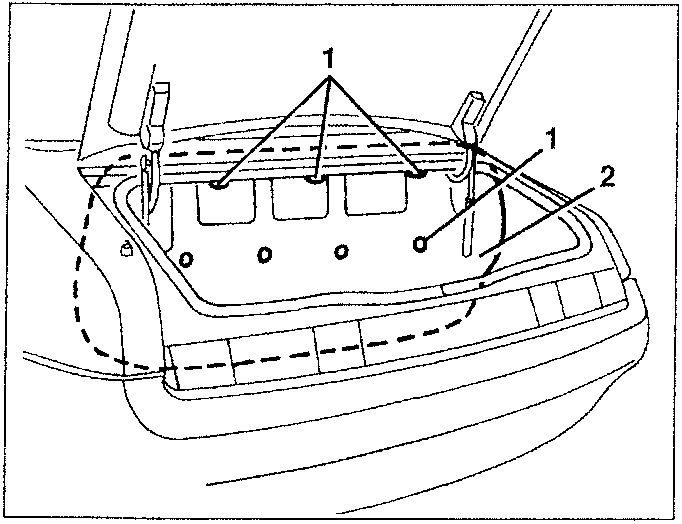

LUGGAGE COMPARTMENT INTERIOR TRIM

REMOVAL/REFITTING

• Open the boot lid and remove everything from the boot that can prevent removal of the inner trim.

1. Remove the plugs using tool 1.823.015.000
2. Remove the inner trim.

1. Part 1
2. Part 2
