CENTRE CONSOLE

REMOVAL / REFITTING (to '97 versions)

  • Remove the tunnel console (see specific paragraph).

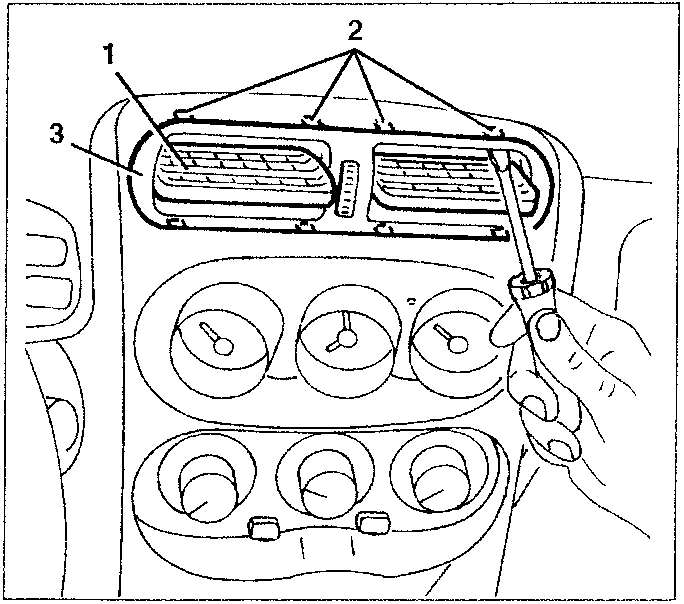

  1. Turn the vents upwards beyond the normal adjustment and moving them to the horizontal position.
  2. Release the upper and lower locking tabs.
  3. Remove the vent unit.
Diagram showing removal of climate control knobs and radio compartment

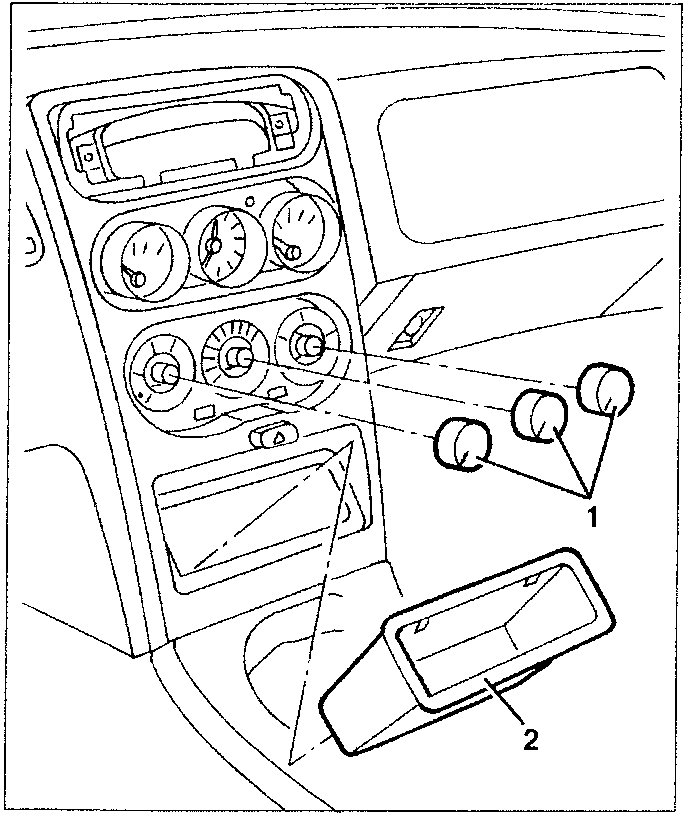

  1. Withdraw and remove the three climate control knobs.
  2. Prise and remove the radio compartment.
Diagram showing removal of bulb holders and connections

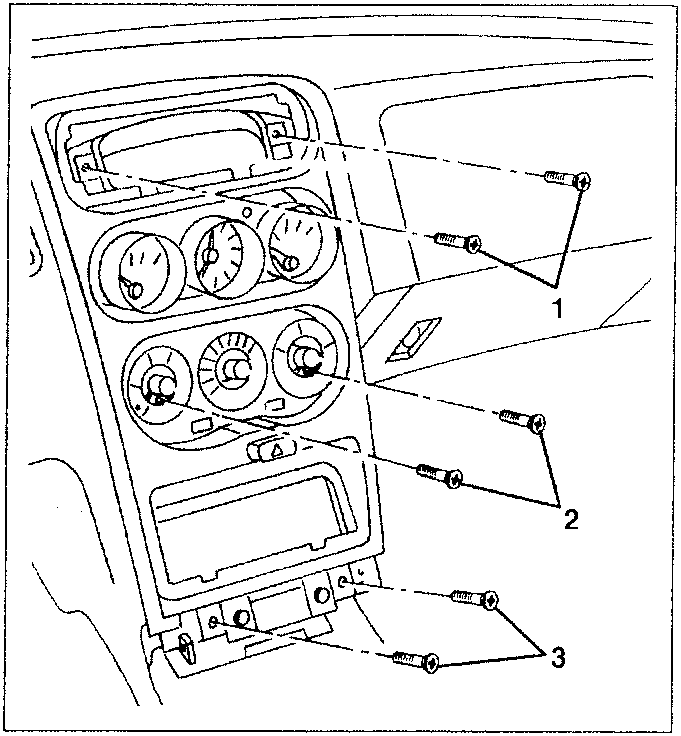

  1. Slacken the two upper screws.
  2. Slacken the two centre screws.
  3. Slacken the two lower screws.
Diagram showing removal of centre console with screw locations

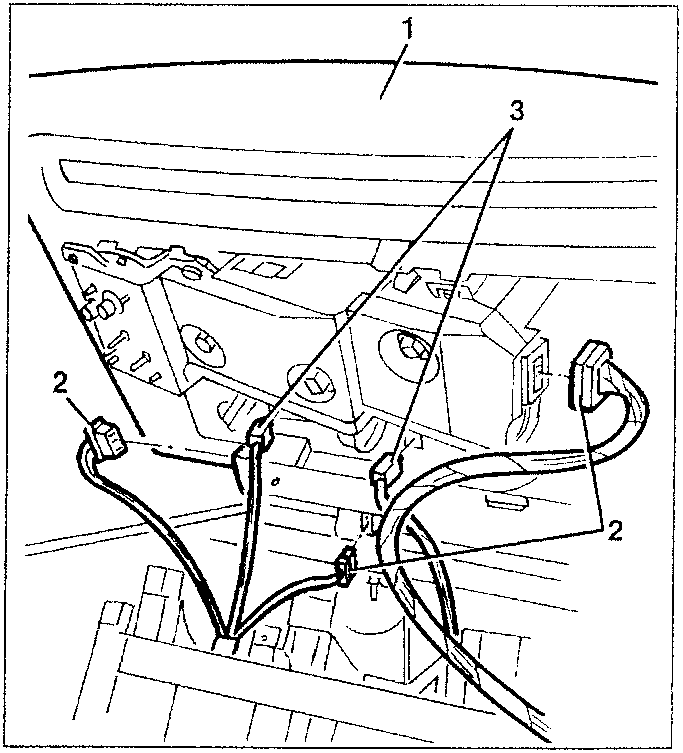

  1. Move aside the centre console.
  2. Disconnect the three connections.
  3. Remove the two bulb holders.
  • Remove the centre console.
Diagram showing refitting of centre console with connections

Refit the centre console reversing the sequence followed for removal.
