70 BodyworkInner rearview mirror
INNER REARVIEW MIRROR
REMOVAL / REFITTING

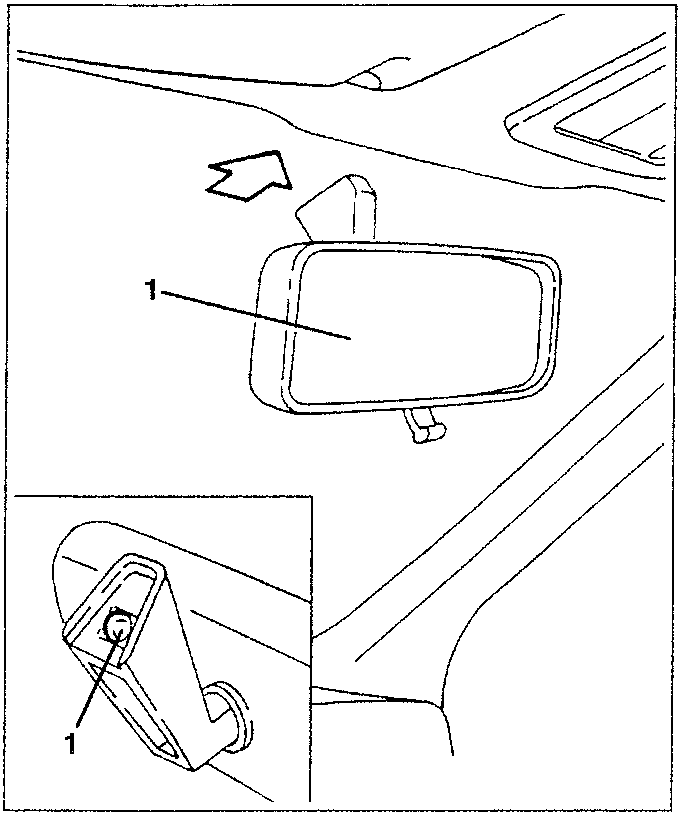

- Remove the inner rearview mirror pushing it upwards overcoming the force of the locking ball.
- part name
HEEL BOARD
REMOVAL / REFITTING

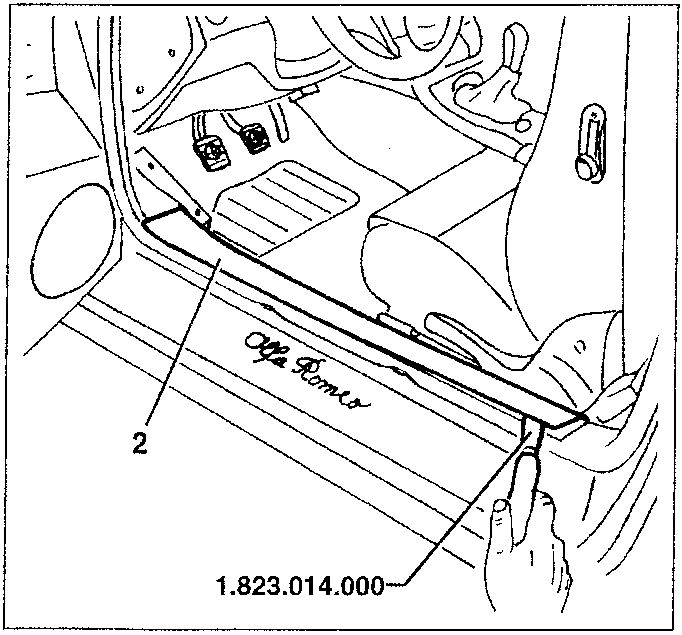

- Using tool N°1.823.014.000 remove the five heel board squares.
- Retrieve the heel board.
- part name

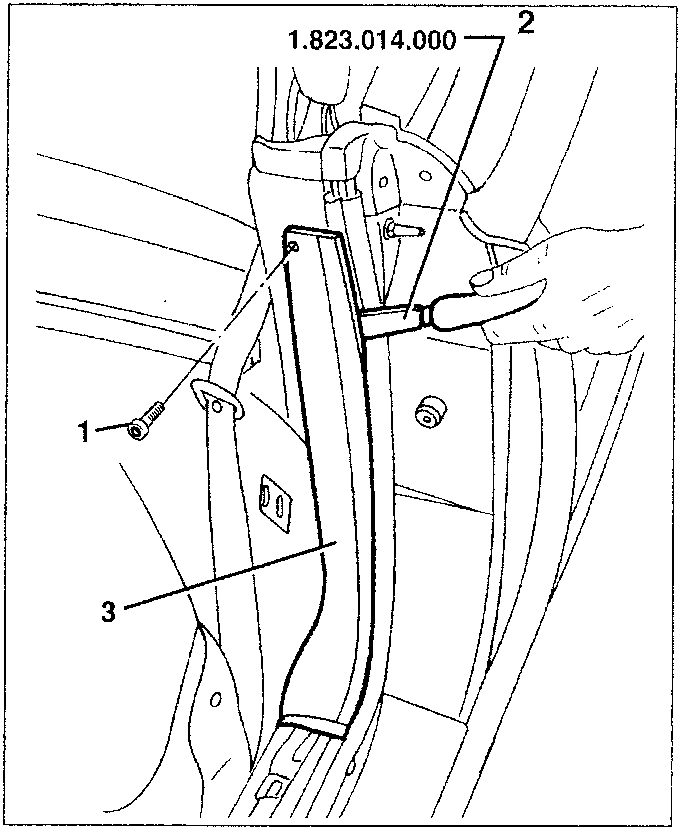

Only for Spider
- Slacken the upper screw.
- Using tool N° 1.823.014.000 remove the four squares of the vertical plate.
- Retrieve the vertical plate.
- part name
OUTER DOOR SURROUND SEAL
REMOVAL / REFITTING
- Withdraw the outer door surround seal from above.
- Withdraw the retainer profile from above
