6.1.04 Front Fog Lamp Assembly

Procedure

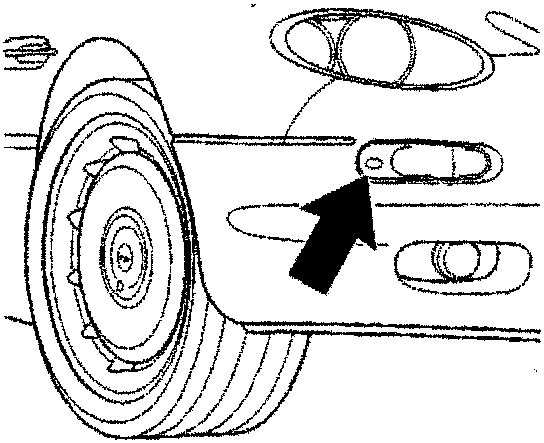

1. Release the single captive screw at the outboard end of the assembly and remove the assembly from the front apron.



2. Disconnect the 2 electrical plugs at the rear of the assembly and remove the lamp unit.

6.1.04 Front Fog Lamp Assembly

Procedure

1. Remove the front apron undertray. Access the rear of the fog light assembly

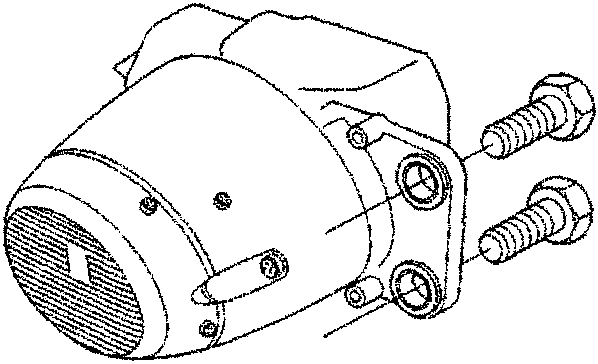

2. Remove two bolts and lower the lamp assembly from its bracket.
3. Disconnect the lamp loom and remove the fog lamp assembly.

6.1.05 Side Repeater Lamps

Procedure

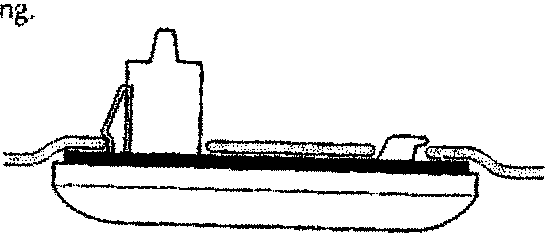

1. Protect the surrounding paintwork and use a screwdriver to lever the assembly from the front wire.



2. Disconnect the wiring at the rear of the lamp and remove the assembly.
