6.7.02 Rear Lamp Cluster

6.7.02 Rear Lamp Cluster

Procedure

1. Remove the rear lamp cluster inner cover.
2. Release the boot rear liner
3. Release the two nuts and one screw securing the rear lamp surround and remove the surround.

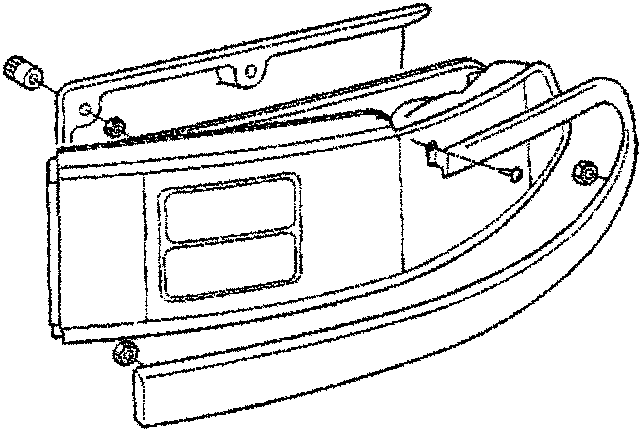

Figure 1. Rear Lamp Cluster

4. Disconnect the rear lamp cluster multi-plug.
5. Remove six nuts from the rear of the assembly and lift out the lamp cluster.

Door Mounted Components

Central Locking System

Description

The central locking system consists of motor operated lock actuators in both doors, the boot and the fuel flap mechanism. The central locking control module is located inside the drivers side 'A' post.

Each motor driven lock actuator incorporates a microswitch which will signal a change of state when any motor runs to drive the actuator. The microswitches are of the changeover type and provide an earth for the lock or unlock signals to the control unit.

The two door lock inputs to the control unit are connected together so that operation of either door lock with the ignition key will simultaneously operate the other door lock. Similarly, the unlock inputs to the control unit are also connected together for simultaneous operation.

The boot will remain locked or will be unlocked simultaneously with the doors dependant on the boot lock position. With the boot key turned clockwise, the boot lock operates in unison with the doors. With the boot key turned anticlockwise, the boot lock cannot be unlocked using the central locking system.

The boot can be opened at any time using the ignition key irrespective of the central locking status.

6.7.03 Door Central Locking Motors

Procedure

1. Remove the door inner panel.
2. Disconnect two plugs on the central locking motor unit and one plug on the door closed switch.
3. Release the interior door catch operating rod from its guide clips and detach it from the lock mechanism.
4. Disconnect the outer lock operating rod.
5. Remove three lock securing screws from the door rear edge.
6. Remove the motor and lock through the access hole.
7. Remove the motor securing screws and remove the motor from the lock assembly.
