6.7.05 Door Mirror Assembly

8. Remove four bolts from the motor bracket and one from the forward end of the lower elevator rail.

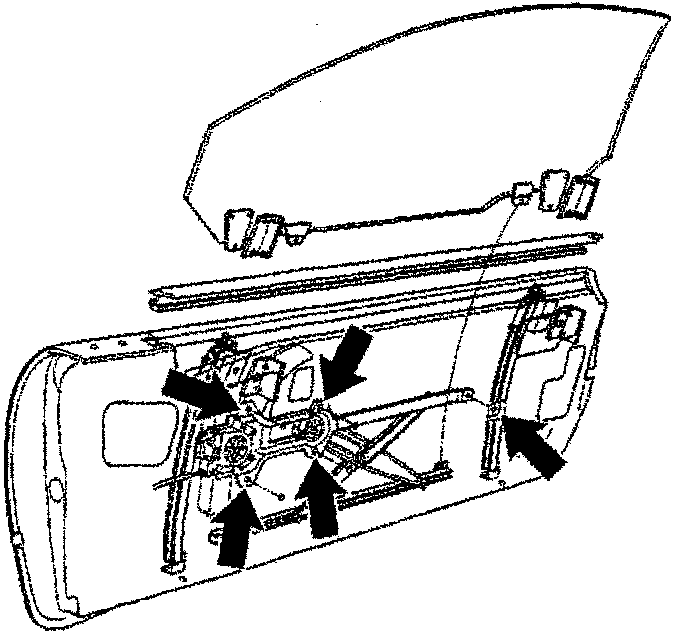

Figure 2. Motor and Elevator Securing Screws

9. Lift out the elevator assembly through the door top.

6.7.05 Door Mirror Assembly

Procedure

1. Remove the door interior trim panel and disconnect the door mirror switch.
2. Disconnect the door mirror harness plug, noting the correct connection. Release the door mirror loom from its clips.

Note: Two plugs are fitted in the door loom, one for left and one for right hand doors. Ensure that the correct plug is connected on reassembly.

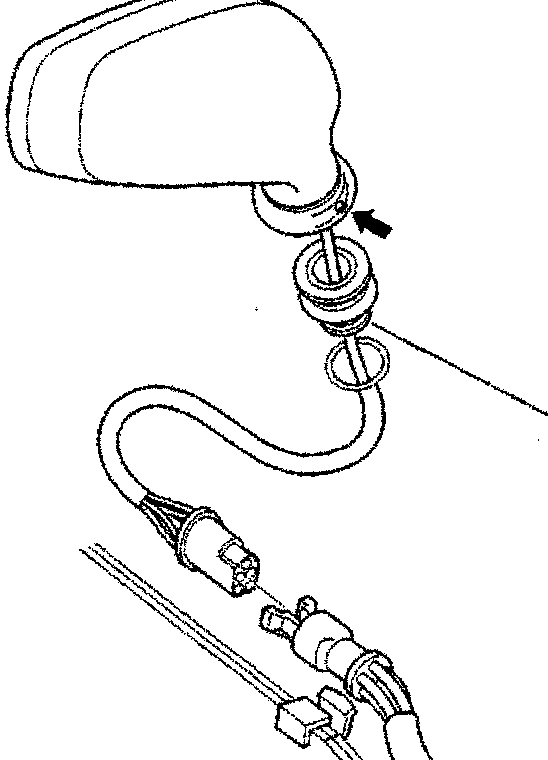

Figure 1. Door Mirror Assembly

3. On the outside of the door, lift the sealing ring on the mirror mount and release one grub screw securing the mirror.
4. Remove the mirror from the door.
5. Remove the door mirror adaptor ring from the door to permit the mirror wiring socket to pass through the mounting hole and then remove the mirror.
