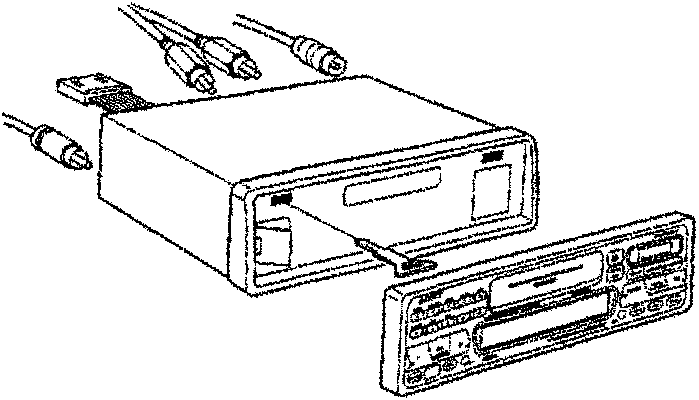

6.5.05 Radio

6.5.05 Radio

Procedure

1. Press the release button and remove the radio front control panel.
2. Insert the radio removal tool into the slots in the top edge of the radio body to release the catches. Pull forward on the radio and remove it from the centre console.
3. Disconnect the speaker, CD, aerial, power and earth connectors.

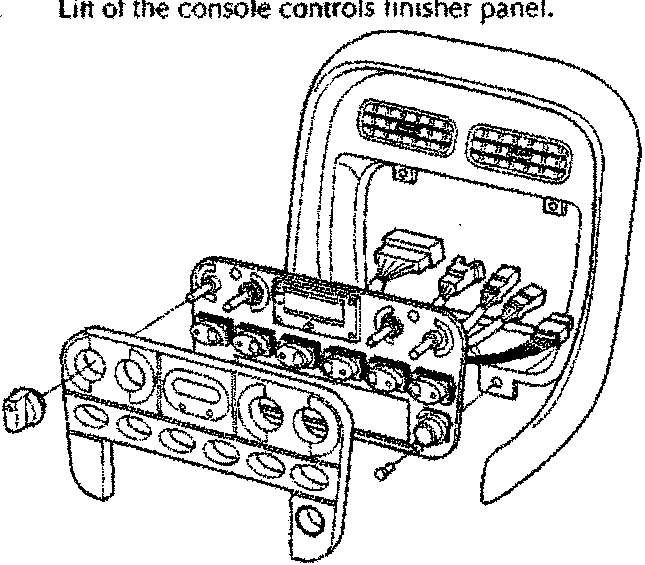

6.5.06 Air Conditioning and Switch Panel

Procedure

1. Remove the radio.
2. Pull off the air conditioning control knobs.
3. Lift of the console controls finisher panel.
4. Remove four screws and pull forward the centre console control panel.
5. Disconnect the five connectors in the centre console wiring and remove the centre console control panel.
