6.5.08 Seat Control Switch Panels

Procedure

1. Protect the wood finisher around the switches.

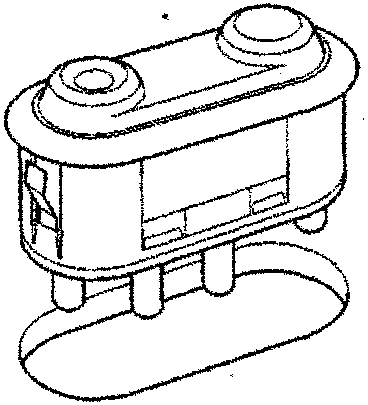

2. Using a suitable lever, raise each end of the switch to release the spring clips.
3. Pull the switch clear of the wood finisher and disconnect the switch wiring.

6.5.08 Seat Control Switch Panels

Procedure

1. Remove the wood trim above the passenger side dash.

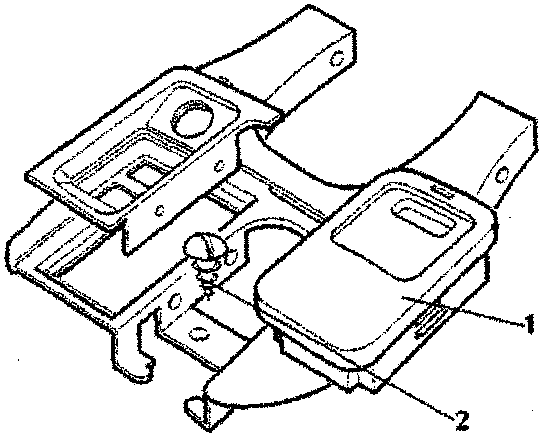

2. Remove the ashtray (Fig 1-1).

3. Remove the gear selector knob.
4. Release the screw in the ashtray well (Fig 1-2) securing the gearshift and centre console surround.
5. Raise the console surround and support it to gain access to the seat control panel.
6. Disconnect the multi-plug in the seat switch loom.

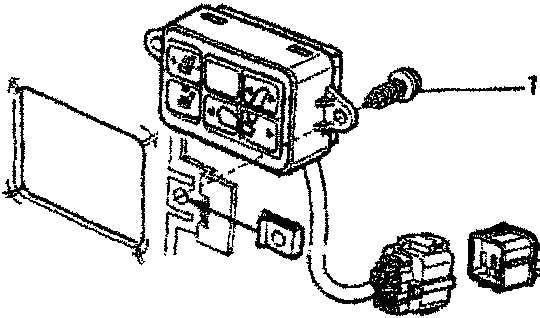

7. Remove 2 screws (Fig 2-1) and the seat control switches.
