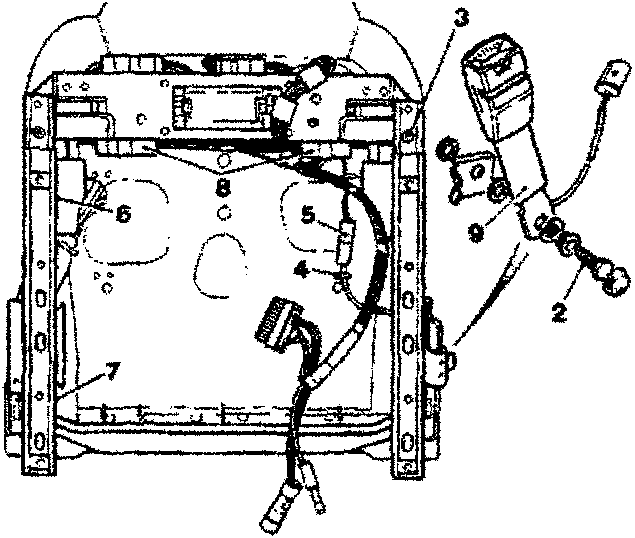

6.6.04 Front Seat Runner Assembly

6.6.04 Front Seat Runner Assembly

Procedure

1. Remove the seat from the car.
2. Cut the tywraps (Fig 1-4) securing the seat belt buckle harness and disconnect the buckle harness plug (Fig 1-5).
3. Position the runner as required and release the bolts (Fig 1-3) securing the front and rear of the seat frame.
4. Release the front harness from its retaining clips and disconnect the multi-plugs (Fig 1-8).
5. Remove the complete seat runner assembly (Fig 1-6).
6. Remove the seat belt bolt trim cover and remove the seat belt bolt (Fig 1-2), buckle and buckle bracket (Fig 1-9).
7. Fit and secure the seat belt buckle to the replacement seat runner assembly.

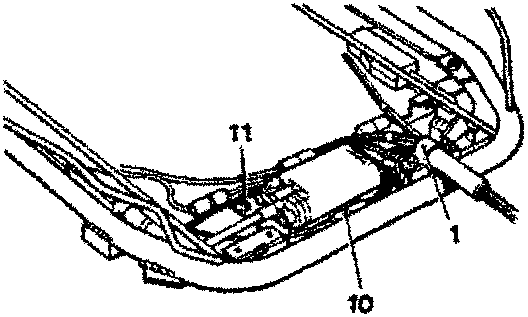

6.6.05 Front Seat Rail Motor

Procedure

1. Remove the seat from the vehicle.
2. Remove the front seat runner assembly from the seat.
3. Remove the seat harness clamp (Fig 1-1).
4. Disconnect the seat rail motor plug (Fig 1-10).
