6.6.01 Front Interior Lamps

6.6.01 Front Interior Lamps

Procedure

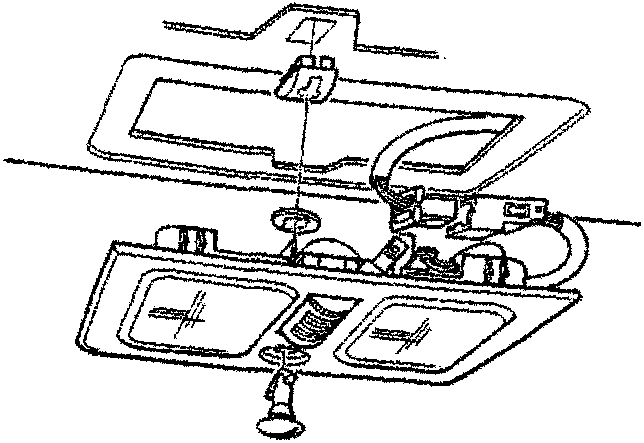

1. Release the quarter turn fastener on the front interior light assembly and lower the assembly from the roof liner.

1. Disconnect the interior lamp plug and remove the interior lamp assembly.

6.6.02 Rear Interior Lamps

Procedure

1. Release the rear upper trim panel.
2. Remove two spire washers and the rear interior lamp assembly.

1. Disconnect the lamp wiring and remove the lamp assembly.

6.6.03 Front Seat Removal

Procedure

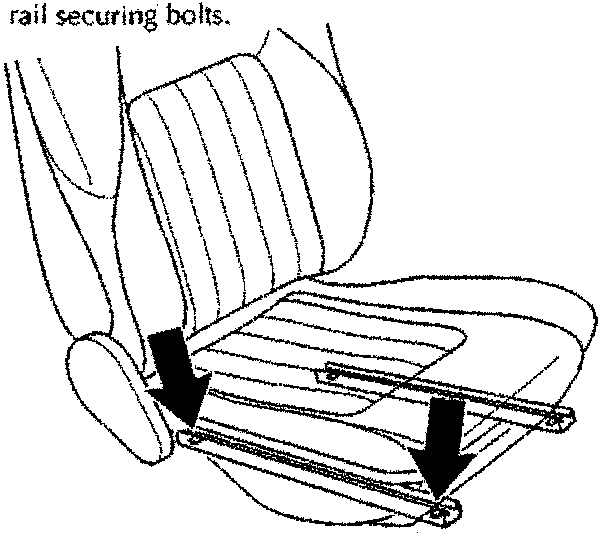

1. Motor the front seat forward and remove the rear securing bolts for the seat rails.
2. Motor the seat to the rear and remove the front seat rail securing bolts.

1. Lift the footwell carpet, release the access plate securing screws and remove the plate to gain access to the seat control unit.
2. Cut and remove the tywraps securing the seat loom.
3. Disconnect the seat harness connectors at the control unit.
4. Remove the seat assembly.
