ElectricsData

Data

Torque Figures
Sensor mounting nut 2-3 Nm

Procedure

  1. Disconnect the battery.
  2. Remove the left rear quarter trim panel to access the
    TCM and barometric pressure sensor
  3. Disconnect the harness multi plug (Fig. 1-3) from the barometric pressure sensor (Fig. 1-4).
  4. Release the two securing clips (Fig. 1-5) and remove the sensor.
  5. Fit the new sensor into position, and secure with the two clips.
  6. Connect the multi plug.
  7. Refit the interior trim.
  8. Reconnect the battery.
Figure

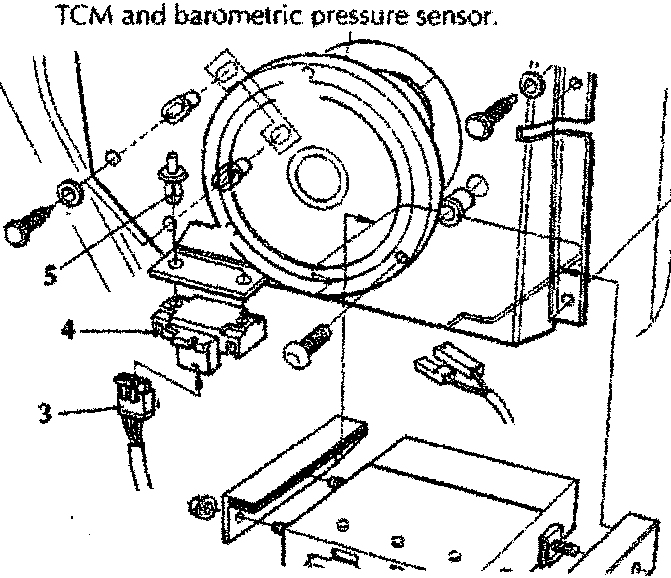

Figure 1
  1. 3 Harness multi plug
  2. 4 Barometric pressure sensor
  3. 5 Securing clips
