6.5.03 Ignition Switch

Make
Aston Martin
Model
DB7 Factory Workshop Manual Volume 2: Electrics, Body and Air Conditioning
Year
1994–1998
Section
Repair procedures › 6.5.03 Ignition Switch
Electrics6.5.03 Ignition Switch

6.5.03 Ignition Switch

Procedure

  1. Disconnect the battery.
  2. Remove three screws and the steering column lower cover.

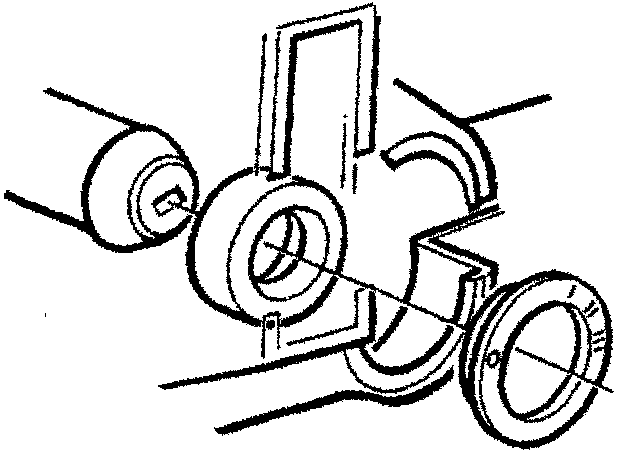

    3. Ignition Switch
  3. Loosen the grub screw securing the switch and ease the switch from its location.
  4. Disconnect the switch multi-plug and remove the switch.

6.5.04 Instrument Panel

Procedure

  1. Disconnect the battery.
  2. Remove the four screws from the instrument panel surround and remove the surround.

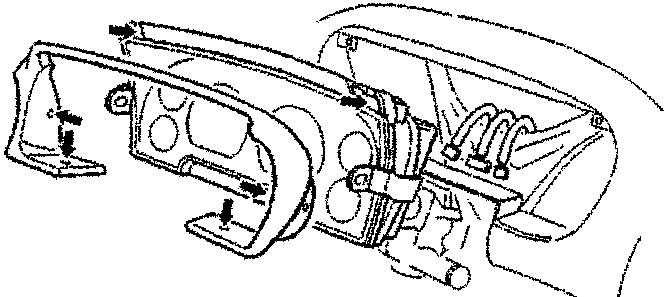

    3. Instrument Panel Removal
  3. Remove two screws from the top edge of the instrument panel and withdraw the panel.
  4. Detach the three electrical connectors and remove the instrument panel.
  5. Panel warning lamps are 1.2W bayonet fit. The larger panel illumination lamps are also 1.2W bayonet fit.
