6.6.07 Seat Recline Motor

Procedure

1. Remove the seat from the car and remove the seat back finisher panel.
2. Disconnect the lumbar motor plug and the lumbar diaphragm air line (Fig 1) and remove the motor.

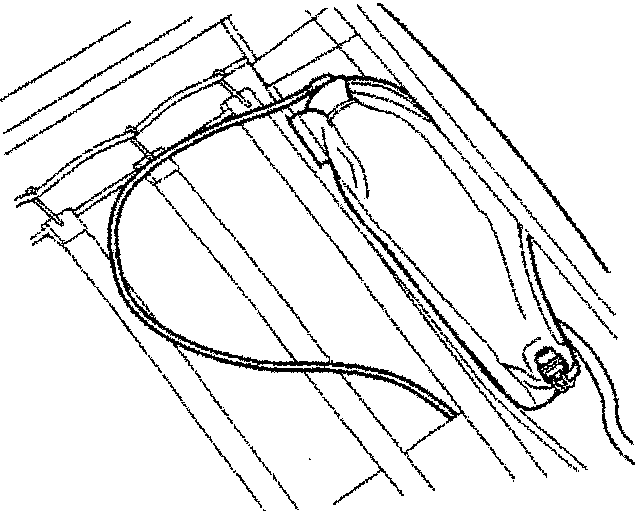

Figure 1. Lumbar Support Motor Removal

6.6.07 Seat Recline Motor

Procedure

1. Remove the seat from the car and remove the seat back finisher panel.
2. Disconnect the recline motor connector.

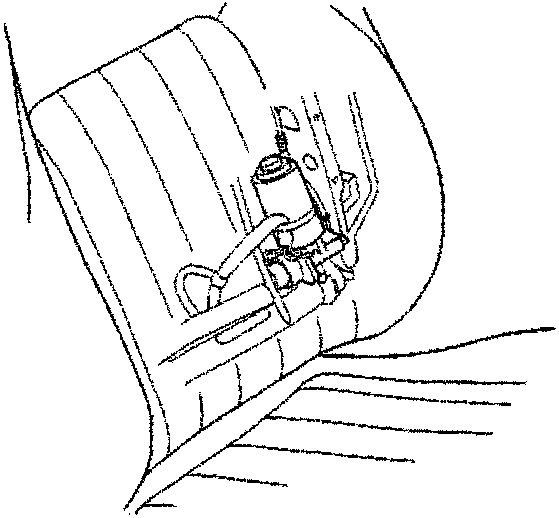

Figure 1. Seat Recline Motor Removal

3. Disconnect the trigger cable from the motor.
4. Loosen two screws and remove the recline motor from its bracket.

6.6.08 Seat Control Unit

Procedure

1. Lift the footwell carpet, release the access plate securing screws and remove the plate to gain access to the seat control unit.

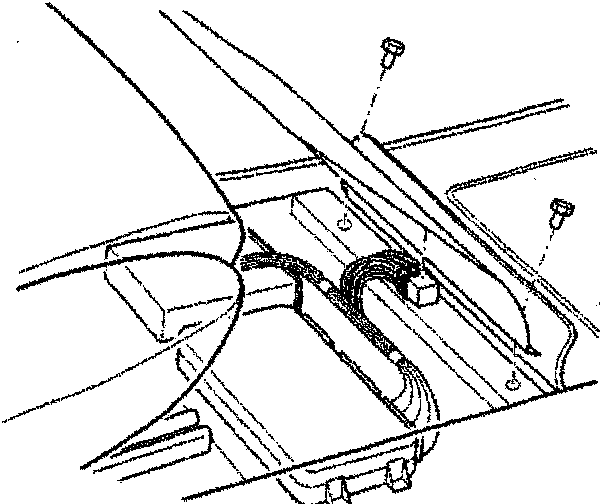

Figure 1. Seat Control Unit Removal

2. Disconnect the multiplug from the control unit.
3. Release the securing screws and remove the seat control unit.

6.7.01 Door Edge Lamps

Procedure

1. Lever the lamp assembly from the door edge, taking precautions to protect the door paintwork.

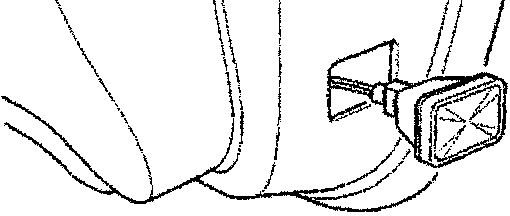

Figure 1. Door Edge Lamp Removal

2. Disconnect the lamp wiring and remove the door edge lamp assembly.
