ENGINE OIL PRESSURE WARNING LIGHT SWITCH - R + R
Removing
- Position the vehicle on a lift.
- Disconnect the negative battery terminal.
| Description | Connector | |
|---|---|---|
| Battery | See A001 BATTERY |

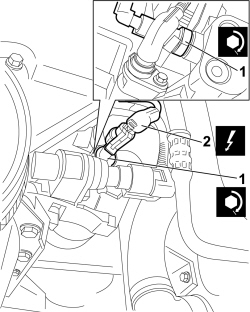

1. Disconnect the electrical connection for the engine oil pressure warning light switch
| Description | Connector | |
|---|---|---|
| 1 | Insufficient engine oil pressure sensor (switch) | See K030 ENGINE OIL PRESSURE SENSOR (SWITCH) |
2. Undo and remove the engine oil warning light switch.
Refitting

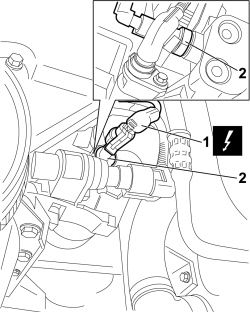

1. Tighten the engine oil pressure warning light switch to torque.
| Component | Fastening | dia | Value (daNm) | Validity |
|---|---|---|---|---|
| Engine oil pressure switch | M14x1.5 | 3.2 | all versions |
2. Disconnect the electrical connection for the engine oil pressure warning light switch
| Description | Connector | |
|---|---|---|
| 2 | Insufficient engine oil pressure sensor (switch) | See K030 ENGINE OIL PRESSURE SENSOR (SWITCH) |
- Lower the lift.
- Connect the negative battery terminal.
| Description | Connector | |
|---|---|---|
| Battery | See A001 BATTERY |
