ENGINE OIL DELIVERY PIPE TO TURBOCHARGER - R + R

Operation 1084B40 · ENGINE OIL LUBRICATION CIRCUIT

1.3 Multijet

Removing

Op. 1048A10 AIR FILTER ASSEMBLY - R.R.

Op. 1048A23 COLD AIR INTAKE FOR AIR FILTER - R.R

Op. 1072C44 EXHAUST MANIFOLD HEAT SHIELD - R+R

Op. 1048B20 AIR SUPPLY HOSE FROM HEAT EXCHANGER TO RIGID PIPE - REPLACE

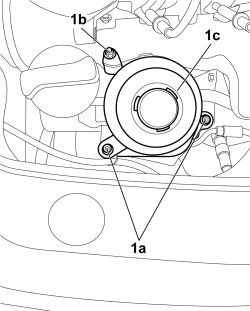

1. Undo bolts (1a) and nut (1b) and remove engine oil filter shield (1c).

1. Undo bolts (1a) and remove engine oil supply pipe to turbocharger (1b).

Refitting

1. Fit the engine oil supply pipe to turbocharger (1a) and tighten bolts (1b) to the recommended torque.

Component	Fastening	dia	Value (daNm)	Validity
Rigid oil drainage pipe from turbocharger to turbine	Bolt	M6x1x14	0.9	1.3 Multijet

- Fit the engine oil filter shield and tighten the bolts and the nut.

Op. 1048B20 AIR SUPPLY HOSE FROM HEAT EXCHANGER TO RIGID PIPE - REPLACE

Op. 1072C44 EXHAUST MANIFOLD HEAT SHIELD - R+R

Op. 1048A23 COLD AIR INTAKE FOR AIR FILTER - R.R

Op. 1048A10 AIR FILTER ASSEMBLY - R.R.
