OIL DIPSTICK PIPE - R.R

Operation 1084A16 · INDICATORS/CHECK DEVICES

1.2 8v

Removing

- Extract the engine oil dipstick from its housing.

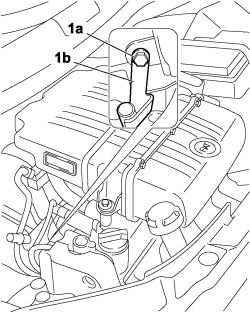

1. Undo the fixing bolt (1a) and remove the engine oil dipstick pipe (1b).

Refitting

- Fit the oil dipstick tube and tighten the retaining bolt.

- Place the engine oil dipstick in its housing.

1.3 Multijet

Removing

Op. 1048A10 AIR FILTER ASSEMBLY - R.R.

1. Release the engine oil dipstick.

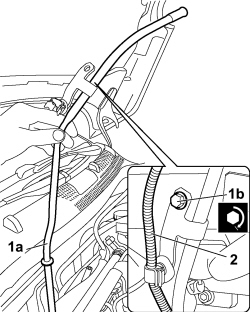

1. Undo the fixing bolt (1a) and release the wiring (1b) from the retaining clip.

2. Remove the engine oil dipstick tube.

Refitting

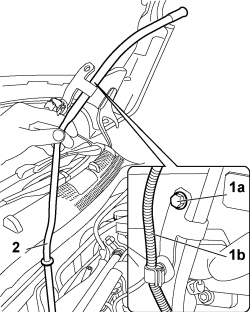

1. Place the engine oil dipstick (1a) in position and tighten the fixing bolt (1b) to the recommended torque.

2. Secure the electrical wiring to the retaining clip.

- Fit the engine oil dipstick.

Op. 1048A10 AIR FILTER ASSEMBLY - R.R.
