HEAT SHIELD ON ENGINE OIL HEAT EXCHANGER - R.R.

Operation 1084C22 · ENGINE OIL COOLING CIRCUIT

1.3 Multijet

Removing

Op. 0010T20 ENGINE COOLANT - CHANGE

Op. 0010T40 CHANGE MANUAL GEARBOX OIL

Op. 1048A10 AIR FILTER ASSEMBLY - R.R.

Op. 1048A23 COLD AIR INTAKE FOR AIR FILTER - R.R

Op. 1084B40 ENGINE OIL DELIVERY PIPE TO TURBOCHARGER - R + R

Op. 1088D10 RADIATOR COOLANT OUTLET HOSE - R.R.

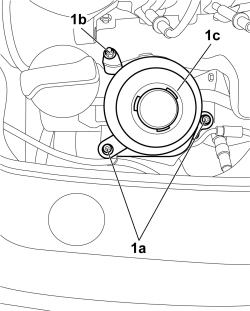

1. Undo the bolts (1a) and the nut (1b) and remove the engine oil filter cover (1c).

- Open the retaining band and release the Lambda sensor wiring.

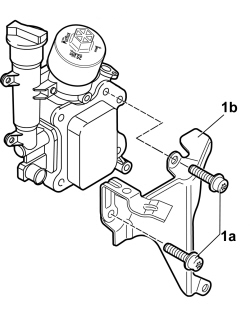

1. Undo the fixing bolts (1a) and remove the guard on the heat exchanger (1b).

Refitting

- Fit the engine oil heat exchanger guard in place and tighten the fixing bolt.

- Secure the wiring for the Lambda sensor to the new retaining band.

- Connect the rigid supply pipe for the engine oil heat exchanger and tighten the fixing bolts.

- Fit the engine oil filter cover in place and tighten the fixing bolt and nut.

Op. 1088D10 RADIATOR COOLANT OUTLET HOSE - R.R.

Op. 1084B40 ENGINE OIL DELIVERY PIPE TO TURBOCHARGER - R + R

Op. 1048A23 COLD AIR INTAKE FOR AIR FILTER - R.R

Op. 1048A10 AIR FILTER ASSEMBLY - R.R.

Op. 0010T40 CHANGE MANUAL GEARBOX OIL

Op. 0010T20 ENGINE COOLANT - CHANGE
