EXHAUST MANIFOLDS

Description 1072C

1.3 Multijet

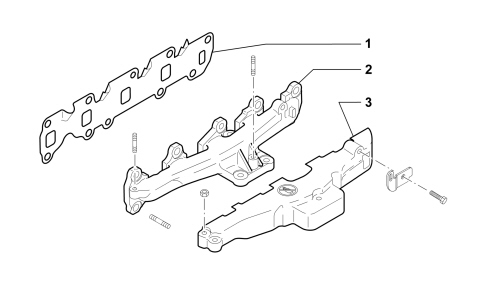

The exhaust manifold is made from cast iron with a steel heat shield fitted on the manifold.

1. Gasket between exhaust manifold and cylinder head

2. Exhaust manifold

3. Heat shield
