INLET MANIFOLDS

Description 1072B

1.3 Multijet

Function

The air capacity chamber is made from plastic. It receives pressurised air cooled by the intercooler and carries it directly to the cylinder head.

The excess pressure sensor is fitted on the chamber.

See descriptions 1060G DIESEL INJECTION PRESSURE PUMP ELECTRONIC CONTROL

connected to the injection control unit, at the manifold intake there is a diffuser for the exhaust gases coming from the E.G.R. valve directed to the cylinders.

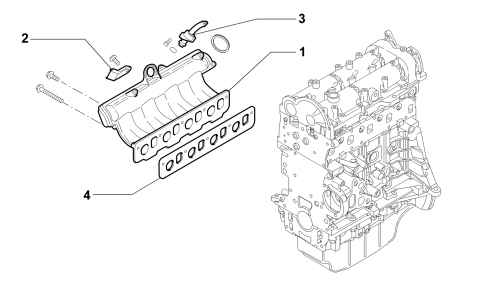

1. Intake manifold

2. Excess pressure sensor

3. Diffuser for EGR valve

4. Gasket
