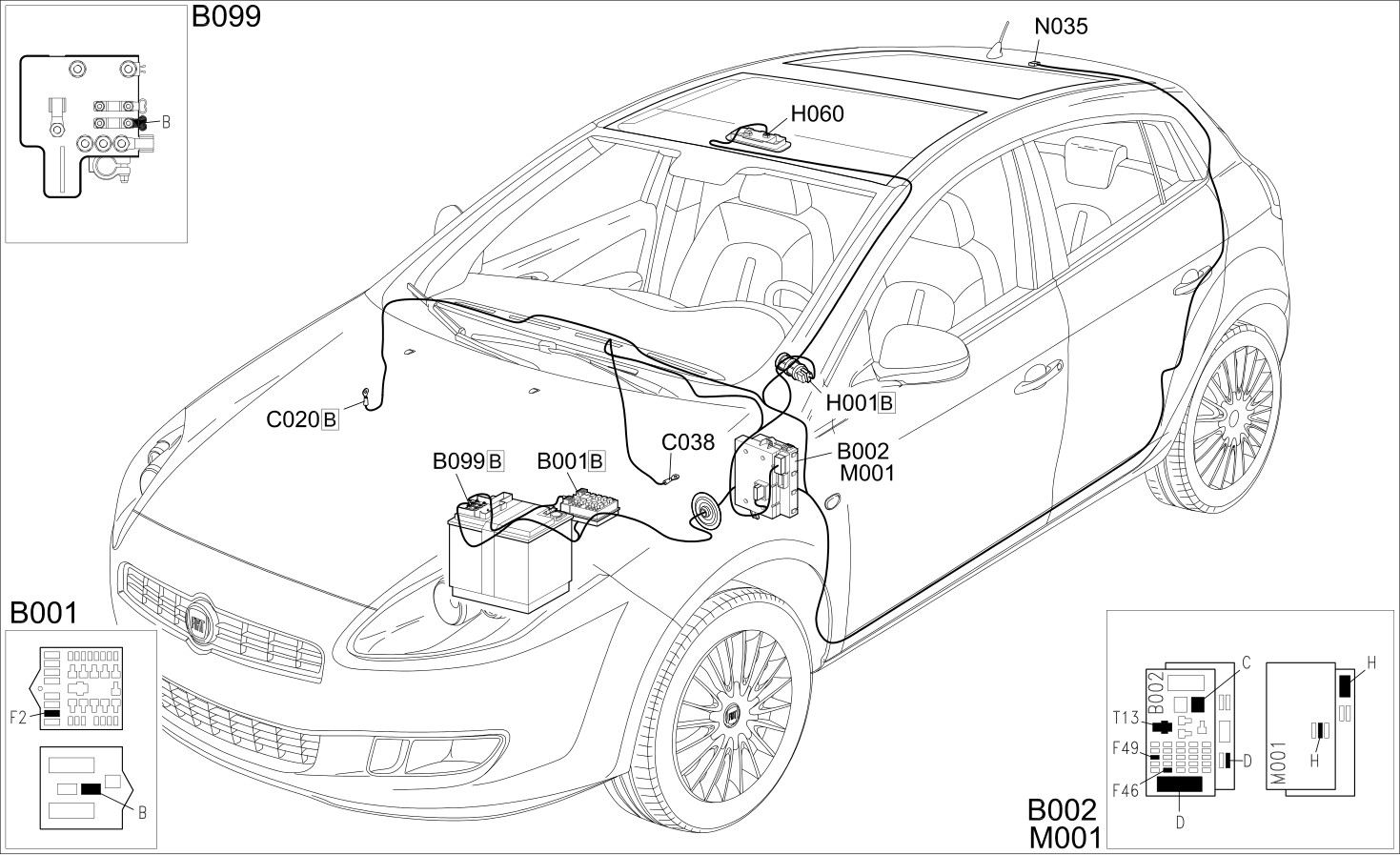

SUN ROOF - COMPONENT LOCATION

COMPONENT LOCATION

Component code	Description	Reference to the operation
B001	JUNCTION UNIT	Op. 5505A13 ADDITIONAL JUNCTION UNIT IN ENGINE COMPARTMENT - R.R.
B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
B099	MAXI FUSE BOX ON BATTERY
C020	PASSENGER SIDE DASHBOARD EARTH
C038	EARTH ON CENTRE TUNNEL
H001	IGNITION SWITCH	Op. 5520A10 IGNITION SWITCH ASSEMBLY - R+R
H060	SUN ROOF SWITCH	Op. 7030B64 SUN ROOF CONTROL SWITCH - R+R
M001	BODY COMPUTER	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
N035	SUN ROOF MOTOR	Op. 7030B70 SUN ROOF MOVEMENT MOTOR - R+R
