CENTRAL LOCKING - COMPONENT LOCATION

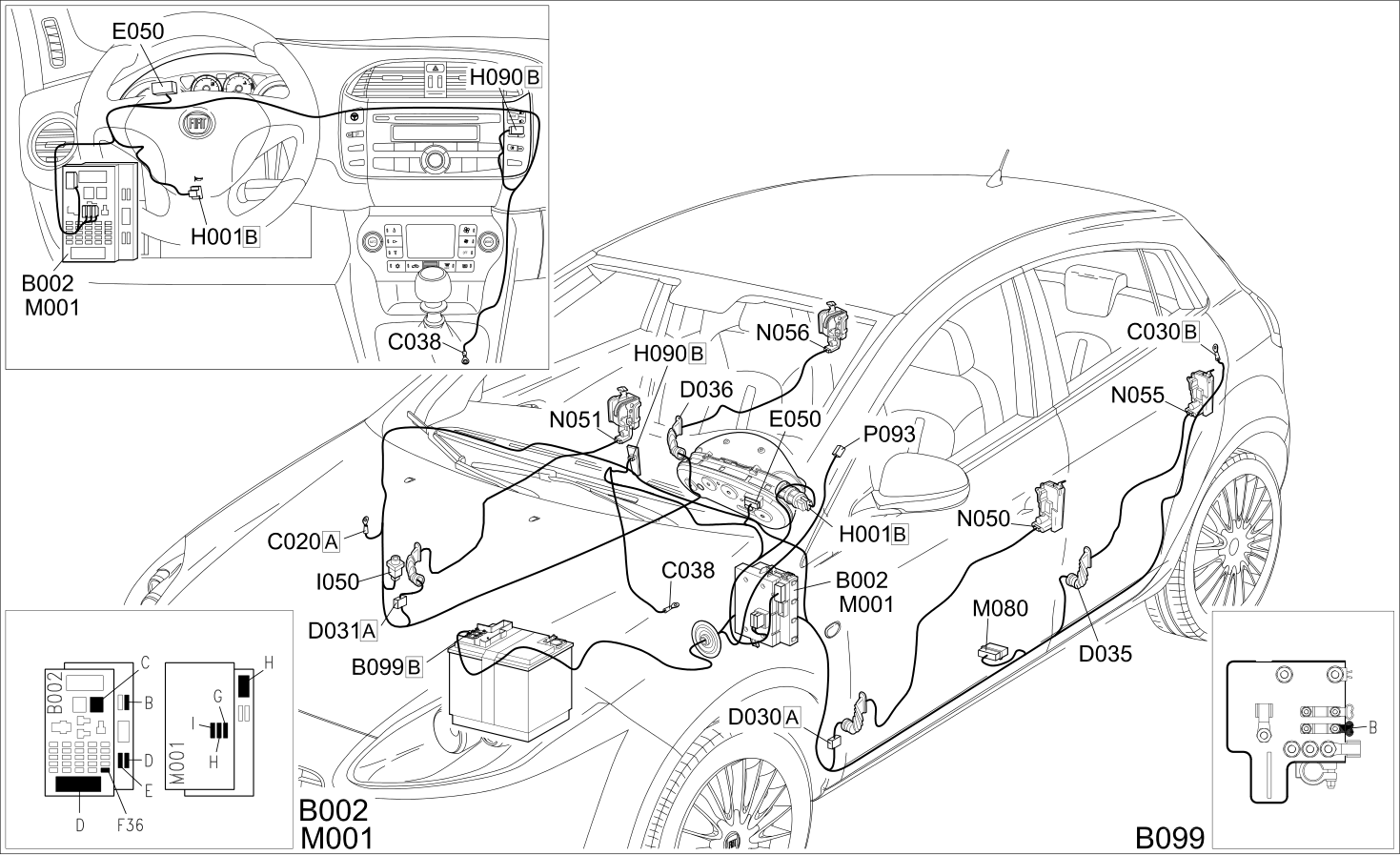

COMPONENT LOCATION

Component code	Description	Reference to the operation
B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
B099	MAXI FUSE BOX ON BATTERY
C020	PASSENGER SIDE DASHBOARD EARTH
C030	LEFT REAR EARTH
C038	EARTH ON CENTRE TUNNEL
D030	DRIVER'S FRONT DOOR COUPLING
D031	PASSENGER FRONT DOOR COUPLING
D035	LEFT REAR DOOR COUPLING
D036	RIGHT REAR DOOR COUPLING
E050	INSTRUMENT PANEL	Op. 5560B10 CONTROL PANEL - R+R
H001	IGNITION SWITCH	Op. 5520A10 IGNITION SWITCH ASSEMBLY - R+R
H090	SWITCH CONTROL PANEL	Op. 7040A56 SWITCH UNIT IN DASHBOARD - R.R.
I050	INERTIA SWITCH	Op. 1040A74 INERTIA SWITCH FOR ELECTRIC PUMP SUPPLY CIRCUIT R + R
M001	BODY COMPUTER	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
M080	CENTRAL DOOR LOCKING CONTROL UNIT	Op. 7005N40 CENTRAL LOCKING ELECTRICAL CONTROL UNIT - R R FOLOWING SYSTEM CHECK
N050	DRIVER'S FRONT DOOR LOCK GEARED MOTOR	Op. 7005N20 FRONT SIDE DOOR LOCK MOTOR/CATCH ASSEMBLY, LEFT OR RIGHT - R.R WITH DOOR PANEL AND SUPPORT FRAME REMOVED
N051	RIGHT FRONT DOOR LOCK GEARED MOTOR	Op. 7005N20 FRONT SIDE DOOR LOCK MOTOR/CATCH ASSEMBLY, LEFT OR RIGHT - R.R WITH DOOR PANEL AND SUPPORT FRAME REMOVED
N055	LEFT REAR DOOR LOCK GEARED MOTOR	Op. 7010N20 REAR SIDE DOOR LOCK MOTOR/CATCH ASSEMBLY - R.R. WITH DOOR PANEL AND SUPPORT FRAME REMOVED
N056	RIGHT REAR DOOR LOCK GEARED MOTOR	Op. 7010N20 REAR SIDE DOOR LOCK MOTOR/CATCH ASSEMBLY - R.R. WITH DOOR PANEL AND SUPPORT FRAME REMOVED
P093	AERIAL FOR ALARM AND CENTRAL LOCKING RECEIVER
