HEATED SEATS - COMPONENT LOCATION

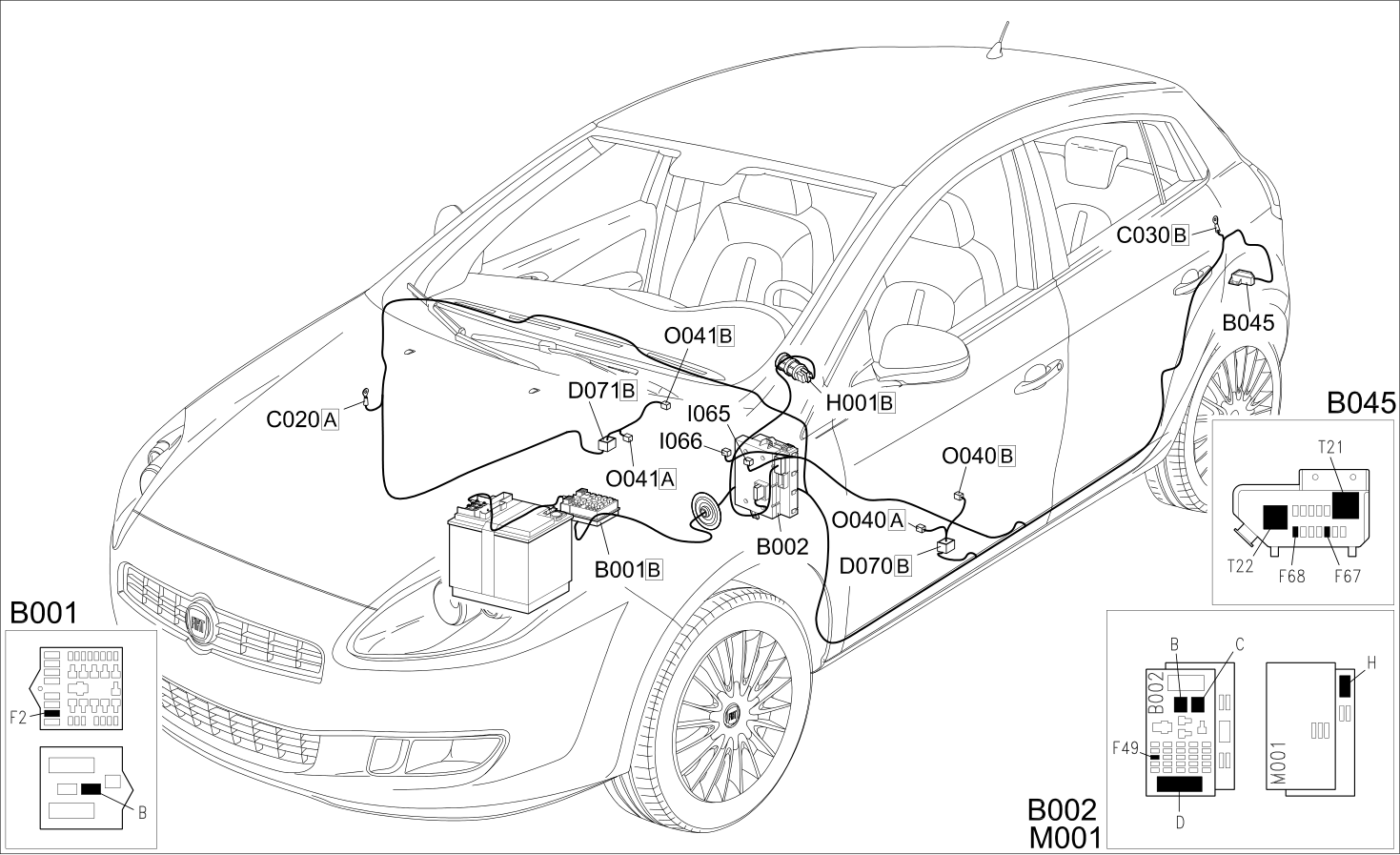

COMPONENT LOCATION

Component code	Description	Reference to the operation
B001	JUNCTION UNIT	Op. 5505A13 ADDITIONAL JUNCTION UNIT IN ENGINE COMPARTMENT - R.R.
B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
B045	LUGGAGE COMPARTMENT JUNCTION UNIT	Op. 5505A14 SUPPLEMENTARY JUNCTION BOX IN LUGGAGE COMPARTMENT - R.R
C020	PASSENGER SIDE DASHBOARD EARTH
C030	LEFT REAR EARTH
D070	DRIVER'S SEAT COUPLING
D071	PASSENGER SEAT COUPLING
H001	IGNITION SWITCH	Op. 5520A10 IGNITION SWITCH ASSEMBLY - R+R
I065	SWITCH FOR DRIVER'S HEATED SEAT	Op. 7045M10 FRONT SEAT HEATING SYSTEM SWITCH, LEFT OR RIGHT - R+R
I066	SWITCH FOR HEATED PASSENGER SEAT	Op. 7045M10 FRONT SEAT HEATING SYSTEM SWITCH, LEFT OR RIGHT - R+R
O040	LEFT SEAT HEATER	Op. 7045M22 HEATER PAD FOR FRONT SEAT CUSHION, LEFT OR RIGHT - R.R. FOLLOWING ELECTRICAL CIRCUIT CHECK Op. 7045M26 FRONT SEAT BACKREST HEATER PAD, LEFT OR RIGHT - R.R. FOLLOWING ELECTRICAL CIRCUIT CHECK
O041	PASSENGER SEAT HEATER	Op. 7045M22 HEATER PAD FOR FRONT SEAT CUSHION, LEFT OR RIGHT - R.R. FOLLOWING ELECTRICAL CIRCUIT CHECK Op. 7045M26 FRONT SEAT BACKREST HEATER PAD, LEFT OR RIGHT - R.R. FOLLOWING ELECTRICAL CIRCUIT CHECK
