Boot opening - wiring diagram

Make

Fiat

Model

Bravo Factory Service Manual

Year

2007–2014

Section

Electrically activated devices › Boot opening - wiring diagram

Wiring diagrams and electrical functionsBoot opening - wiring diagram

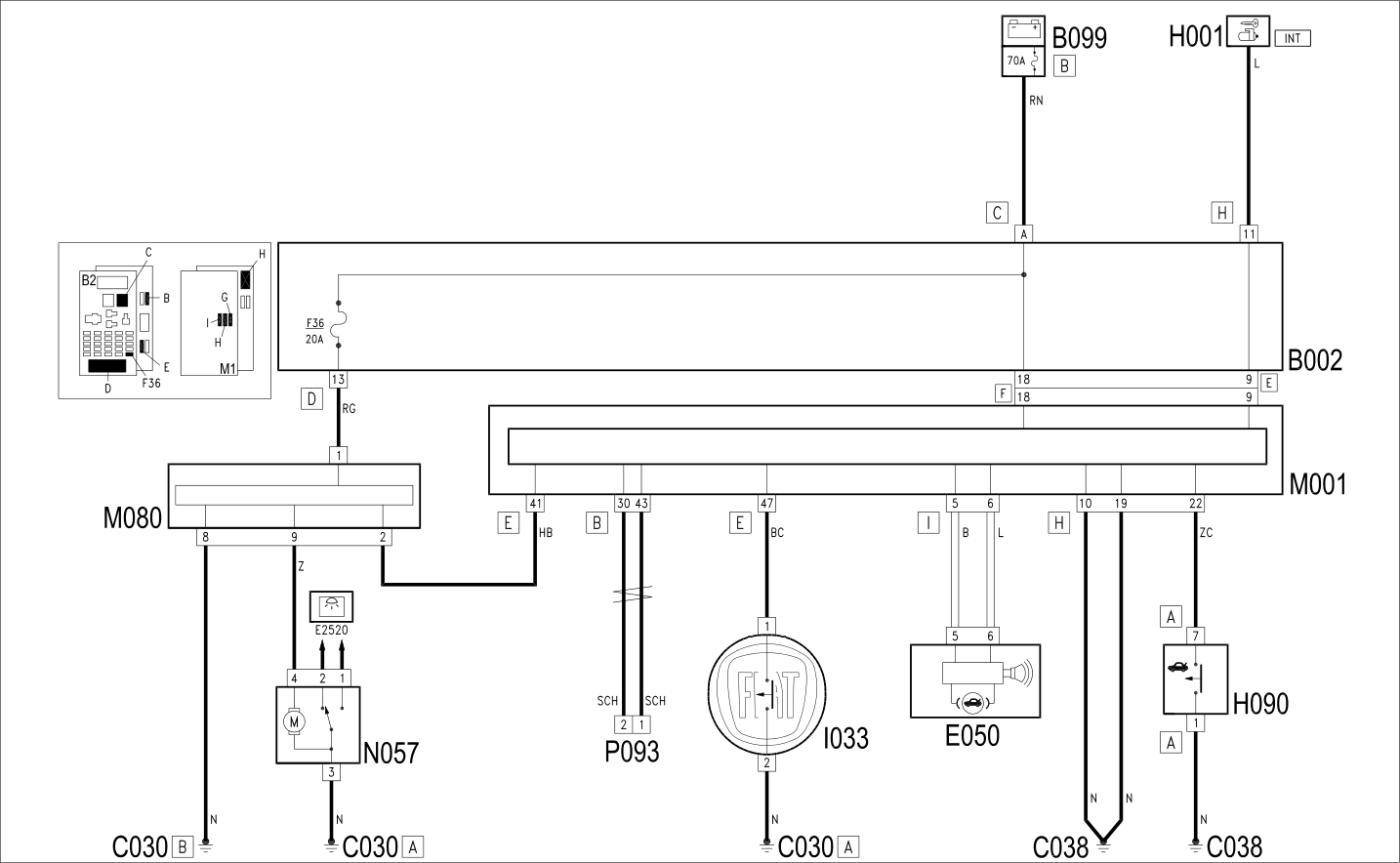

BOOT OPENING - WIRING DIAGRAM

WIRING DIAGRAM

COMPONENTS

Component code	Description	Reference to the operation
B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
B099	MAXI FUSE BOX ON BATTERY
C030	LEFT REAR EARTH
C038	EARTH ON CENTRE TUNNEL
E050	INSTRUMENT PANEL	Op. 5560B10 CONTROL PANEL - R+R
H001	IGNITION SWITCH	Op. 5520A10 IGNITION SWITCH ASSEMBLY - R+R
H090	SWITCH CONTROL PANEL	Op. 7040A56 SWITCH UNIT IN DASHBOARD - R.R.
I033	SWITCH ON BOOT OUTER HANDLE	Op. 7015B48 TAILGATE OPENING CONTROL - R.R.
M001	BODY COMPUTER	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
M080	CENTRAL DOOR LOCKING CONTROL UNIT	Op. 7005N40 CENTRAL LOCKING ELECTRICAL CONTROL UNIT - R R FOLOWING SYSTEM CHECK
N057	BOOT LOCK GEARED MOTOR	Op. 7015B10 SINGLE TAILGATE LOCK - R+R OR REPAIR WITH PANEL/PROTECTION REMOVED
P093	AERIAL FOR ALARM AND CENTRAL LOCKING RECEIVER
