CODE - WIRING DIAGRAM

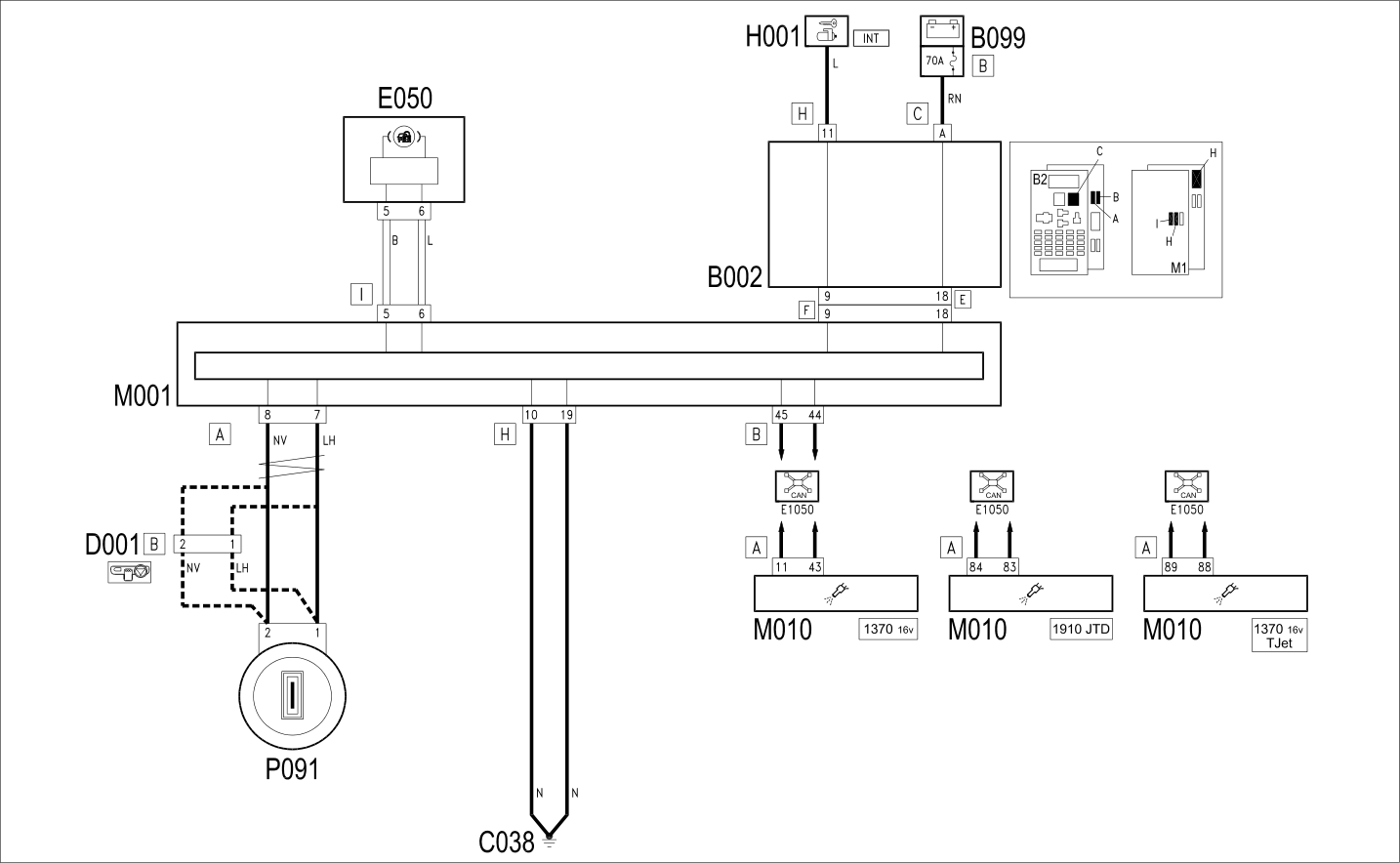

WIRING DIAGRAM

COMPONENTS

B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
B099	MAXI FUSE BOX ON BATTERY
C038	EARTH ON CENTRE TUNNEL
D001	FRONT/DASHBOARD COUPLING
E050	INSTRUMENT PANEL	Op. 5560B10 CONTROL PANEL - R+R
H001	IGNITION SWITCH	Op. 5520A10 IGNITION SWITCH ASSEMBLY - R+R
M001	BODY COMPUTER	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
M010	ENGINE MANAGEMENT ECU	Op. 1056B82 INJECTION/IGNITION SYSTEM E.C.U. (ONE) - R + R Op. 1060G80 DIESEL ELECTRONIC INJECTION CONTROL UNIT - R.R
P091	AERIAL FOR FIAT-CODE	Op. 5580E08 AERIAL FOR ELECTRONIC KEY (CODE) - R.R
