ELECTRIC STEERING - WIRING DIAGRAM

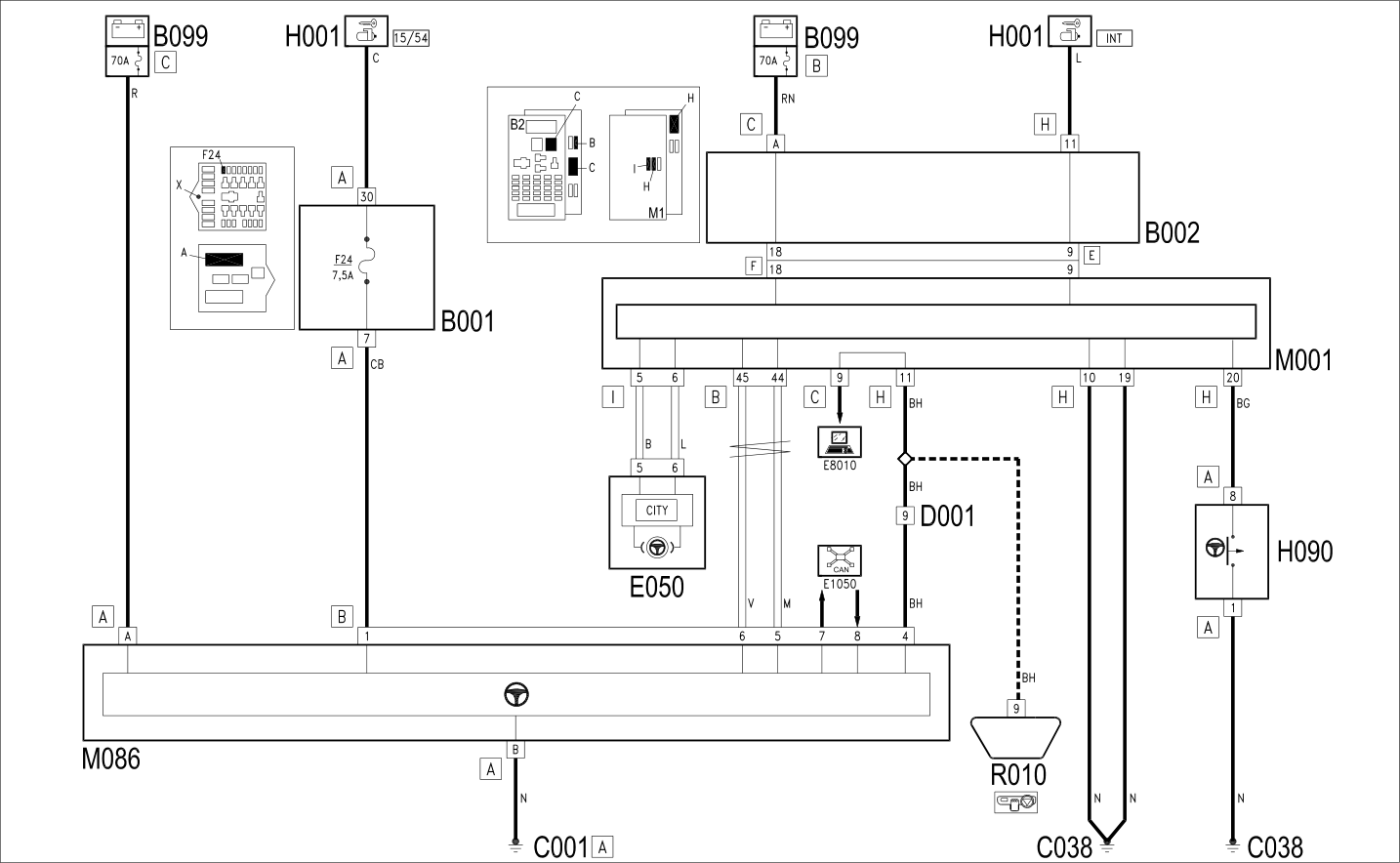

Wiring diagram

Components

Component code	Description	With reference to the assembly
B001	JUNCTION UNIT	Op. 5505A13 ADDITIONAL JUNCTION UNIT IN ENGINE COMPARTMENT - R.R.
B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
B099	MAXI FUSE BOX ON BATTERY
C001	BATTERY EARTH
C038	EARTH ON CENTRE TUNNEL
D001	FRONT/DASHBOARD COUPLING
E050	INSTRUMENT PANEL	Op. 5560B10 CONTROL PANEL - R+R
H001	IGNITION SWITCH	Op. 5520A10 IGNITION SWITCH ASSEMBLY - R+R
H090	SWITCH CONTROL PANEL	Op. 7040A56 SWITCH UNIT IN DASHBOARD - R.R.
M001	BODY COMPUTER	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
M086	ELECTRIC STEERING CONTROL UNIT	Op. 4110D20 STEERING ELECTRICAL CONTROL DEVICE - R R
R010	MULTIPLE TESTER CONNECTION
