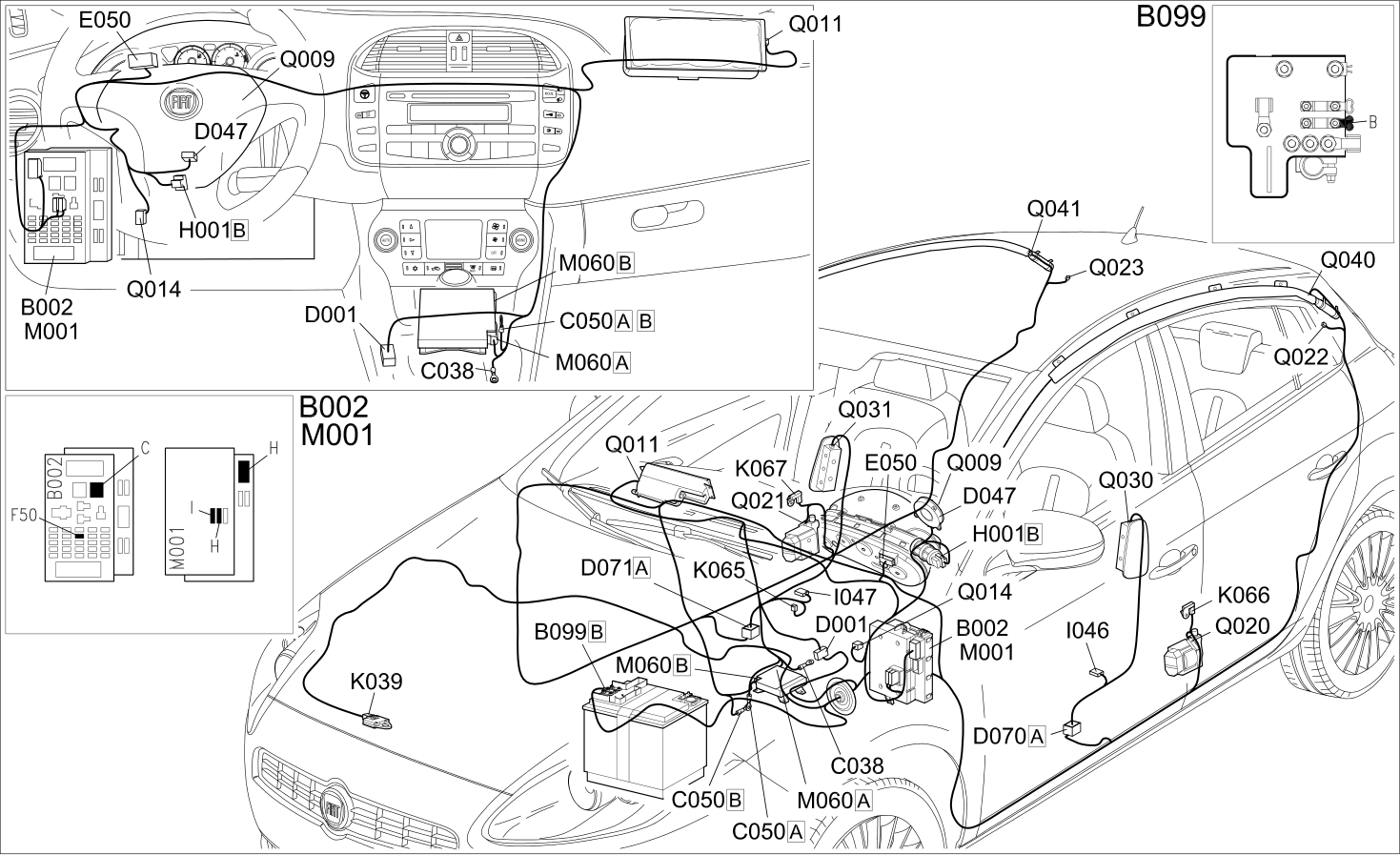

AIR BAG - COMPONENT LOCATION
COMPONENT LOCATION
Component code Description Reference to the operation B002 JUNCTION UNIT UNDER DASHBOARD Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R. B099 MAXI FUSE BOX ON BATTERY C038 EARTH ON CENTRE TUNNEL C050 AIR BAG SYSTEM EARTH D001 FRONT/DASHBOARD COUPLING D047 CLOCK SPRING COUPLING Op. 5550A10 STALK UNIT ASSEMBLY - R+R D070 DRIVER'S SEAT COUPLING D071 PASSENGER SEAT COUPLING E050 INSTRUMENT PANEL Op. 5560B10 CONTROL PANEL - R+R H001 IGNITION SWITCH Op. 5520A10 IGNITION SWITCH ASSEMBLY - R+R I046 DRIVER'S SEAT BELT SWITCH Op. 7065A14 ANCHORAGE ROD FOR, (ONE), FRONT SEAT BELT LEFT OR RIGHT - R.R. I047 PASSENGER SEAT BELT SWITCH Op. 7065A14 ANCHORAGE ROD FOR, (ONE), FRONT SEAT BELT LEFT OR RIGHT - R.R. K039 FRONT AIR BAG SENSOR Op. 5580C10 DECELERATION SENSOR FOR AIR BAG (ONE), L/H OR R/H - R+R K065 PASSENGER PRESENCE SENSOR Op. 7065A34 PASSENGER PRESENCE SENSOR ON FRONT SEAT FOR INDICATING SEATBELT UNFASTENED R R K066 SENSOR FOR DRIVER'S SIDE BAG Op. 5580C40 SIDE BAG SENSOR (ONE), LH OR RH - R.R. K067 SENSOR FOR PASSENGER SIDE BAG Op. 5580C40 SIDE BAG SENSOR (ONE), LH OR RH - R.R. M001 BODY COMPUTER Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R. M060 AIR BAG CONTROL UNIT Op. 5580C14 AIR BAG ECU - R+R Q009 DRIVER'S AIR BAG Op. 5580C18 AIR BAG MODULE - R+R Q011 AIR BAG IN DASHBOARD (PASSENGER SIDE) Op. 5580C22 AIR BAG MODULE - PASSENGER SIDE - R.R Q014 DRIVER'S SIDE KNEE BAG Op. 5580C23 DRIVE SIDE KNEE PROTECTION AIR BAG MODULE R. R. Q020 DRIVER'S SEAT BELT PRETENSIONER Op. 7065A12 FRONT SEAT BELT (ONE), LEFT OR RIGHT, WITH PRETENSIONER ON REEL - R.R Q021 FRONT PASSENGER SEAT BELT PRETENSIONER Op. 7065A12 FRONT SEAT BELT (ONE), LEFT OR RIGHT, WITH PRETENSIONER ON REEL - R.R Q022 LEFT REAR SEAT BELT PRETENSIONER Op. 7065B08 REAR SEAT BELT (ONE) WITH PRETENSIONER ON REEL, LEFT OR RIGHT - R.R. Q023 RIGHT REAR SEAT BELT PRETENSIONER Op. 7065B08 REAR SEAT BELT (ONE) WITH PRETENSIONER ON REEL, LEFT OR RIGHT - R.R. Q030 DRIVER'S SIDE BAG Op. 5580C44 FRONT SIDE BAG MODULE (ONE) LH OR RH - R.R Q031 PASSENGER SIDE BAG Op. 5580C44 FRONT SIDE BAG MODULE (ONE) LH OR RH - R.R Q040 DRIVER'S HEAD BAG Op. 5580C50 WINDOW BAG MODULE (ONE) LH OR RH - R.R Q041 PASSENGER HEAD BAG Op. 5580C50 WINDOW BAG MODULE (ONE) LH OR RH - R.R
