Abs - wiring diagram

Make

Fiat

Model

Bravo Factory Service Manual

Year

2007–2014

Section

Vehicle electronic systems › Abs - wiring diagram

Wiring diagrams and electrical functionsAbs - wiring diagram

ABS - WIRING DIAGRAM

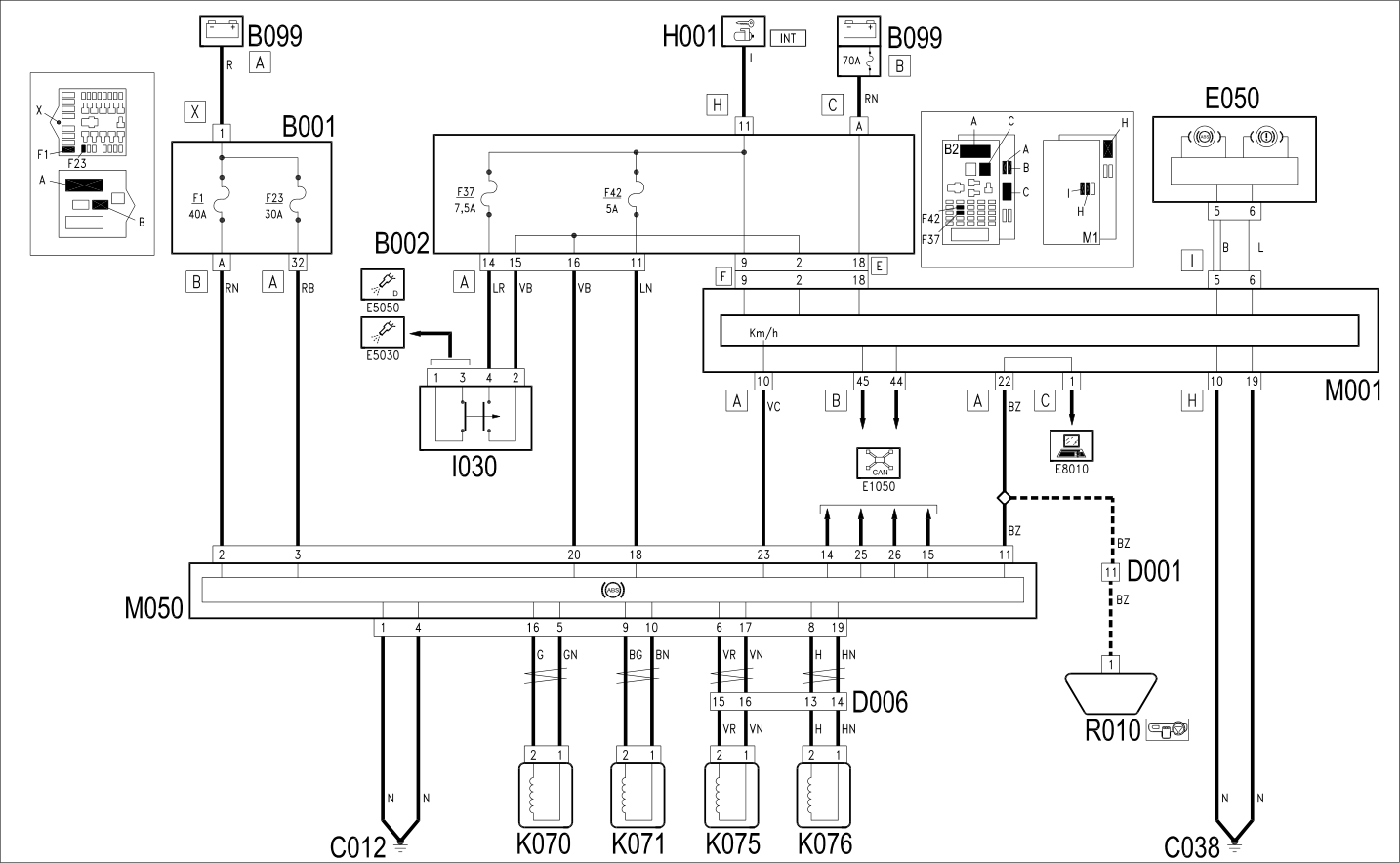

WIRING DIAGRAM

COMPONENTS

Component code	Description	Reference to the operation
B001	JUNCTION UNIT	Op. 5505A13 ADDITIONAL JUNCTION UNIT IN ENGINE COMPARTMENT - R.R.
B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
B099	MAXI FUSE BOX ON BATTERY
C012	ABS FRONT EARTH
C038	EARTH ON CENTRE TUNNEL
D001	FRONT/DASHBOARD COUPLING
D006	FRONT/REAR COUPLING
E050	INSTRUMENT PANEL	Op. 5560B10 CONTROL PANEL - R+R
H001	IGNITION SWITCH	Op. 5520A10 IGNITION SWITCH ASSEMBLY - R+R
I030	BRAKE PEDAL SWITCH	Op. 5550D10 BRAKE LIGHT SWITCH - R+R Op. 1060G38 BRAKE PEDAL SWITCH - R.R
K070	LEFT FRONT WHEEL SENSOR FOR ABS	Op. 3340A30 RPM SENSOR (ONE) FOR ONE FRONT WHEEL, LEFT OR RIGHT - R.R.
K071	RIGHT FRONT WHEEL SENSOR FOR ABS	Op. 3340A30 RPM SENSOR (ONE) FOR ONE FRONT WHEEL, LEFT OR RIGHT - R.R.
K075	LEFT REAR WHEEL SENSOR FOR ABS	Op. 3340A34 LEFT OR RIGHT REAR WHEEL RPM SENSOR (ONE) - R.R.
K076	RIGHT REAR WHEEL SENSOR FOR ABS.	Op. 3340A34 LEFT OR RIGHT REAR WHEEL RPM SENSOR (ONE) - R.R.
M001	BODY COMPUTER	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
M050	ABS CONTROL UNIT	Op. 3340A20 ABS ELECTRONIC CONTROL UNIT - R+R
R010	MULTIPLE TESTER CONNECTION
