CATALYTIC CONVERTER EXCESS TEMPERATURE THERMOCOUPLE - R + R
Removing
- Position the vehicle on a lift.
- Make sure that the ignition key is in the OFF position, then disconnect the battery terminal (-).
| Description | Connector | |
|---|---|---|
| Battery | See A001 BATTERY |

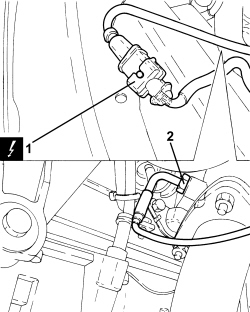

1. Disconnect the electrical connection for the thermal coupling signalling the overheating of the catalytic converter.
| Description | Connector | |
|---|---|---|
| 1 | Upstream particle filter (DPF) temperature sensor | See K189 UPSTREAM PARTICULATE FILTER TEMPERATURE SENSOR (DPF) |
Op. 7055B54 UNDER ENGINE PROTECTION/GUARD - R.R.
2. Undo the catalytic converter overheating thermal coupling and remove it.
Refitting
1. Position the catalytic converter overheating thermal coupling in its housing and tighten it to the recommended torque.
| Component | Fastening | dia | Value (daNm) | Validity |
|---|---|---|---|---|
| Thermal coupling signalling catalytic converter overheating | M14x1.5 | (catalytic converter side) 4.5 | 1.9 JTD 16v 1.9 JTD 8v 2.4 JTD 20v |
Op. 7055B54 UNDER ENGINE PROTECTION/GUARD - R.R.
- Connect the electrical connection for the thermal coupling signalling the overheating of the catalytic converter.
- Connect the negative battery terminal.
- Remove the vehicle from the lift.
