UPPER RADIATOR COOLANT OUTLET HOSE - R.R.

Operation 1088D14 · COOLANT PIPES AND HOSES

2.2

Removing

- Position the vehicle on a lift.

- Make sure that the ignition key is in the OFF position, then disconnect the battery terminal (-).

1. Remove the soundproof cover secured to the engine by three pins.

Op. 7055B54 UNDER ENGINE PROTECTION/GUARD - R.R.

1. Unscrew the coolant drain plug from the radiator.

Collect the coolant in a suitable container.

1. Working from beneath the car, loosen the band and disconnect the radiator upper coolant inlet hose, radiator side.

1. Loosen the collar and disconnect the upper coolant input sleeve to the radiator, thermostat side.

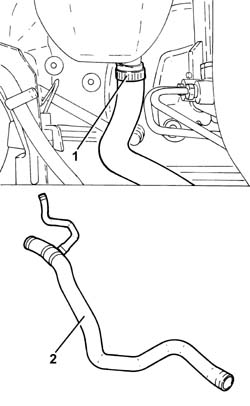

1. Loosen the band and disconnect the upper radiator coolant inlet hose, tank feed side.

2. Remove the radiator upper coolant inlet hose assembly.

Refitting

- Refit the radiator upper coolant inlet hose assembly.

- Connect the upper radiator coolant inlet hose, tank feed side and tighten the band.

- Connect the radiator upper coolant inlet hose, thermostat side, and tighten the band.

- Connect the upper coolant inlet hose to the radiator, radiator side, and tighten the band.

- Tighten the coolant drain plug to the radiator.

Op. 7055B54 UNDER ENGINE PROTECTION/GUARD - R.R.

- Refit the soundproofing cover in its seat and secure to the engine with the three pins.

- Connect the negative battery terminal.

Op. 0010T20 ENGINE COOLANT - CHANGE

- Remove the vehicle from the lift.

1.9 JTD 8v, 1.9 JTD 16v, 2.4 JTD 20v

Removing

Op. 5530B10 BATTERY - R+R

Op. 5530B52 BATTERY SUPPORT/DRIP TRAY - R.R

Op. 7055B54 UNDER ENGINE PROTECTION/GUARD - R.R.

1. Undo the radiator coolant drain plug.

Collect the coolant in a suitable container.

1. Loosen the bands (1a) and remove the radiator upper coolant inlet hose (1b).

Refitting

- Refit the lower coolant outlet hose from the radiator and secure it using the bands.

- Tighten the coolant drain plug to the radiator.

Op. 7055B54 UNDER ENGINE PROTECTION/GUARD - R.R.

Op. 5530B52 BATTERY SUPPORT/DRIP TRAY - R.R

Op. 5530B10 BATTERY - R+R

Op. 0010T20 ENGINE COOLANT - CHANGE

1.8

Removing

Op. 0010T20 ENGINE COOLANT - CHANGE

1. Loosen the band and disconnect the radiator coolant inlet hose, thermostat side.

1. Loosen the band and disconnect the radiator coolant inlet hose, radiator side and remove it.

Refitting

- Place the radiator coolant inlet hose in position, radiator side and tighten the band.

- Connect the radiator coolant inlet hose, thermostat side, and tighten the band.

Op. 0010T20 ENGINE COOLANT - CHANGE
