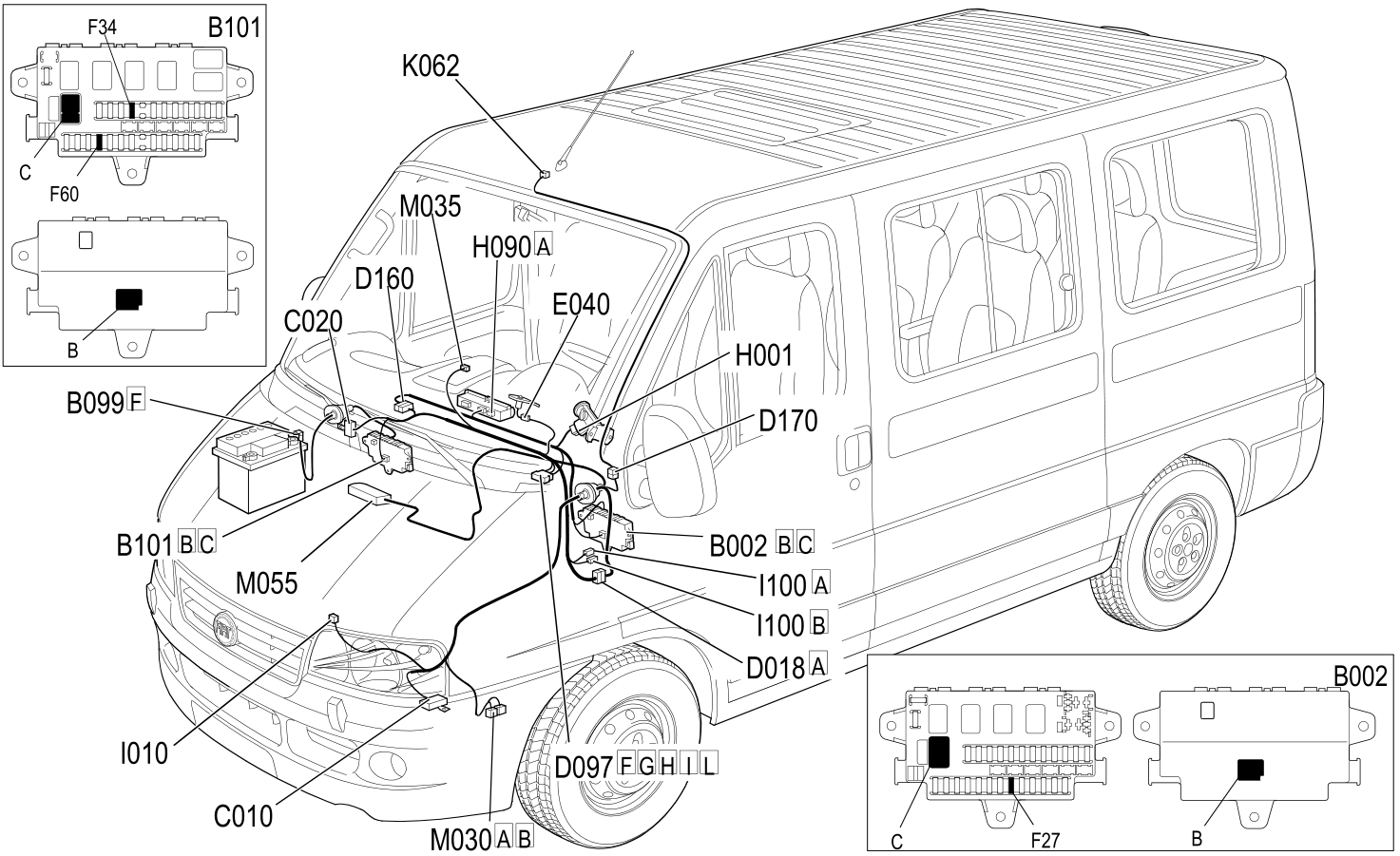

ALARM LOCATION COMPONENTS

Component code	Description	Reference to the assembly
B002	JUNCTION UNIT UNDER DASHBOARD
B099	MAXI FUSE BOX ON BATTERY
B101	OPTIONAL JUNCTION UNIT UNDER THE DASHBOARD
C010	LEFT FRONT EARTH
D018	ADDITIONAL FRONT/DASHBOARD COUPLING
D097	SHORT CIRCUITING COUPLING
D160	DASHBOARD/OPTIONAL DASHBOARD COUPLING
D170	FRONT/OPTIONAL COURTESY LIGHT COUPLING
E040	ALARM LED
H090	SWITCH CONTROL PANEL
I010	BONNET RELEASE SWITCH
I100	REMOTE KEY FOR DISABLING ANTI-THEFT DEVICE
M030
M035	ALARM REMOTE CONTROL RECEIVER
M055	AUTOMATIC TRANSMISSION CONTROL UNIT
