ABS COMPONENTS LOCATION

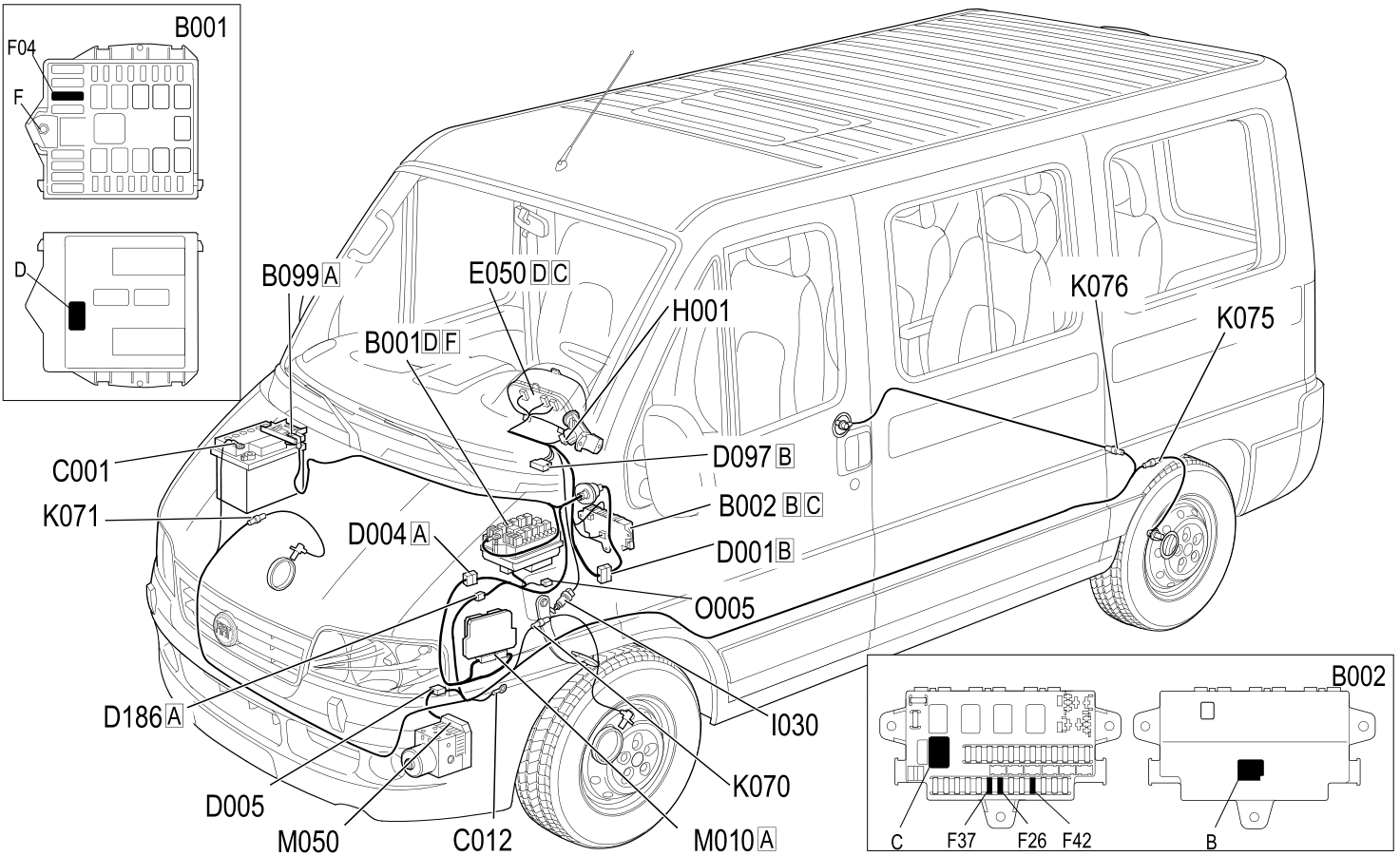

2.8 JTD 8V

Component location

Component code	Description	Reference to the assembly
B001	JUNCTION UNIT	5505A
B002	JUNCTION UNIT UNDER DASHBOARD
B099	MAXI FUSE BOX ON BATTERY
C001	BATTERY EARTH
C012	ABS FRONT EARTH
D001	FRONT/DASHBOARD COUPLING
D004	FRONT/ENGINE COUPLING
D005	ABS COUPLING
D097	SHORT CIRCUITING COUPLING
D186	FRONT/ABS COUPLING
H001	IGNITION SWITCH	Op. 5520A IGNITION SWITCH
E050	INSTRUMENT PANEL	5560B
I030	BRAKE PEDAL SWITCH
K070	LEFT FRONT WHEEL SENSOR FOR ABS
K071	RIGHT FRONT WHEEL SENSOR FOR ABS
K075	LEFT REAR WHEEL SENSOR FOR ABS
K076	RIGHT REAR WHEEL SENSOR FOR ABS.
M010	ENGINE MANAGEMENT ECU
M050	ABS CONTROL UNIT
O005	LOAD RESISTANCE ON FRONT CABLE

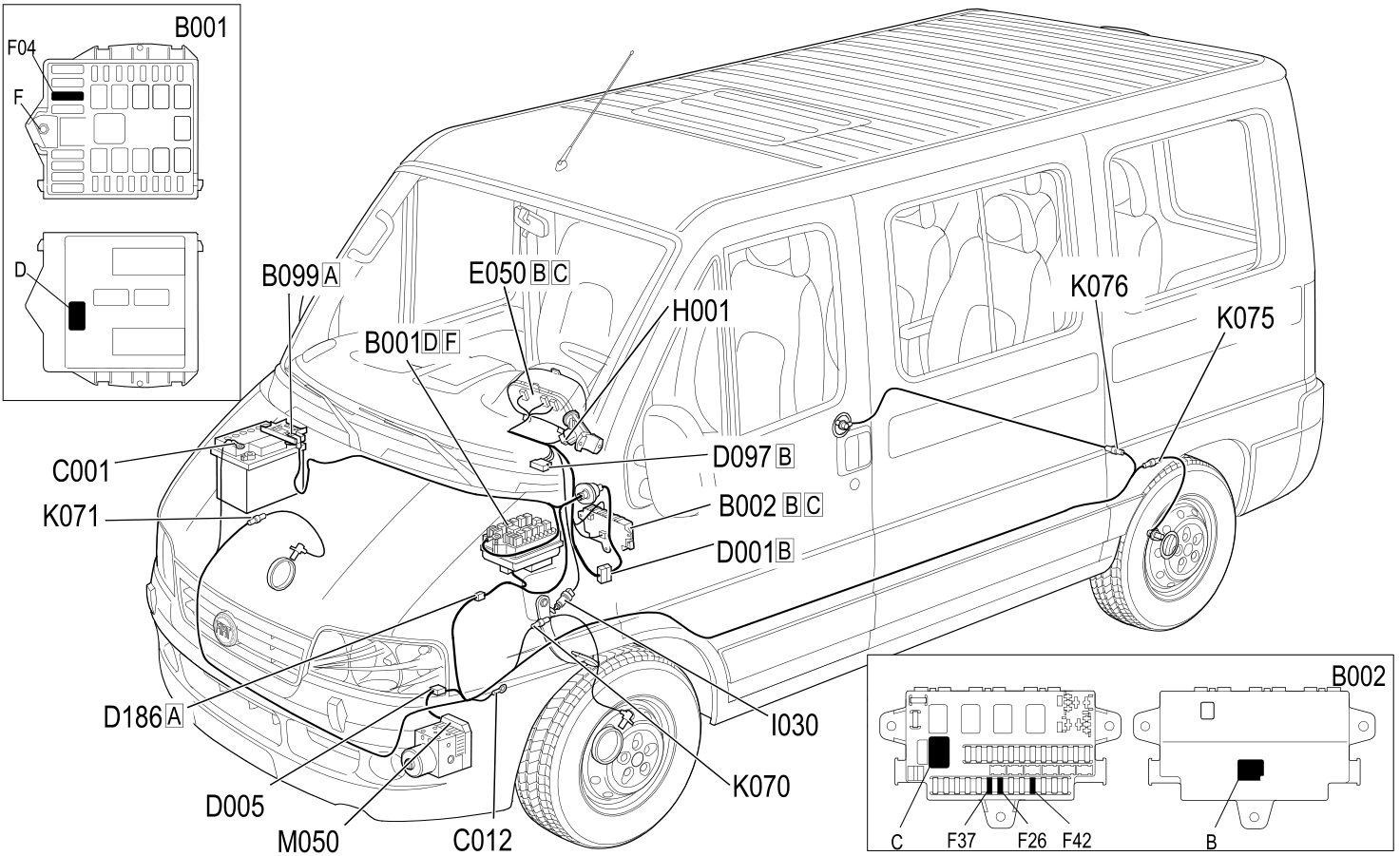

2.8 JTD 8V · Automatic Transmission

Component location

Component code	Description	Reference to the assembly
B001	JUNCTION UNIT	Op. 5505A MULTI-FUNCTION COMPONENTS
B002	JUNCTION UNIT UNDER DASHBOARD
B099	MAXI FUSE BOX ON BATTERY
C001	BATTERY EARTH
C012	ABS FRONT EARTH
D001	FRONT/DASHBOARD COUPLING
D005	ABS COUPLING
D097	SHORT CIRCUITING COUPLING
D186	FRONT/ABS COUPLING
E050	INSTRUMENT PANEL	Op. 5560B ANALOGUE CONTROL PANEL
H001	IGNITION SWITCH	Op. 5520A IGNITION SWITCH
I030	BRAKE PEDAL SWITCH
K070	LEFT FRONT WHEEL SENSOR FOR ABS
K071	RIGHT FRONT WHEEL SENSOR FOR ABS
K075	LEFT REAR WHEEL SENSOR FOR ABS
K076	RIGHT REAR WHEEL SENSOR FOR ABS.
M050	ABS CONTROL UNIT
