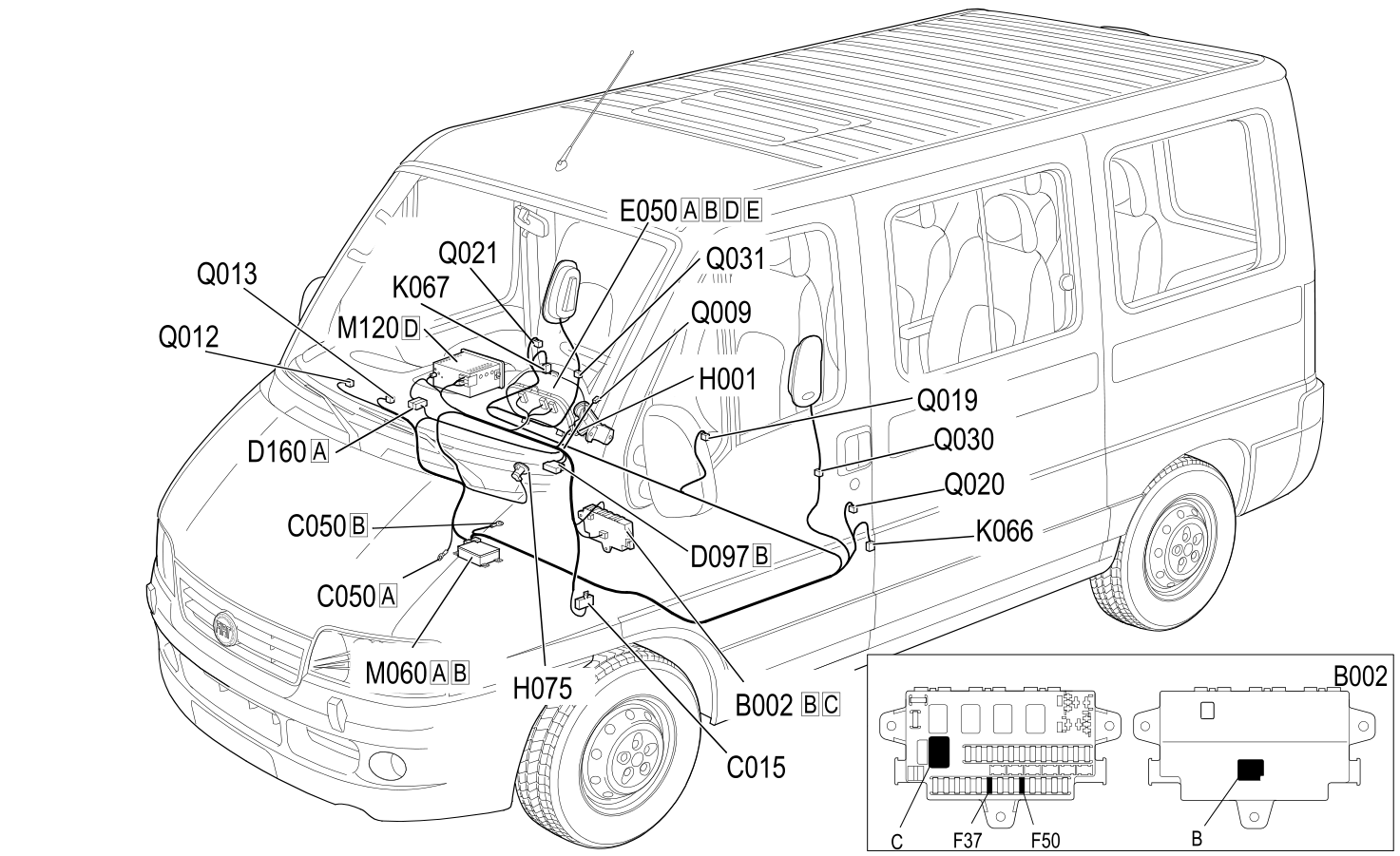

AIR BAG COMPONENTS LOCATION

Component code	Description	Reference to the assembly
B002	JUNCTION UNIT UNDER DASHBOARD
C015	DASHBOARD EARTH, DRIVER'S SIDE
C050	AIR BAG SYSTEM EARTH
D097	SHORT CIRCUITING COUPLING
D160	DASHBOARD/OPTIONAL DASHBOARD COUPLING
E050	INSTRUMENT PANEL	5560B
H001	IGNITION SWITCH	Op. 5520A IGNITION SWITCH
H075	PASSENGER AIR BAG DISABLING SWITCH
K066	SENSOR FOR DRIVER'S SIDE BAG
K067	SENSOR FOR PASSENGER SIDE BAG
M060	AIR BAG CONTROL UNIT
M120	Connect front panel
Q009	DRIVER'S AIR BAG	5580C
Q012	PASSENGER AIR BAG (OUTSIDE)
Q013	PASSENGER AIR BAG (CENTRE)
Q019	CENTRE FRONT SEAT BELT PRETENSIONER
Q020	DRIVER'S SEAT BELT PRETENSIONER
Q021	FRONT PASSENGER SEAT BELT PRETENSIONER
Q030	DRIVER'S SIDE BAG
Q031	PASSENGER SIDE BAG
